Product Details

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 70 mm

Angle (Φ) : 45 to 60

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS15-70-45-NF

*For OC option Please refer to our catalogue

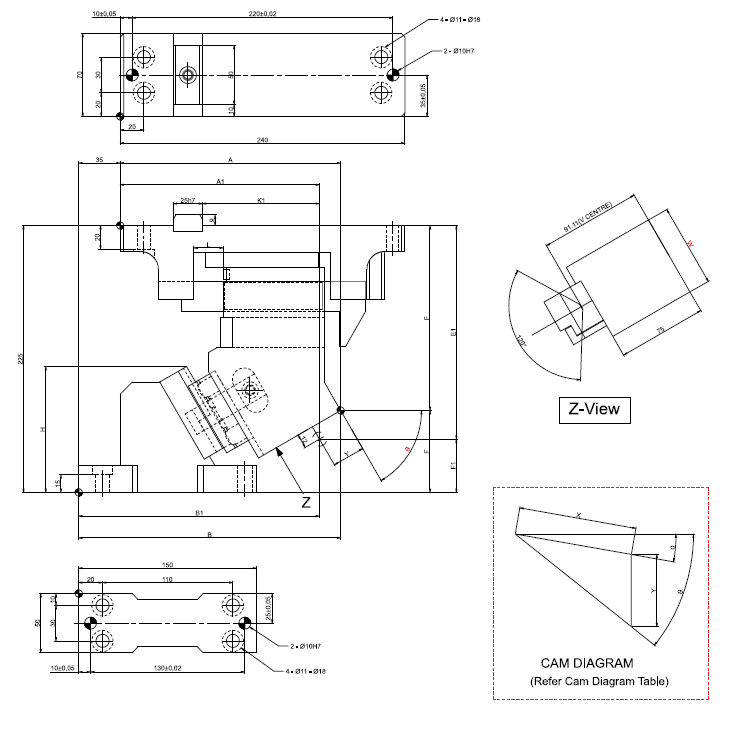

Item Code	W Mm	Angle	a mm	a1 mm	b mm	b1 mm	c mm	E mm	e1 mm	F mm	f1 mm	h mm	K1 Mm	l mm	Y Mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	wt Kg
PCU-CS15-70-45	70	45	198.15	181.4	200.15	183.4	2	131.28	165	93.72	60	96.1	110.5	30	35.68	42.3	69 (7.0)	588 (60.0)	657 (67.0)	98.1 (10.0)	13.8
PCU-CS15-70-50	70	50	190.95	168.09	211.95	189.09	21	135.15	170	89.85	55	104	106	30	39.92	46.7	69 (7.0)	594 (60.6)	657 (67.0)	98.1 (10.0)	13.9
PCU-CS15-70-55	70	55	190.51	170.02	213.51	193.02	23	146	175	79	50	104.8	101.5	25	33.41	43.6	88 (9.0)	521 (53.2)	578 (59.0)	98.1 (10.0)	14.1
PCU-CS15-70-60	70	60	185.81	167.99	220.81	202.99	35	155.86	180	69.14	45	106.3	98.5	25	27.5	50	88 (9.0)	529 (54.0)	578 (59.0)	98.1 (10.0)	14.5
