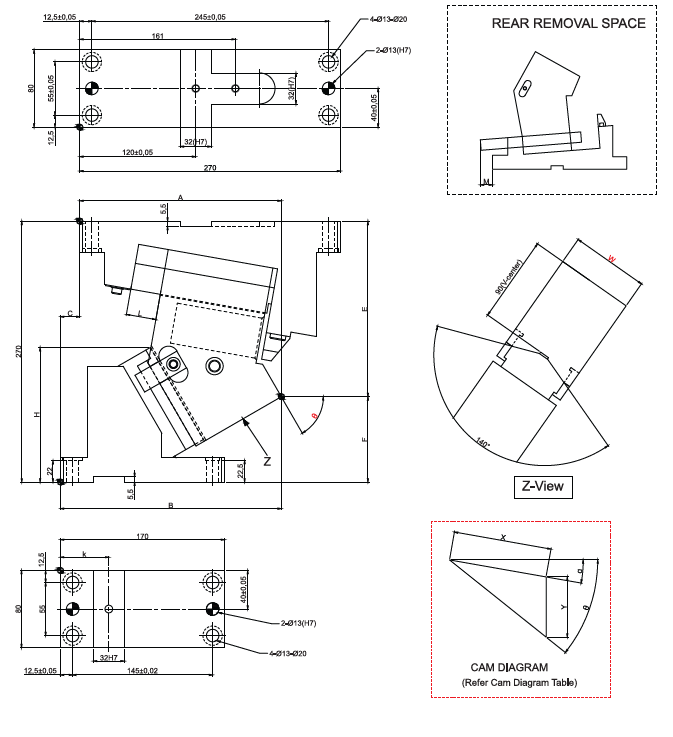

Item Code	W Mm	Angle	a mm	b mm	c mm	E mm	F mm	h mm	l mm	k mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
PCU-CS14-80-00	80	0	277	142	135	110	160	68	47	65	0	30.2	296(30.2)	1586(161.7)	1842(187.9)	49.0(5.0)	98.1(10.0)	34
PCU-CS14-80-05	80	5	278.32	153.32	125	115.67	154.33	72.4	43	65	0	30.5	324(33.0)	1620(165.2)	1872(190.9)	49.0(5.0)	98.1(10.0)	32
PCU-CS14-80-10	80	10	274.54	164.54	110	117.32	152.68	81.5	40	65	0	31.1	432(44.1)	1642(167.4)	1872(190.9)	49.0(5.0)	98.1(10.0)	32
PCU-CS14-80-15	80	15	277.58	172.58	105	119.95	150.05	90.2	40	55	0	33.9	432(44.1)	1660(169.2)	1872(190.9)	49.0(5.0)	98.1(10.0)	32
PCU-CS14-80-20	80	20	273.34	178.34	95	123.52	146.48	98.3	35	55	0	32.3	392(39.9)	1679(171.2)	1914(195.2)	49.0(5.0)	98.1(10.0)	32
PCU-CS14-80-25	80	25	268.75	188.75	80	128.03	141.97	105.9	35	55	0	35	392(39.9)	1697(173.0)	1914(195.2)	49.0(5.0)	98.1(10.0)	30
PCU-CS14-80-30	80	30	261.73	196.73	65	133.42	136.58	112.9	32	60	0	34.7	522(53.2)	1714(174.8)	1914(195.2)	49.0(5.0)	98.1(10.0)	30
PCU-CS14-80-35	80	35	258.2	203.2	55	139.7	130.34	119.2	32	60	0	37.7	522(53.2)	1731(176.5)	1914(195.2)	49.0(5.0)	98.1(10.0)	30
PCU-CS14-80-40	80	40	245.09	210.09	35	146.7	123.3	124.8	31	50	7	39.9	566(57.7)	1744(177.9)	1914(195.2)	49.0(5.0)	98.1(10.0)	29
PCU-CS14-80-45	80	45	245.34	215.34	30	154.49	115.51	129.7	31	50	0	43.7	566(57.7)	1762(179.6)	1914(195.2)	49.0(5.0)	98.1(10.0)	29
PCU-CS14-80-50	80	50	225.87	220.87	5	162.97	107.03	133.7	30	50	10	46.7	609(62.1)	1775(181.0)	1914(195.2)	49.0(5.0)	98.1(10.0)	30
