Product Details

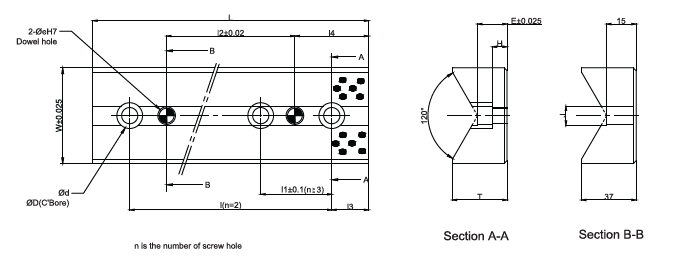

V-GUIDE BLOCK - PCU-CA2

Technical Description

Material : Copper alloy special solid lubricant (embedded)

Width (W) : 35,50, & 65 mm

Length (L) : 75 to 300 mm

Order Type : PCU-CA2-W-L

Example : PCU-CA2-35-100

Product of: Pawan

Add to cart	CAD File	Item Code	W (mm)	L (mm)	l mm	L1 mm	L2 Mm	L3 Mm	L4 Mm	N (holes)	E mm	d mm	J mm	h mm	T mm
		PCU-CA2-35-75	35	75	45	-	15	15	30	2	15	14	11	4	24
		PCU-CA2-35-100	35	100	60	-	20	20	40	2	15	14	11	4	24
		PCU-CA2-35-125	35	125	85	-	45	20	40	2	15	14	11	4	24
		PCU-CA2-35-150	35	150	110	-	70	20	40	2	15	14	11	4	24
		PCU-CA2-50-75	50	75	45	-	15	15	30	2	18	17.5	13	8	31
		PCU-CA2-50-100	50	100	60	-	20	20	40	2	18	17.5	13	8	31
		PCU-CA2-50-125	50	125	75	-	25	25	50	2	18	17.5	13	8	31
		PCU-CA2-50-150	50	150	100	-	50	25	50	2	18	17.5	13	8	31
		PCU-CA2-65-100	65	100	60	-	20	20	40	2	18	17.5	13	8	35
		PCU-CA2-65-150	65	150	-	50	50	25	50	3	18	17.5	13	8	35
		PCU-CA2-65-200	65	200	-	50	100	25	50	4	18	17.5	13	8	35
		PCU-CA2-65-250	65	250	-	50	150	25	50	5	18	17.5	13	8	35
		PCU-CA2-65-300	65	300	-	50	200	25	50	6	18	17.5	13	8	35
