Product Details

Material :- En8d
Hardness :- Core 28-30 HRC (Toughened)
Surface Treatment :- Blackodised

Product Range :- M8 to M24

Order Type :- Code
Example :- T Nut M16

Availability :- 7 Days
(*Note - This is tentative schedule, may vary as per material availability)

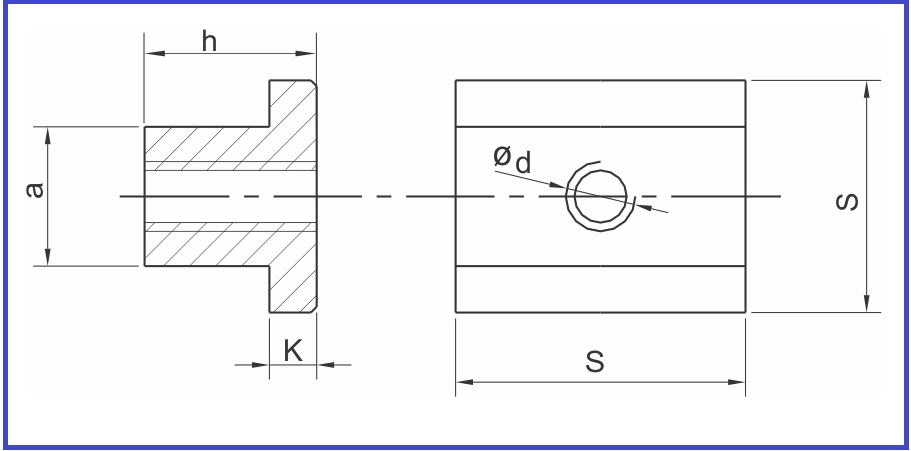

Item Code	D (mm)	S (mm)	A (mm)	H (mm)	K (mm)
PCETN M8	M8	15	10	12	6
PCETN M10	M10	18	12	14	7
PCETN M12	M12	22	14	16	8
PCETN M12 B	M12	25	16	18	9
PCETN M16	M16	28	18	20	10
PCETN M16 B	M16	32	20	24	12
PCETN M20	M20	35	22	28	14
PCETN M24	M24	44	28	36	18
