Product Details

Arial Cam Unit - PCU-CS2-65-(00-45)

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 65 mm

Angle (Φ) : 00 to 45

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS2-65-00-K

*For OC option Please refer to our catalogue

Product of: Pawan

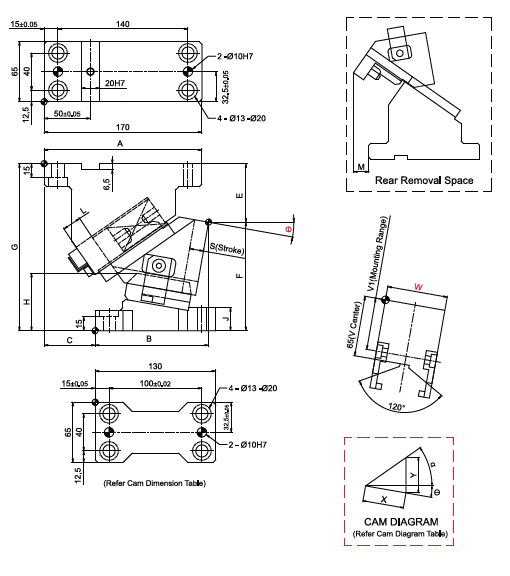

Add to cart	CAD File	Item Code	W Mm		a mm	b mm	c mm	E mm	F mm	G mm	h mm	J mm	l mm	V1 Mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
		PCU-CS2-65-00	65	0	170	110	60	53	127	180	59.5	33	21.2	65	7	15	289(29.5)	888(90.6)	1190(12.3)	19.6(2.0)	39.2(4.0)	9.5
		PCU-CS2-65-05	65	5	17.41	116.41	55	60.27	119.73	180	59	25	19.6	65	13	15.1	357(36.4)	914(93.2)	1190(12.3)	19.6(2.0)	39.2(4.0)	9.3
		PCU-CS2-65-10	65	10	177.16	122.16	55	63.06	116.94	180	63.5	25	18.3	65	20	15.2	350(35.7)	939(95.7)	1226(125.0)	19.6(2.0)	39.2(4.0)	9
		PCU-CS2-65-15	65	15	177.2	127.2	50	66.33	113.67	180	67.9	22	17.3	65	25	15.5	398(40.5)	958(97.7)	1226(125.0)	19.6(2.0)	39.2(4.0)	8.8
		PCU-CS2-65-20	65	20	176.51	136.51	40	70.01	109.99	180	72.2	22	17.1	65	30	16.5	407(41.5)	977(99.6)	1226(125.0)	19.6(2.0)	39.2(4.0)	8.6
		PCU-CS2-65-25	65	25	172.94	137.94	35	75.64	104.36	180	74.9	22	17.1	65	30	17.1	407(41.5)	987(100.6)	1226(125.0)	19.6(2.0)	39.2(4.0)	8.5
		PCU-CS2-65-30	65	30	177.78	147.78	30	78.32	101.68	180	80.7	22	16.6	65	31	18.5	431(44.0)	1011(103.1)	1226(125.0)	19.6(2.0)	39.2(4.0)	8.3
		PCU-CS2-65-35	65	35	173.29	153.29	20	83.25	96.75	180	84.5	22	16.6	65	31	19.6	431(44.0)	1025(104.5)	1226(125.0)	19.6(2.0)	39.2(4.0)	8.3
		PCU-CS2-65-40	65	40	170.78	160.78	10	82.44	97.56	180	96	22	16.5	65	35	21.5	436(44.4)	1044(106.5)	1226(125.0)	19.6(2.0)	39.2(4.0)	8.1
		PCU-CS2-65-45	65	45	165.5	163	2.5	86.51	93.49	180	100.9	22	15.5	65	35	23.3	436(44.4)	1059(107.9)	1226(125.0)	19.6(2.0)	39.2(4.0)	8.1
