Product Details

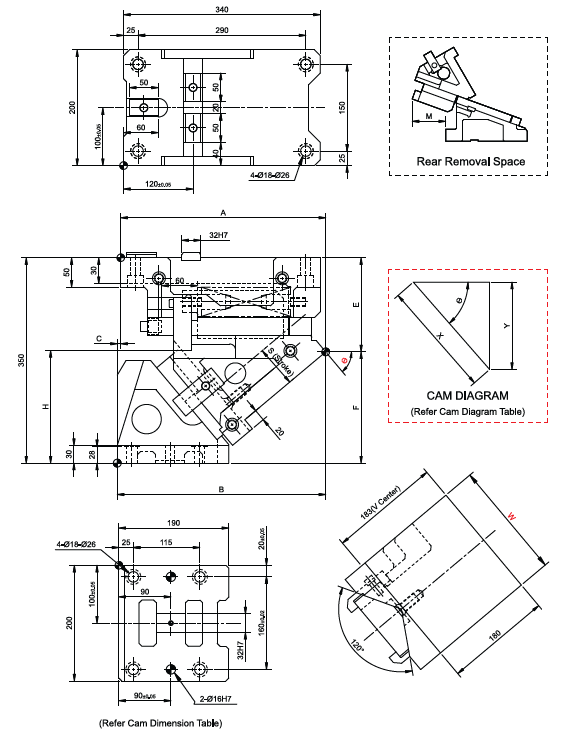

Arial Cam Unit - PCU-CS4-200-(50-60)

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 200 mm

Angle (Φ) : 50 to 60



Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS4-200-50-N

*For OC option Please refer to our catalogue

Product of: Pawan
Pawan Logo
Add to cart CAD File Item Code W MmAnglea mmb mmc mmE mmF mmh mmM mmS mmSL KgSL1 KgSLM KgWF KgWFM Kgwt Kg
PCU-CS4-200-5020050348.77354.776161.49188.51192.812693.3817(83.3)4685(477.8)4903(500.0)117.7(12.0)235.4(24.0)93.7
PCU-CS4-200-6020060332.75377.7545195.83154.17202.1152120817(83.3)4733(482.6)4903(500.0)117.7(12.0)235.4(24.0)97.3
