Technical Description

Material :- EN31/Hot Die Steel(H13)

Hardness :- 48-52HRC

Surface Treatment :- Blackodised & Nitrieded

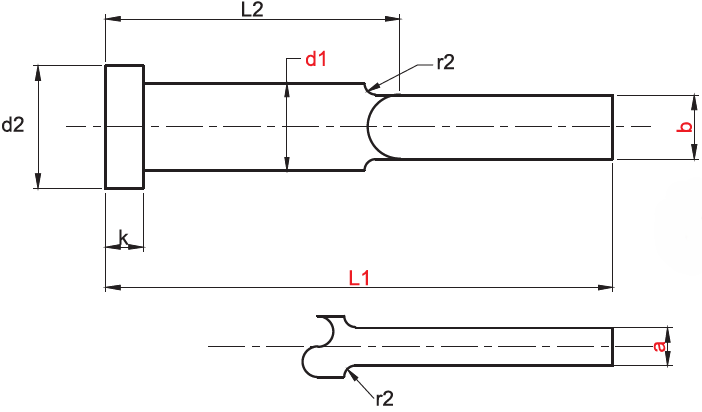

Dia (d1) Range :- 4 mm to 16 mm

Length (L) Range :- 60mm to 400 mm

Order Type :- Code  X a X b X d1  X L1
Example :- PPEB X 2 X 5.5 X 6 X 100
Availability :- 7 Days
(*Note - This is tentative schedule, may vary as per material availability)
