Product Details

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 145 mm

Angle (Φ) : 45

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS12-145-45-S

*For OC option Please refer to our catalogue

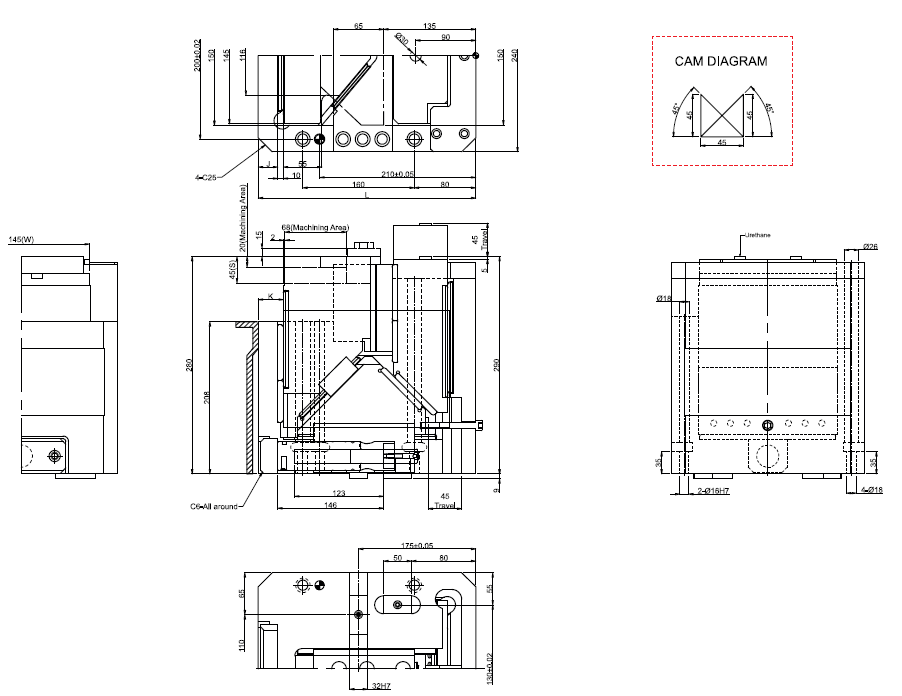

Add to cart	CAD File	Item Code	W Mm	S	J mm	k mm	l mm	WF Kg	WFM Kg	wt Kg
		PCU-CS12-145-45	145	45	25	35	305	73.5(7.5)	73.5(7.5)	124
