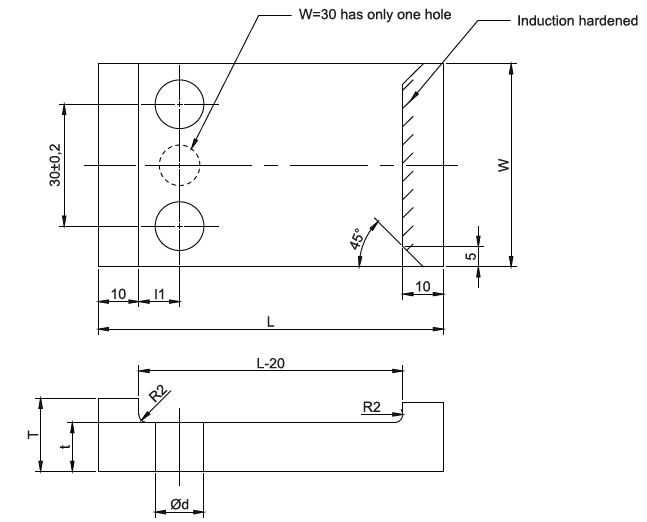

Product Details

Material : EN8

Hardness : 55 HRC (Induction Hardened)

Width (W) : 30 & 50 mm

Length (L) : 55-105 mm

Order Type : PCU-CA32-W-L

Example : PCU-CA32-30-55

Item Code	W (mm)	L (mm)	No. Of Screw Holes	L1 (mm)	t (mm)		X (mm)
PCU-CA32-30-55	30	55	1	7.5	8	10	35
PCU-CA32-30-75	30	75	1	7.5	8	10	55
PCU-CA32-50-65	50	65	2	10	10	12	45
PCU-CA32-50-85	50	85	2	10	10	12	65
PCU-CA32-50-105	50	105	2	10	10	12	85
