Product Details

Hex Nut - PCEHN

Material :- En8d
Hardness :- Core 28-30 HRC (Toughened)
Surface Treatment :- Blackodised

Length Range :- M12 to M36
Dia (D1) Range :- 9mm to 26 mm

Order Type :- Code
Example :- Hex Nut M24
Availability :- 7 Days
(*Note - This is tentative schedule, may vary as per material availability)

Product of: Pawan
Pawan Logo

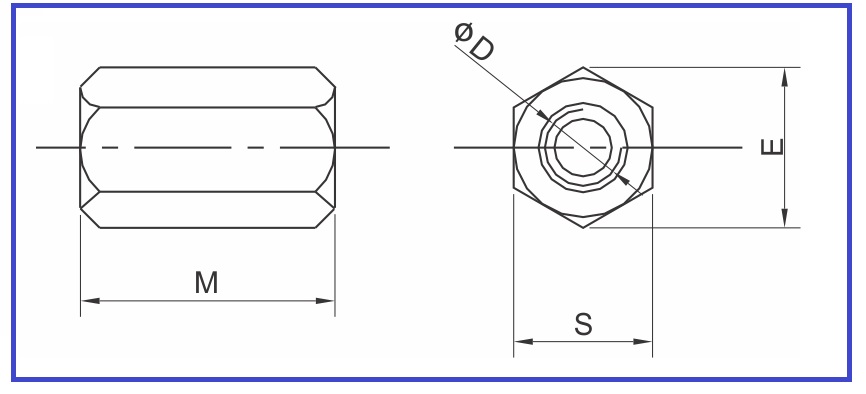

Add to cart CAD File Item Code D (mm)M (mm)D1 (mm)S (mm)E (mm)R (mm)
PCEHN M8M8139131511
PCEHN M10M101811.51719.615
PCEHN M12M1224141921.917
PCEHN M16M1646182427.722
PCEHN M20M2068223034.627
PCEHN M24M24109263641.632
