Product Details

Technical Description

Material Type: Refer catalogue for material details

Width (W): 50 mm

Angle (Φ): 00 to 30

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS10-50-15-K

Availability - 20 Days
(*Note - This is tentative schedule, may vary as per material availability)

*For OC option Please refer to our catalogue

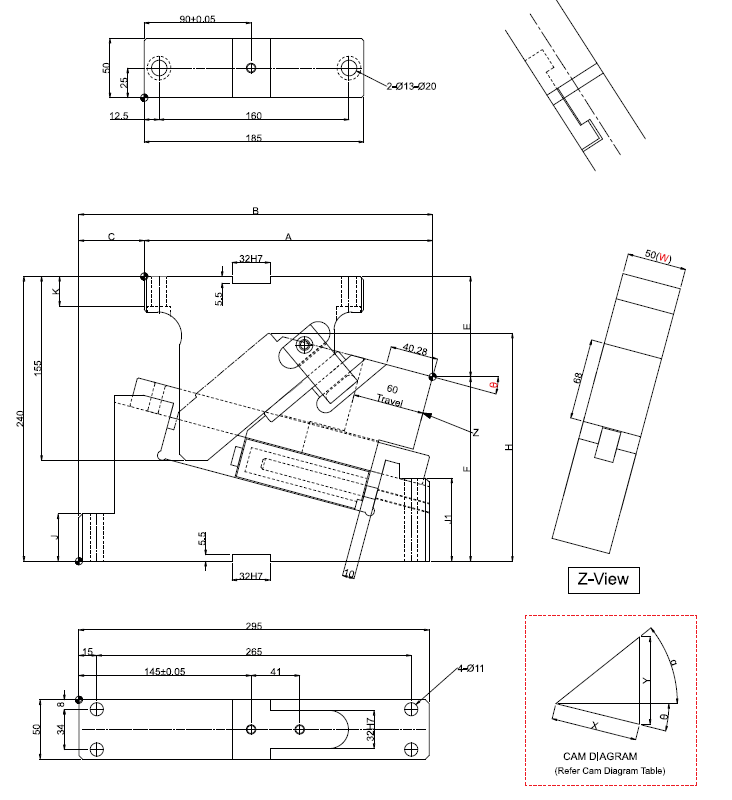

Item Code	W Mm	Angle	a mm	b mm	c mm	E mm	F mm	h mm	J1 Mm	J mm	k mm	S mm	SL Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
PCU-CS10-50-00	50	0	230	240	10	75	165	165	82	82	25	60	84.5 (8.6)	591.5 (60.2)	14.7(1.5)	14.7(1.5)	19.2
PCU-CS10-50-05	50	5	236.25	281.25	45	77.24	162.76	174.4	75	40	25	60	84.5 (8.6)	591.5 (60.2)	14.7(1.5)	14.7(1.5)	19.2
PCU-CS10-50-10	50	10	237.27	287.27	50	80.45	159.55	183.6	75	40	25	60	84.5 (8.6)	591.5 (60.2)	14.7(1.5)	14.7(1.5)	19.2
PCU-CS10-50-15	50	15	242.97	297.97	55	84.61	155.39	191.6	70	40	25	60	84.5 (8.6)	591.5 (60.2)	14.7(1.5)	14.7(1.5)	19.2
PCU-CS10-50-20	50	20	238.26	308.26	70	89.68	150.32	198.5	70	40	25	60	84.5 (8.6)	591.5 (60.2)	14.7(1.5)	14.7(1.5)	19.2
PCU-CS10-50-25	50	25	238.07	308.07	70	95.63	144.37	204.1	65	40	25	60	84.5 (8.6)	591.5 (60.2)	14.7(1.5)	14.7(1.5)	19.2
PCU-CS10-50-30	50	30	232.32	312.32	80	102.42	137.58	208.4	60	45	25	60	84.5 (8.6)	591.5 (60.2)	14.7(1.5)	14.7(1.5)	19.2
