Product Details

Technical Description

Material Type: Refer catalogue for material details

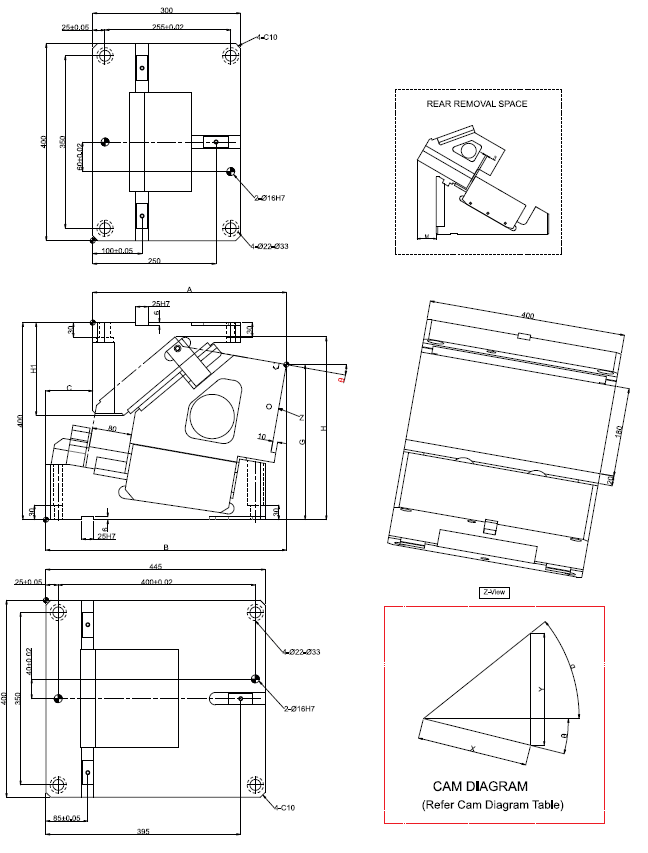

Width (W) : 400 mm

Angle (Φ) : 00 to 20

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS11-400-10-K

*For OC option Please refer to our catalogue

Item Code	W Mm	Angle	a mm	b mm	c mm	F mm	G mm	h mm	SLM Kg	WF Kg	WFM Kg	wt Kg
PCU-CS11-400-00	400	0	395	445	50	219.9	341	355.2	22000(2244.9)	431.5(44.0)	431.5(44.0)	345
PCU-CS11-400-05	400	5	394.2	469.2	75	208.1	325.67	359.9	22000(2244.9)	431.5(44.0)	431.5(44.0)	341
PCU-CS11-400-10	400	10	392.94	487.94	95	190.9	314.68	368.6	22000(2244.9)	431.5(44.0)	431.5(44.0)	348
PCU-CS11-400-15	400	15	391.09	501.09	110	174.6	302.08	375.4	22000(2244.9)	431.5(44.0)	431.5(44.0)	355
PCU-CS11-400-20	400	20	393.52	518.52	125	164.2	282.93	375	22000(2244.9)	431.5(44.0)	431.5(44.0)	366
