Pawan-ec - Product Details

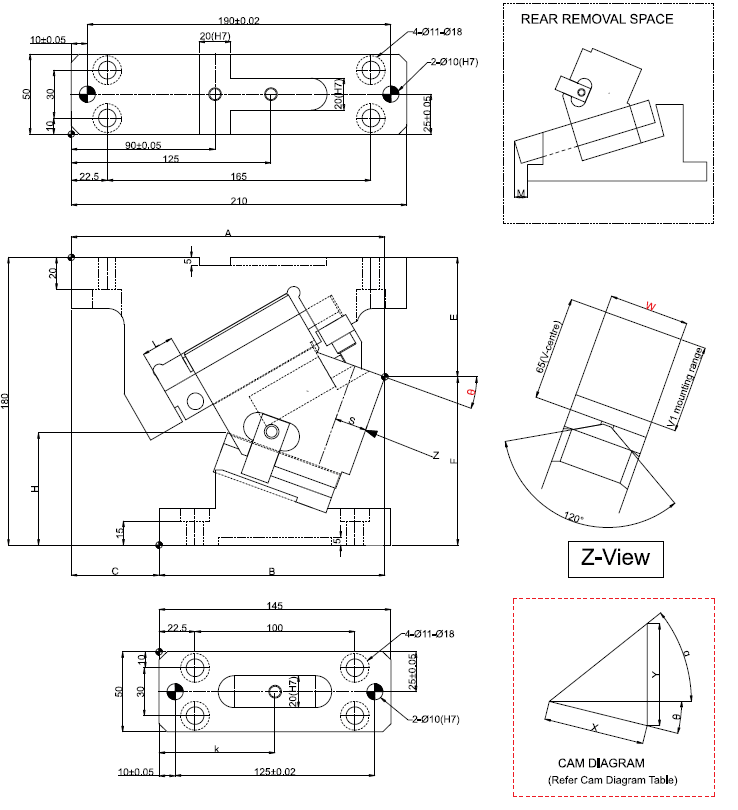

Item Code	W Mm	Angle	a mm	b mm	c mm	E mm	F mm	h mm	l mm	V1 Mm	k mm	x mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
PCU-CS14-50-00	50	0	195	115	80	67.5	112.5	46	23.3	65	72.5	0	15	184 (18.8)	792 (80.7)	1098 (111.9)	29.4(3.0)	58.8(6.0)	10.6
PCU-CS14-50-05	50	5	198.04	123.04	75	68.29	111.71	52.4	22	65	72.5	0	15.6	180 (18.3)	853 (87.0)	1167 (119.0)	29.4(3.0)	58.8(6.0)	10.3
PCU-CS14-50-10	50	10	195.99	130.99	65	69.77	110.23	58.6	20	65	72.5	0	15.6	269 (27.5)	880 (89.7)	1167 (119.0)	29.4(3.0)	58.8(6.0)	9.9
PCU-CS14-50-15	50	15	198.77	133.77	65	71.95	108.05	64.5	20	65	72.5	0	17	269 (27.5)	902 (92.0)	1167 (119.0)	29.4(3.0)	58.8(6.0)	9.7
PCU-CS14-50-20	50	20	196.34	141.34	55	74.79	105.21	70.1	20	65	72.5	0	18.4	269 (27.5)	925 (94.3)	1167 (119.0)	29.4(3.0)	58.8(6.0)	9.4
PCU-CS14-50-25	50	25	191.62	150.62	41	80.28	99.72	73.3	18	65	72.5	0	18	359 (36.6)	943 (96.1)	1167 (119.0)	29.4(3.0)	58.8(6.0)	9.4
PCU-CS14-50-30	50	30	190.58	150.58	40	85.39	94.61	77	16	65	62.5	0	17.4	263 (26.8)	863 (88.0)	1105 (112.6)	29.4(3.0)	58.8(6.0)	9.2
PCU-CS14-50-35	50	35	187.15	162.15	25	90.1	89.9	81.3	16	65	72.5	0	18.9	263 (26.8)	884 (90.1)	1105 (112.6)	29.4(3.0)	58.8(6.0)	9.2
PCU-CS14-50-40	50	40	183.29	160.79	22.5	95.35	84.65	85.1	16	55	62.5	0	20.6	263 (26.8)	899 (91.7)	1105 (112.6)	29.4(3.0)	58.8(6.0)	9.1
PCU-CS14-50-45	50	45	179.94	169.94	10	98.13	81.87	91.4	16	55	72.5	0	22.5	263 (26.8)	921 (93.9)	1105 (112.6)	29.4(3.0)	58.8(6.0)	9.1
PCU-CS14-50-50	50	50	174.07	169.07	5	99.37	80.63	99.2	15	55	72.5	0	23.3	316 (32.2)	936 (95.5)	1105 (112.6)	29.4(3.0)	58.8(6.0)	9
