Pawan-ec - Product Details

Item Code	W (mm)	L (mm)	T (mm)	L (mm)	S (mm)
PCU-CA36-30-100-30-S	30	100	30	50	15
PCU-CA36-30-150-30-S	30	150	30	100	15
PCU-CA36-30-200-30-S	30	200	30	75	15
PCU-CA36-30-250-30-S	30	250	30	100	15
PCU-CA36-30-300-30-S	30	300	30	125	15
PCU-CA36-30-350-30-S	30	350	30	150	15
PCU-CA36-40-100-30-S	40	100	30	50	15
PCU-CA36-40-150-30-S	40	150	30	100	15
PCU-CA36-40-200-30-S	40	200	30	75	15
PCU-CA36-40-250-30-S	40	250	30	100	15
PCU-CA36-40-300-30-S	40	300	30	125	15
PCU-CA36-40-350-30-S	40	350	30	150	15
PCU-CA36-40-100-40-S	40	100	40	50	20
PCU-CA36-40-150-40-S	40	150	40	100	20
PCU-CA36-40-200-40-S	40	200	40	75	20
PCU-CA36-40-250-40-S	40	250	40	100	20
PCU-CA36-40-300-40-S	40	300	40	125	20
PCU-CA36-40-350-40-S	40	350	40	150	20
PCU-CA36-30-100-30-C	30	100	30	50	15
PCU-CA36-30-150-30-C	30	150	30	100	15
PCU-CA36-30-200-30-C	30	200	30	75	15
PCU-CA36-30-250-30-C	30	250	30	100	15
PCU-CA36-30-300-30-C	30	300	30	125	15
PCU-CA36-30-350-30-C	30	350	30	150	15
PCU-CA36-40-100-30-C	40	100	30	50	15
PCU-CA36-40-150-30-C	40	150	30	100	15
PCU-CA36-40-200-30-C	40	200	30	75	15
PCU-CA36-40-250-30-C	40	250	30	100	15
PCU-CA36-40-300-30-C	40	300	30	125	15
PCU-CA36-40-350-30-C	40	350	30	150	15
PCU-CA36-40-100-40-C	40	100	40	50	20
PCU-CA36-40-150-40-C	40	150	40	100	20
PCU-CA36-40-200-40-C	40	200	40	75	20
PCU-CA36-40-250-40-C	40	250	40	100	20
PCU-CA36-40-300-40-C	40	300	40	125	20
PCU-CA36-40-350-40-C	40	350	40	150	20
PCU-CA36-40-100-40-B	40	100	40	50	20
PCU-CA36-40-150-40-B	40	150	40	100	20
PCU-CA36-40-200-40-B	40	200	40	75	20
PCU-CA36-40-250-40-B	40	250	40	100	20
PCU-CA36-40-300-40-B	40	300	40	125	20
PCU-CA36-40-350-40-B	40	350	40	150	20
PCU-CA36-60-100-40-B	60	100	40	50	25
PCU-CA36-60-250-40-B	60	250	40	100	25
PCU-CA36-60-300-40-B	60	300	40	125	25
PCU-CA36-60-350-40-B	60	350	40	150	25

Making Things Possible

Product Details

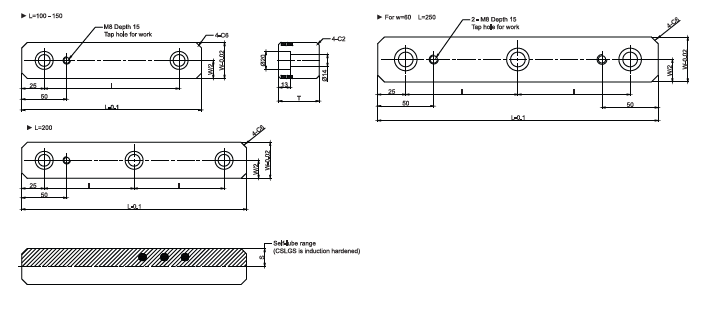

SLIDE GUIDE BLOCK (PCU-CA36)-B,C,S

Product of: Pawan
