Product Details

Material : Copper alloy Special solid lubricant(embedded)

Width (W) : 25 & 32 mm

Length (L) : 60 & 80 mm

Order Type : PCU-CA26-W-L

Example : PCU-CA26-25-60

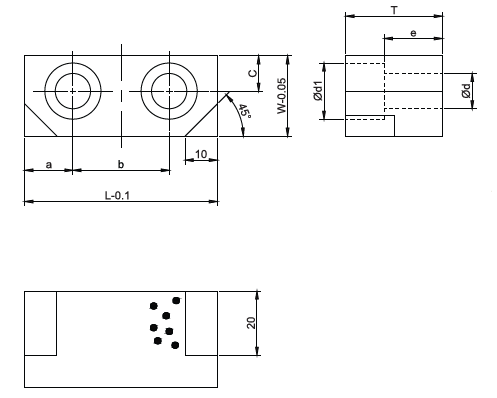

Item Code	W (mm)	L (mm)	A (mm)	B (mm)	C (mm)			E (mm)	t (mm)
PCU-CA26-25-60	25	60	15	30	11	11	17.5	18	30
PCU-CA26-32-60	32	60	15	30	16	13	20	23	38
PCU-CA26-32-80	32	80	20	40	16	13	20	23	38
		.
