Diagonal Piller Die Set - PMSD/PMSDB

Die Set Plate Material:- MS
Pillar & Bush Material:- En353
BallCage Material:- Brass / Aluminium

Pillar & Bush Hardness:- 58 - 62 HRC

Order Type :- Code - D/L
Example :- PMSDB125 X 125 -100 (With Ballcage)
Availability:- 7 Days(Tentative schedule, may vary as per material availability)
Note - Our standard day light is 100mm. Day light to any other specification can be provided. Die Set as per Customer Drawing can also be manufactured.

Product of: Pawan

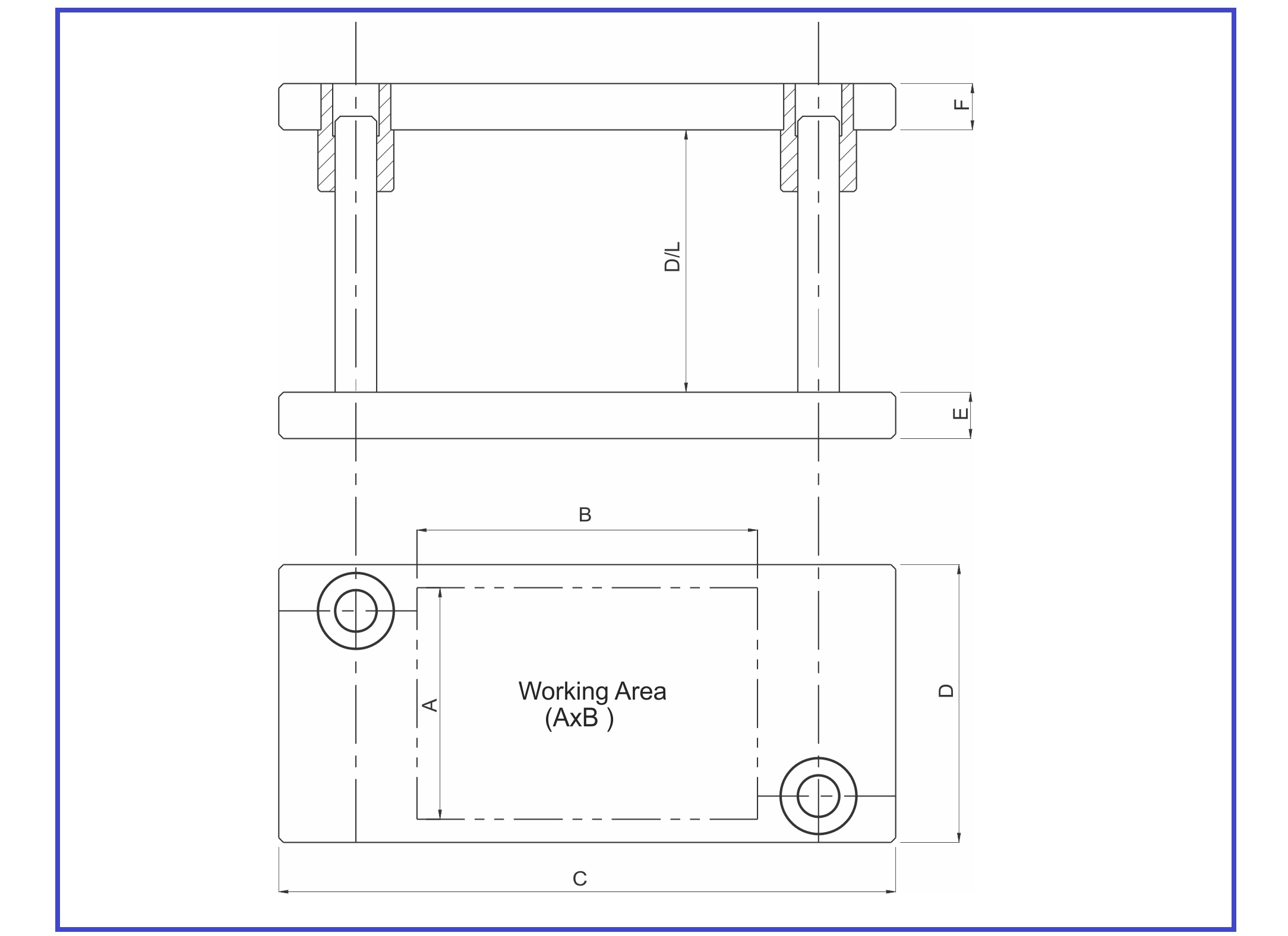

Item Code	A In Mm	B In Mm	Dl In Mm	W In Mm	C (mm)	CD	d (mm)	Do	E (mm)	F (mm)
PMSD 100X100	100	100	100	Plain Sliding	225	164	110	24/25	32	32
PMSDBB 100X100	100	100	100	Ballcage	240	172	110	24/25	32	32
PMSD 125X125	125	125	100	Plain Sliding	255	194	135	24/25	32	32
PMSDBB 125X125	125	125	100	Ballcage	270	202	135	24/25	32	32
PMSD 150X150	150	150	100	Plain Sliding	290	222.5	160	28/29	32	32
PMSDBB 150X150	150	150	100	Ballcage	305	232	160	28/29	32	32
PMSD 175X175	175	175	100	Plain Sliding	315	247.5	185	28/29	32	32
PMSDBB 175X175	175	175	100	Ballcage	330	257	185	28/29	32	32
PMSD 200X200	200	200	100	Plain Sliding	350	277.5	210	34/35	40	40
PMSDBB 200X200	200	200	100	Ballcage	365	287	210	34/35	40	40
PMSD 250X250	250	250	100	Plain Sliding	400	327.5	260	34/35	40	40
PMSDBB 250X250	250	250	100	Ballcage	415	337	260	34/35	40	40
PMSD 300X300	300	300	100	Plain Sliding	450	372.5	310	40/42	40	40
