Product Details

Material : FG260 Special solid lubricant(embedded)

Width (W) : 40 & 60 mm

Length (L) : 150-300 mm

Order Type : PCU-CA35-W-L

Example : PCU-CA26-40-150

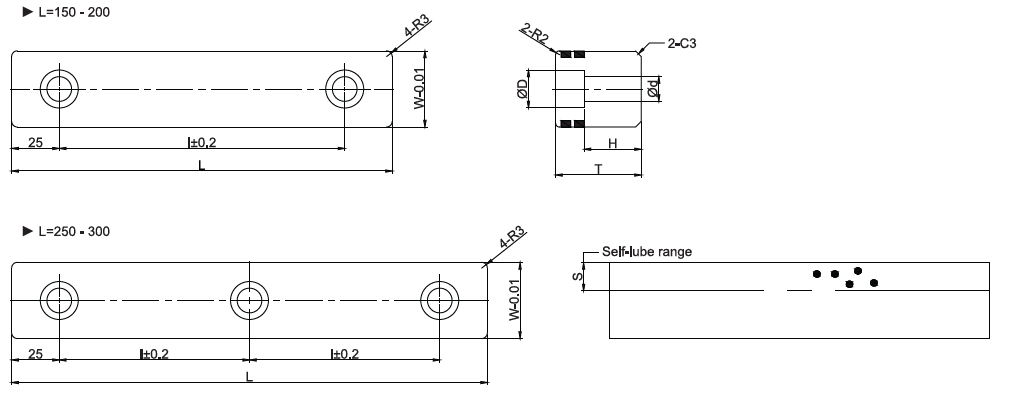

Item Code	W (mm)	L (mm)	t (mm)		L (mm)	H (mm)	S (mm)
PCU-CA35-40-150	40	150	45	13	100	30	15
PCU-CA35-40-200	40	200	45	13	150	30	15
PCU-CA35-40-250	40	250	45	13	100	30	15
PCU-CA35-60-150	60	150	60	18	100	38	20
PCU-CA35-60-200	60	200	60	18	150	38	20
PCU-CA35-60-250	60	250	60	18	100	38	20
PCU-CA35-60-300	60	300	60	18	125	38	20
