Product Details

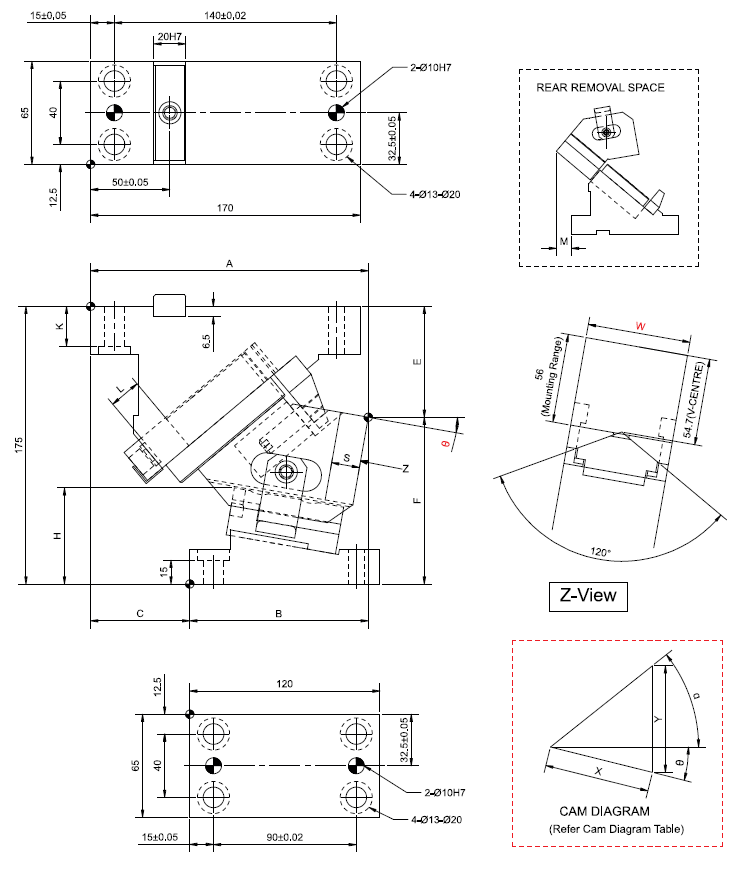

Arial Cam Unit - PCU-CS14-65-(00-50)

Technical Description

Material Type: Refer catalogue for material details



Width (W) : 65 mm

Angle (Φ) : 00 - 50



Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS14-65-00-K

*For OC option Please refer to our catalogue

Product of: Pawan
Pawan Logo
Add to cart CAD File Item Code W MmAnglea mmb mmc mmE mmF mmh mml mmk mmM mmS mmSL KgSL1 KgSLM KgWF KgWFM Kgwt Kg
PCU-CS14-65-006501701007060115582523.31515245(25.0)638(65.0)835(85.1)29.4(3.0)58.8(6.0)10.7
PCU-CS14-65-05655170.36105.366567.22107.7857.125222115.6278(28.4)658(67.1)835(85.1)29.4(3.0)58.8(6.0)10.4
PCU-CS14-65-106510175.07112.5762.569.88105.1261.125202115.6237(24.1)639(65.2)829(84.5)29.4(3.0)58.8(6.0)10.2
PCU-CS14-65-156515174.09119.095572.92102.0865.325202617237(24.1)654(66.7)829(84.5)29.4(3.0)58.8(6.0)9.9
PCU-CS14-65-206520172.4127.44576.2898.7270.225203118.4237(24.1)669(68.2)829(84.5)29.4(3.0)58.8(6.0)9.9
PCU-CS14-65-306530171.78136.783583.7191.2978.125183119.5176(17.9)648(66.0)810(82.6)29.4(3.0)58.8(6.0)9.6
PCU-CS14-65-406540163.07143.072091.6383.3784.515183423.1176(17.9)672(68.6)810(82.6)29.4(3.0)58.8(6.0)9.5
PCU-CS14-65-506550170151.225104.570.591.115163324.9246(25.1)697(71.1)810(82.6)29.4(3.0)58.8(6.0)9.9
