Product Details

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 90 mm

Angle (Φ) : 00 - 15

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS13-90-00-NF

*For OC option Please refer to our catalogue

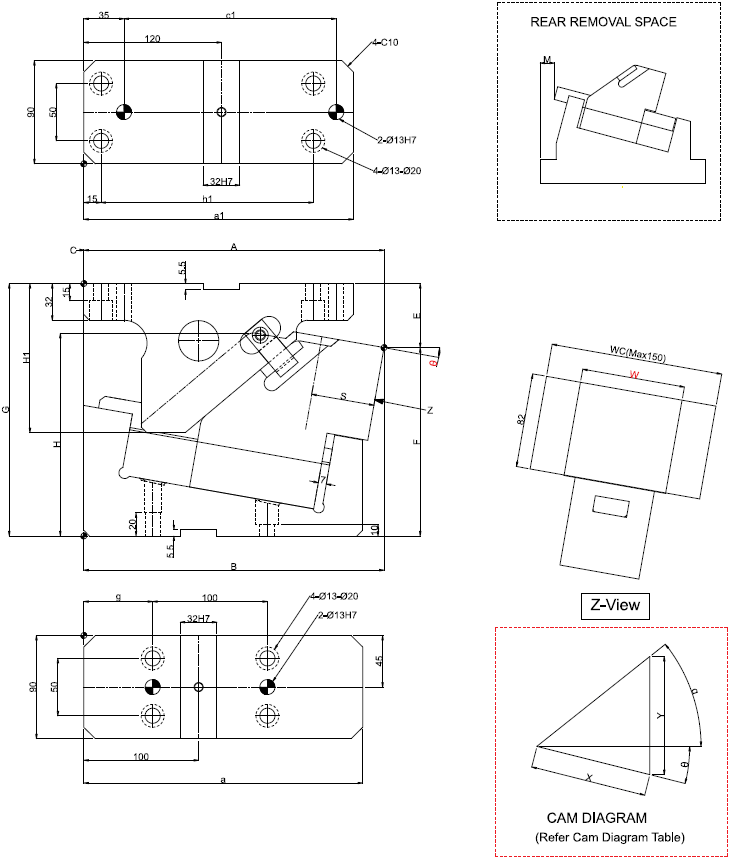

Item Code	W Mm	Angle	a mm	b mm	c mm	E mm	F mm	G mm	h mm	h1 mm	a1 mm	C1 mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
PCU-CS13-90-00	90	0	233	236	0	38	182	60	182	160	210	160	30	55	171(17.4)	1119(114.1)	1213(123.7)	38.2(3.9)	76.5(7.8)	24.9
PCU-CS13-90-05	90	5	240	251.42	0	53.76	166.24	60	174.5	175	225	175	23	55	171(17.4)	1119(114.1)	1213(123.7)	38.2(3.9)	76.5(7.8)	25.9
PCU-CS13-90-10	90	10	243	261.72	0	55.86	164.14	60	180.6	185	235	185	19	55	171(17.4)	1119(114.1)	1213(123.7)	38.2(3.9)	76.5(7.8)	27.3
PCU-CS13-90-15	90	15	248	275.82	15	64.03	160.97	65	188.4	185	235	185	9	55	171(17.4)	1119(114.1)	1213(123.7)	38.2(3.9)	76.5(7.8)	29.3
