Pawan-ec - Product Details

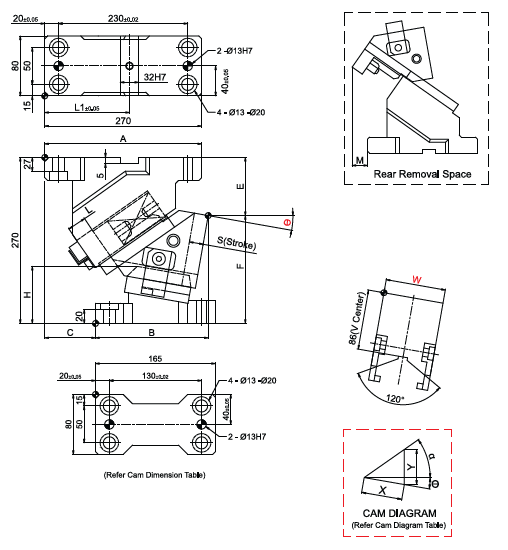

Item Code	W Mm		a mm	b mm	c mm	E mm	F mm	h mm	l mm	L1 mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
PCU-CS2-80-00	80	0	260	160	100	99	171	83	50	130	12	32.1	270(27.5)	1409(143.7)	1620(165.2)	39.2(4.0)	78.5(8.0)	25.9
PCU-CS2-80-05	80	5	272.93	172.93	100	109.39	160.61	83.8	50	150	17	38.4	270(27.5)	1445(147.3)	1620(165.2)	39.2(4.0)	78.5(8.0)	26.3
PCU-CS2-80-10	80	10	279.92	179.92	100	120.43	149.57	84.6	50	150	17	38.9	270(27.5)	1447(147.6)	1620(165.2)	39.2(4.0)	78.5(8.0)	26.6
PCU-CS2-80-15	80	15	285.93	185.93	100	132.04	137.96	85.3	50	150	17	39.7	270(27.5)	1450(147.8)	1620(165.2)	39.2(4.0)	78.5(8.0)	25.1
PCU-CS2-80-20	80	20	285.9	195.9	90	129.12	140.88	100.9	50	170	27	46.1	270(27.5)	1474(150.3)	1620(165.2)	39.2(4.0)	78.5(8.0)	25.3
PCU-CS2-80-25	80	25	289.8	199.8	90	141.6	128.4	101.5	50	170	27	47.8	270(27.5)	1480(150.9)	1620(165.2)	39.2(4.0)	78.5(8.0)	25.3
PCU-CS2-80-30	80	30	282.59	207.59	75	134.36	135.64	121.9	50	170	36	54.3	270(27.5)	1496(152.5)	1620(165.2)	39.2(4.0)	78.5(8.0)	23.2
PCU-CS2-80-35	80	35	284.27	209.27	75	147.32	122.68	122.3	50	170	36	57.4	270(27.5)	1501(153.1)	1620(165.2)	39.2(4.0)	78.5(8.0)	23.4
PCU-CS2-80-40	80	40	274.8	214.8	60	140.38	129.62	142.6	50	170	45	64.3	270(27.5)	1515(154.5)	1620(165.2)	39.2(4.0)	78.5(8.0)	22.4
PCU-CS2-80-45	80	45	274.2	214.2	60	153.44	116.56	142.7	50	170	45	69.6	270(27.5)	1523(155.3)	1620(165.2)	39.2(4.0)	78.5(8.0)	22.4
PCU-CS2-80-50	80	50	262.46	227.46	35	151.39	118.61	157.8	50	170	57	77.8	270(27.5)	1534(156.4)	1620(165.2)	39.2(4.0)	78.5(8.0)	21.6
PCU-CS2-80-55	80	55	259.6	224.6	35	164.14	105.86	157.8	50	170	56	87.2	270(27.5)	1542(157.2)	1620(165.2)	39.2(4.0)	78.5(8.0)	21.7
