Product Details

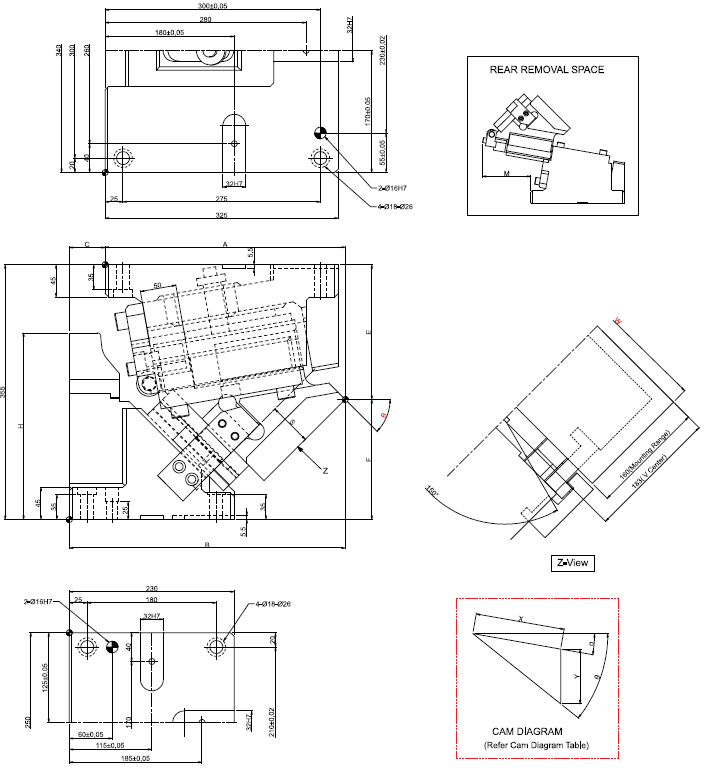

Arial Cam Unit - PCU-CS14-300-(35-65)

Technical Description

Material Type: Refer catalogue for material details

Width (W) : 300 mm

Angle (Φ) : 35 to 65

Order Type : Code-Size (W)-Φ-OC
Example : PCU-CS14-300-35-KA

*For OC option Please refer to our catalogue

Product of: Pawan

Add to cart	CAD File	Item Code	W Mm	Angle	a mm	b mm	c mm	E mm	F mm	h mm	M mm	S mm	SL Kg	SL1 Kg	SLM Kg	WF Kg	WFM Kg	wt Kg
		PCU-CS14-300-35	300	35	345.03	360.03	15	160.19	194.81	220	159	57.3	1725(175.9)	12961(1321.6)	14045(1432.2)	294.2(30.0)	588.4(60.0)	178.7
		PCU-CS14-300-40	300	40	337.97	372.97	35	173.41	181.59	240	170	63	1725(175.9)	13059(1331.7)	14045(1432.2)	294.2(30.0)	588.4(60.0)	181.6
		PCU-CS14-300-45	300	45	334.71	384.71	50	187.72	167.28	260	174	69.6	1725(175.9)	13158(1341.7)	14045(1432.2)	294.2(30.0)	588.4(60.0)	184.5
		PCU-CS14-300-50	300	50	325.15	395.15	70	203	152	280	181	77.4	1725(175.9)	13256(1351.8)	14045(1432.2)	294.2(30.0)	588.4(60.0)	188.1
		PCU-CS14-300-55	300	55	314.23	404.23	90	219.12	135.88	295	185	87.1	1725(175.9)	13330(1359.3)	14045(1432.2)	294.2(30.0)	588.4(60.0)	193.4
		PCU-CS14-300-60	300	60	306.87	411.87	105	235.98	119.02	315	184	99.6	1725(175.9)	13429(1369.4)	14045(1432.2)	294.2(30.0)	588.4(60.0)	197.6
		PCU-CS14-300-65	300	65	298	418	120	253.44	101.56	340	183	116.5	1725(175.9)	13527(1379.4)	14045(1432.2)	294.2(30.0)	588.4(60.0)	202.9

Related Products

Four Piller Die Set - PMSF/PMSFB

Oilless Bush (C.I .Casting) - PBOB

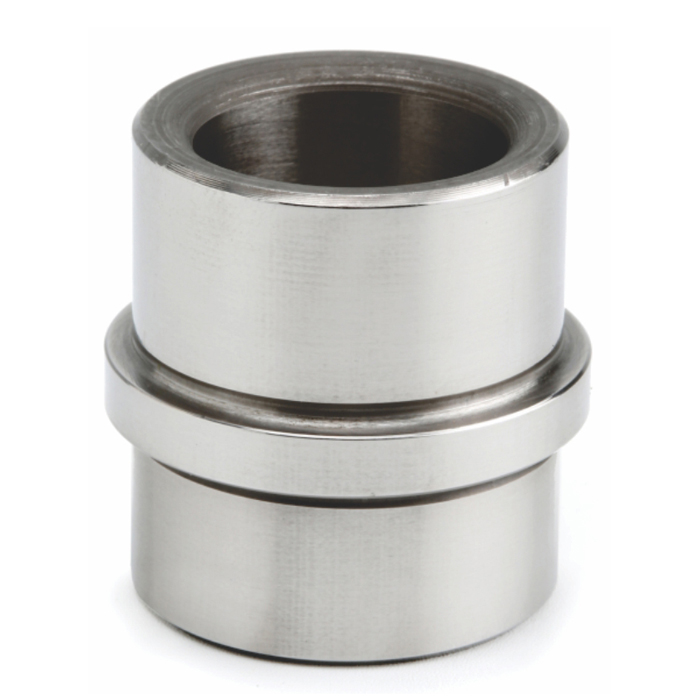

Guide Bush - PGBA
