Punch Retainer - PRCR

Technical Description

Punch Retainer Material :- En-8,
Back Up Plate Material :- -WPS

Back Up Plate Hardness :- 56 TO 60 Hrc
Dia (D) Range :- 10 mm to 25 mm

Order Type :- Code x D
Example :- PRCR X 20
Availability – 7 Days
(*Note - This is tentative schedule, may vary as per material availability)

Item Details

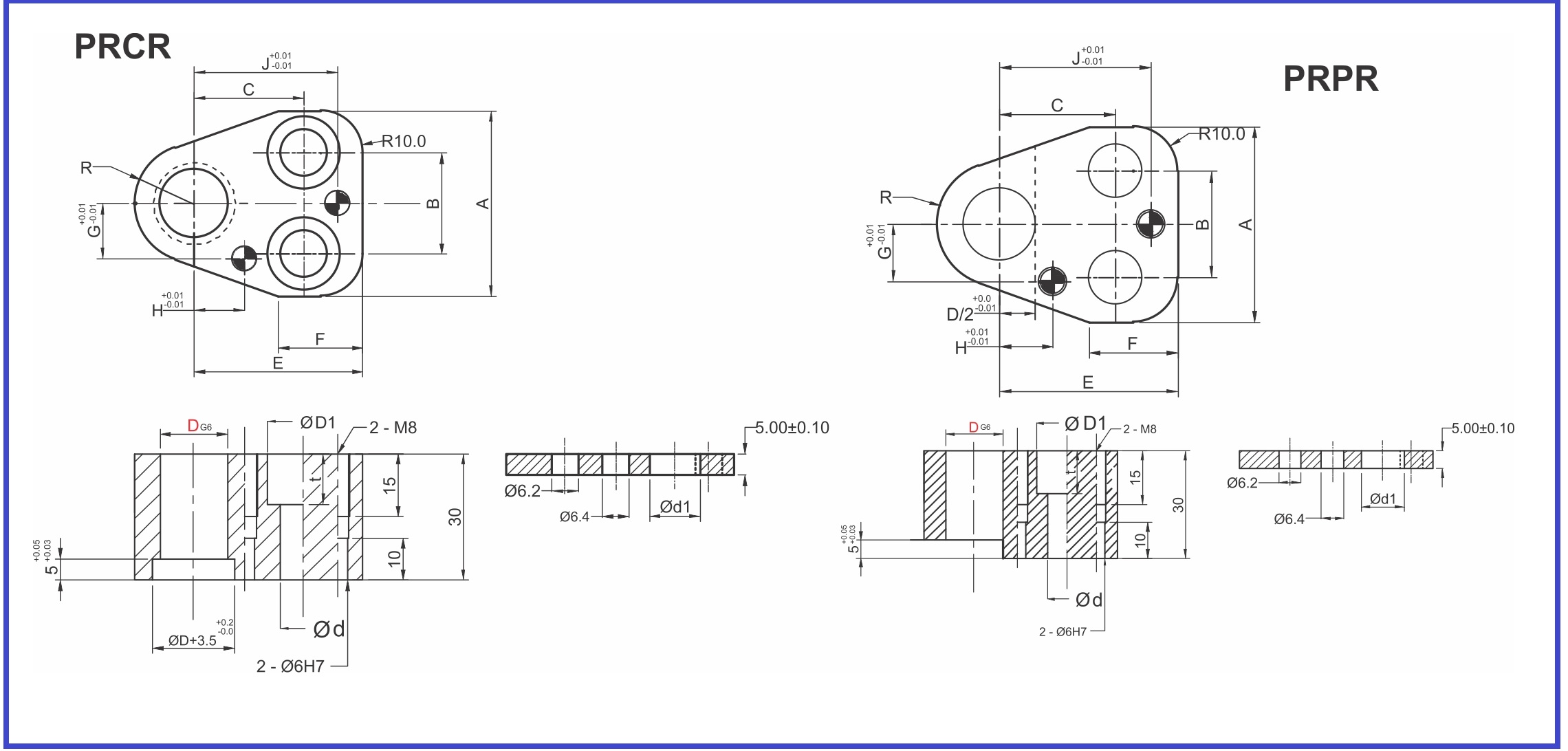

Item code	CAD	Type	Dia D in mm	A (mm)	B (mm)	C (mm)	E (mm)	F (mm)	G (mm)	H (mm)	J (mm)	R (mm)	D1 (mm)	d (mm)	t (mm)	d1 (mm)
PRCR-10		PRCR	10	37	20	21	35	20	10	9	29	9.5	14	9	10	10
PRCR-13		PRCR	13	43	26	23	38	20	13	11	32	12	14	9	10	10
PRCR-16		PRCR	16	44	24	26	40	20	13	12	34	14	17	11	12	12
PRCR-20		PRCR	20	48	28	27	42	20	16	14	36	17	17	11	12	12
PRCR-25		PRCR	25	50	30	30	46	20	18	17	39	19.5	17	11	12	12
