Wear Plate - PWP - PB

Technical Description

Plate Material:- Phosphorus Bronze

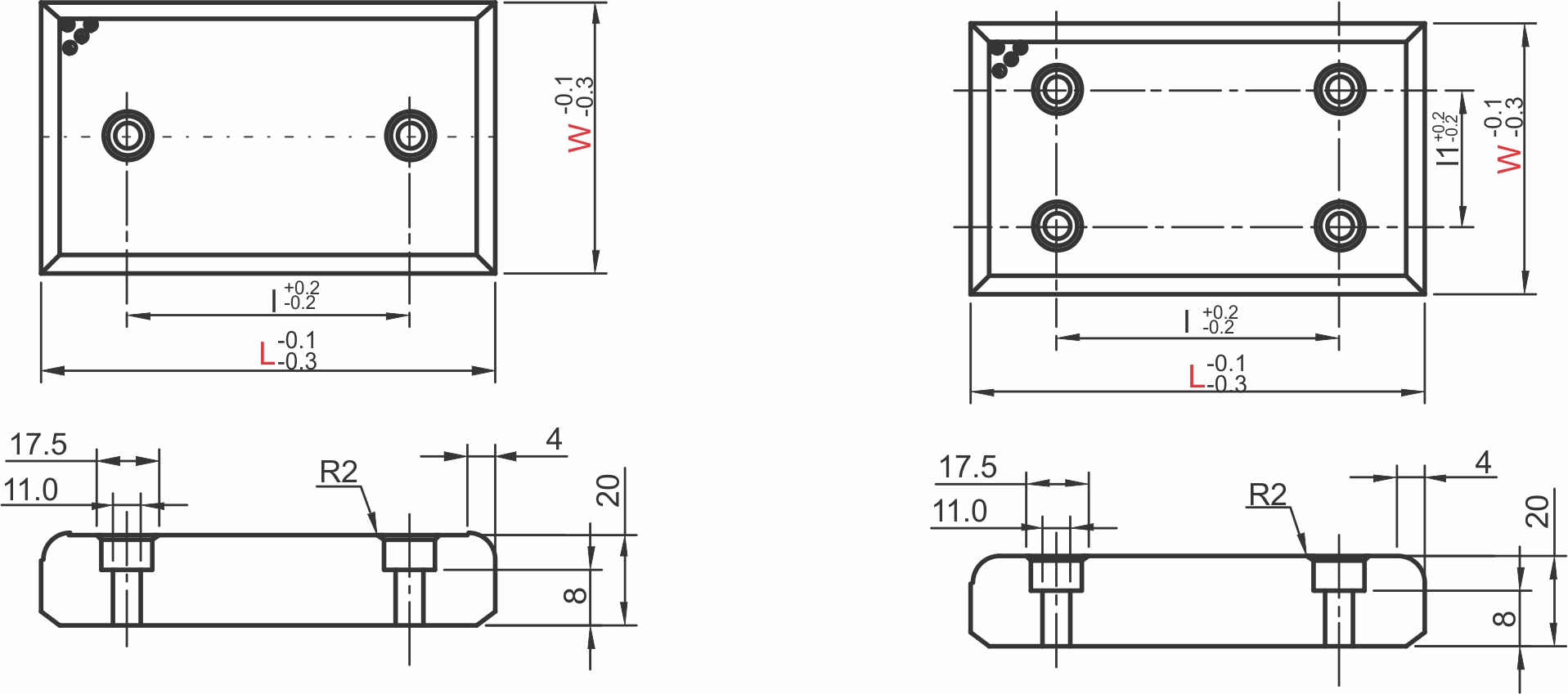

(2 Holes and 4 Holes available)

Width (W)Range :- 100mm to 150mm
Length (L)Range :- 100mm to 300mm

Order Type : Code X W X L
Example : PWP-PB X 100 X 150
Availability – 7 Days
(*Note - This is tentative schedule, may vary as per material availability)

Item Details


Item code	CAD	W in mm	L in mm	l (mm)	l1 (mm)	T (mm)	Material
PWP-PB 28x75		28	75	45	-	20	High Tensile Brass
PWP-PB 28x100		28	100	50	-	20	High Tensile Brass
PWP-PB 28x125		28	125	75	-	20	High Tensile Brass
PWP-PB 28x150		28	150	100	-	20	High Tensile Brass
PWP-PB 38x75		38	75	45	-	20	High Tensile Brass
PWP-PB 38x100		38	100	50	-	20	High Tensile Brass
PWP-PB 38x150		38	150	100	-	20	High Tensile Brass
PWP-PB 48x75		48	75	45	-	20	High Tensile Brass
PWP-PB 48x100		48	100	50	-	20	High Tensile Brass
PWP-PB 48x125		48	125	75	-	20	High Tensile Brass
PWP-PB 48x150		48	150	100	-	20	High Tensile Brass
PWP-PB 48x200		48	200	150	-	20	High Tensile Brass
PWP-PB 58x75		58	75	45	-	20	High Tensile Brass
PWP-PB 58x100		58	100	50	-	20	High Tensile Brass
PWP-PB 58x150		58	100	150	-	20	High Tensile Brass
PWP-PB 75x75		75	75	25	-	20	High Tensile Brass
PWP-PB 75x100		75	100	50	-	20	High Tensile Brass
PWP-PB 75x125		75	125	75	-	20	High Tensile Brass
PWP-PB 75x150		75	150	100	-	20	High Tensile Brass
PWP-PB 75x200		75	200	150	-	20	High Tensile Brass
PWPT-PB 100x100		100	100	50	-	20	High Tensile Brass
PWPT-PB 100x125		100	125	75	-	20	High Tensile Brass
PWPT-PB 100x150		100	150	100	-	20	High Tensile Brass
PWPT-PB 100x200		100	200	150	-	20	High Tensile Brass
PWPT-PB 100x250		100	250	200	-	20	High Tensile Brass
PWPT-PB 100x300		100	300	200	-	20	High Tensile Brass
PWPT-PB 125x125		125	125	75	-	20	High Tensile Brass
PWPT-PB 125x150		125	150	100	-	20	High Tensile Brass
PWPT-PB 125x200		125	200	150	-	20	High Tensile Brass
PWPT-PB 125x250		125	250	200	-	20	High Tensile Brass
PWPT-PB 125x300		125	300	200	-	20	High Tensile Brass
PWPT-PB 125x350		125	350	200	-	20	High Tensile Brass
PWPT-PB 150x150		150	150	200	-	20	High Tensile Brass
PWPT-PB 150x200		150	200	250	-	20	High Tensile Brass
PWP-PB 100x100		100	100	50	50	20	High Tensile Brass
PWP-PB 100x125		100	125	75	50	20	High Tensile Brass
PWP-PB 100x150		100	150	100	50	20	High Tensile Brass
PWP-PB 100x200		100	200	150	50	20	High Tensile Brass
PWP-PB 100x250		100	250	200	50	20	High Tensile Brass
PWP-PB 100x300		100	300	200	50	20	High Tensile Brass
PWP-PB 125x125		125	125	75	50	20	High Tensile Brass
PWP-PB 125x150		125	150	100	50	20	High Tensile Brass
PWP-PB 125x200		125	200	150	50	20	High Tensile Brass
PWP-PB 125x250		125	250	200	50	20	High Tensile Brass
PWP-PB 125x300		125	300	200	50	20	High Tensile Brass
PWP-PB 150x150		150	150	100	100	20	High Tensile Brass
PWP-PB 150x200		150	200	150	100	20	High Tensile Brass
PWP-PB 150x250		150	250	200	100	20	High Tensile Brass
