Spool Retainer - PSRS

Technical Description

Material :- En-8
Hardness :- 38-42HRC
Surface Treatment :- Blackodised

Dia (D) Range :- 10 mm to 32 mm
Length (L) Range :- 10mm to 200 mm

Order Type :- Code X D X L
Example :- PSRS X 16 X 50
Availability – 7 Days
(*Note - This is tentative schedule, may vary as per material availability)

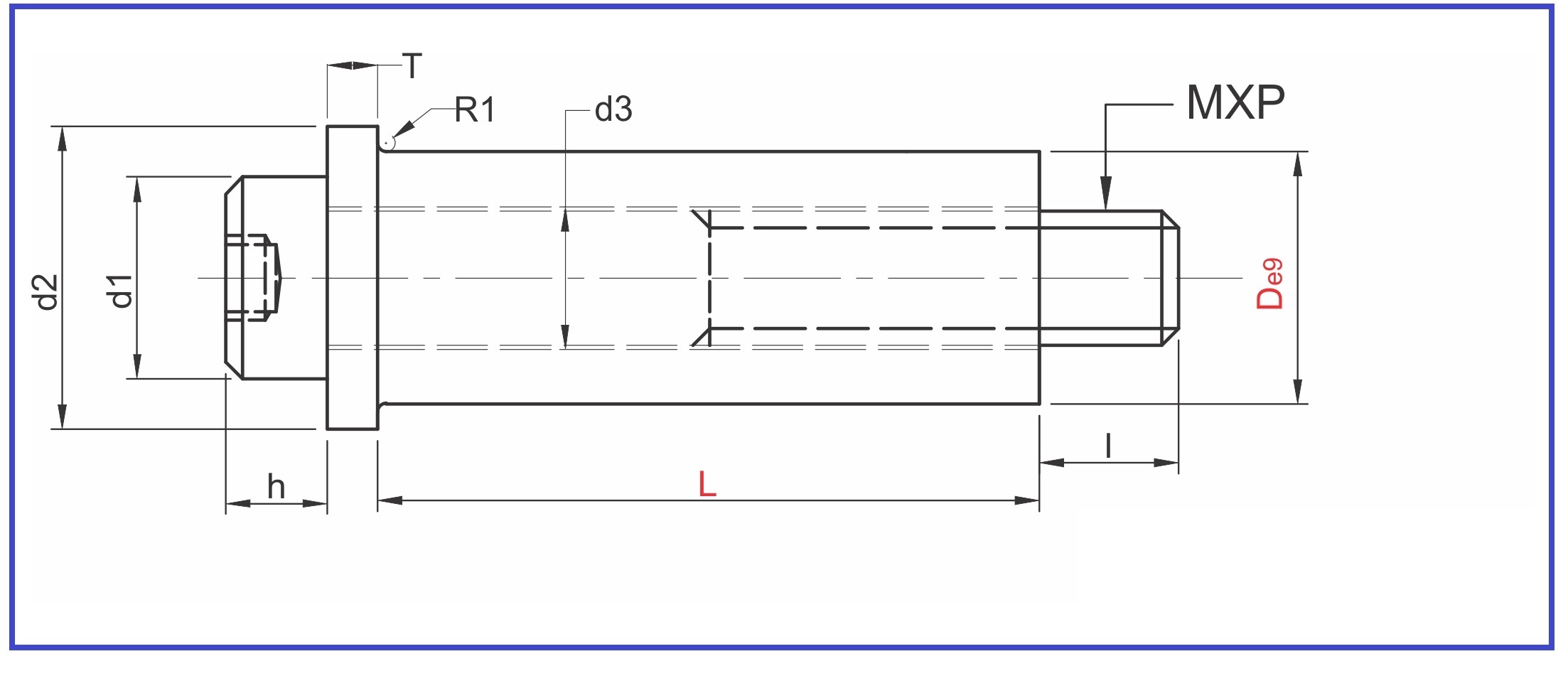

Item Details


Item code	CAD	D mm	L mm	d1 (mm)	h (mm)	l (mm)	MxP (mm)	d2 (mm)	T (mm)
PSRS-10X10		10	10	10	6	10	6x1.0	15	5
PSRS-10X15		10	15	10	6	10	6x1.0	15	5
PSRS-10X20		10	20	10	6	10	6x1.0	15	5
PSRS-10X25		10	25	10	6	10	6x1.0	15	5
PSRS-10X30		10	30	10	6	10	6x1.0	15	5
PSRS-10X35		10	35	10	6	10	6x1.0	15	5
PSRS-10X40		10	40	10	6	10	6x1.0	15	5
PSRS-10X45		10	45	10	6	10	6x1.0	15	5
PSRS-10X50		10	50	10	6	10	6x1.0	15	5
PSRS-10X55		10	55	10	6	10	6x1.0	15	5
PSRS-10X60		10	60	10	6	10	6x1.0	15	5
PSRS-10X65		10	65	10	6	10	6x1.0	15	5
PSRS-10X70		10	70	10	6	10	6x1.0	15	5
PSRS-10X75		10	75	10	6	10	6x1.0	15	5
PSRS-10X80		10	80	10	6	10	6x1.0	15	5
PSRS-10X85		10	85	10	6	10	6x1.0	15	5
PSRS-10X90		10	90	10	6	10	6x1.0	15	5
PSRS-10X100		10	100	10	6	10	6x1.0	15	5
PSRS-13X15		13	15	13	8	15	8x1.25	18	5
PSRS-13X20		13	20	13	8	15	8x1.25	18	5
PSRS-13X25		13	25	13	8	15	8x1.25	18	5
PSRS-13X30		13	30	13	8	15	8x1.25	18	5
PSRS-13X35		13	35	13	8	15	8x1.25	18	5
PSRS-13X40		13	40	13	8	15	8x1.25	18	5
PSRS-13X45		13	45	13	8	15	8x1.25	18	5
PSRS-13X50		13	50	13	8	15	8x1.25	18	5
PSRS-13X55		13	55	13	8	15	8x1.25	18	5
PSRS-13X60		13	60	13	8	15	8x1.25	18	5
PSRS-13X65		13	65	13	8	15	8x1.25	18	5
PSRS-13X70		13	70	13	8	15	8x1.25	18	5
PSRS-13X75		13	75	13	8	15	8x1.25	18	5
PSRS-13X80		13	80	13	8	15	8x1.25	18	5
PSRS-13X85		13	85	13	8	15	8x1.25	18	5
PSRS-13X90		13	90	13	8	15	8x1.25	18	5
PSRS-13X100		13	100	13	8	15	8x1.25	18	5
PSRS-13X110		13	110	13	8	15	8x1.25	18	5
PSRS-13X120		13	120	13	8	15	8x1.25	18	5
PSRS-16X20		16	20	16	10	22	10x1.5	24	8
PSRS-16X25		16	25	16	10	22	10x1.5	24	8
PSRS-16X30		16	30	16	10	22	10x1.5	24	8
PSRS-16X35		16	35	16	10	22	10x1.5	24	8
PSRS-16X40		16	40	16	10	22	10x1.5	24	8
PSRS-16X45		16	45	16	10	22	10x1.5	24	8
PSRS-16X50		16	50	16	10	22	10x1.5	24	8
PSRS-16X55		16	55	16	10	22	10x1.5	24	8
PSRS-16X60		16	60	16	10	22	10x1.5	24	8
PSRS-16X65		16	65	16	10	22	10x1.5	24	8
PSRS-16X70		16	70	16	10	22	10x1.5	24	8
PSRS-16X75		16	75	16	10	22	10x1.5	24	8
PSRS-16X80		16	80	16	10	22	10x1.5	24	8
PSRS-16X85		16	85	16	10	22	10x1.5	24	8
PSRS-16X90		16	90	16	10	22	10x1.5	24	8
PSRS-16X100		16	100	16	10	22	10x1.5	24	8
PSRS-16X110		16	110	16	10	22	10x1.5	24	8
PSRS-16X120		16	120	16	10	22	10x1.5	24	8
PSRS-16X130		16	130	16	10	22	10x1.5	24	8
PSRS-16X140		16	140	16	10	22	10x1.5	24	8
PSRS-16X150		16	150	16	10	22	10x1.5	24	8
PSRS-16X160		16	160	16	10	22	10x1.5	24	8
PSRS-16X170		16	170	16	10	22	10x1.5	24	8
PSRS-20x30		20	30	18	12	20	12x1.75	28	10
PSRS-20x35		20	35	18	12	20	12x1.75	28	10
PSRS-20x40		20	40	18	12	20	12x1.75	28	10
PSRS-20x45		20	45	18	12	20	12x1.75	28	10
PSRS-20x50		20	50	18	12	20	12x1.75	28	10
PSRS-20x55		20	55	18	12	20	12x1.75	28	10
PSRS-20x60		20	60	18	12	20	12x1.75	28	10
PSRS-20x65		20	65	18	12	20	12x1.75	28	10
PSRS-20x70		20	70	18	12	20	12x1.75	28	10
PSRS-20x75		20	75	18	12	20	12x1.75	28	10
PSRS-20x80		20	80	18	12	20	12x1.75	28	10
PSRS-20x85		20	85	18	12	20	12x1.75	28	10
PSRS-20x90		20	90	18	12	20	12x1.75	28	10
PSRS-20X100		20	100	18	12	20	12x1.75	28	10
PSRS-20x110		20	110	18	12	20	12x1.75	28	10
PSRS-20x120		20	120	18	12	20	12x1.75	28	10
PSRS-20x130		20	130	18	12	20	12x1.75	28	10
PSRS-20x140		20	140	18	12	20	12x1.75	28	10
PSRS-20x150		20	150	18	12	20	12x1.75	28	10
PSRS-20x160		20	160	18	12	20	12x1.75	28	10
PSRS-20x170		20	170	18	12	20	12x1.75	28	10
PSRS-20x180		20	180	18	12	20	12x1.75	28	10
PSRS-25x40		25	40	24	16	27	16x2.0	36	13
PSRS-25x45		25	45	24	16	27	16x2.0	36	13
PSRS-25x50		25	50	24	16	27	16x2.0	36	13
PSRS-25x55		25	55	24	16	27	16x2.0	36	13
PSRS-25x60		25	60	24	16	27	16x2.0	36	13
PSRS-25x65		25	65	24	16	27	16x2.0	36	13
PSRS-25x70		25	70	24	16	27	16x2.0	36	13
PSRS-25x75		25	75	24	16	27	16x2.0	36	13
PSRS-25x80		25	80	24	16	27	16x2.0	36	13
PSRS-25x85		25	85	24	16	27	16x2.0	36	13
PSRS-25x90		25	90	24	16	27	16x2.0	36	13
PSRS-25x100		25	100	24	16	27	16x2.0	36	13
PSRS-25x110		25	110	24	16	27	16x2.0	36	13
PSRS-25x120		25	120	24	16	27	16x2.0	36	13
PSRS-25x130		25	130	24	16	27	16x2.0	36	13
PSRS-25x140		25	140	24	16	27	16x2.0	36	13
PSRS-25x150		25	150	24	16	27	16x2.0	36	13
PSRS-25x160		25	160	24	16	27	16x2.0	36	13
PSRS-25x170		25	170	24	16	27	16x2.0	36	13
PSRS-25x180		25	180	24	16	27	16x2.0	36	13
PSRS-25x200		25	200	24	16	27	16x2.0	36	13
PSRS-32x60		32	60	30	20	34	20x2.5	45	16
PSRS-32x70		32	70	30	20	34	20x2.5	45	16
PSRS-32x80		32	80	30	20	34	20x2.5	45	16
PSRS-32x90		32	90	30	20	34	20x2.5	45	16
PSRS-32x100		32	100	30	20	34	20x2.5	45	16
PSRS-32x110		32	110	30	20	34	20x2.5	45	16
PSRS-32x120		32	120	30	20	34	20x2.5	45	16
PSRS-32x130		32	130	30	20	34	20x2.5	45	16
PSRS-32x140		32	140	30	20	34	20x2.5	45	16
PSRS-32x150		32	150	30	20	34	20x2.5	45	16
PSRS-32x160		32	160	30	20	34	20x2.5	45	16
PSRS-32x170		32	170	30	20	34	20x2.5	45	16
PSRS-32x180		32	180	30	20	34	20x2.5	45	16
PSRS-32x200		32	190	30	20	34	20x2.5	45	16
