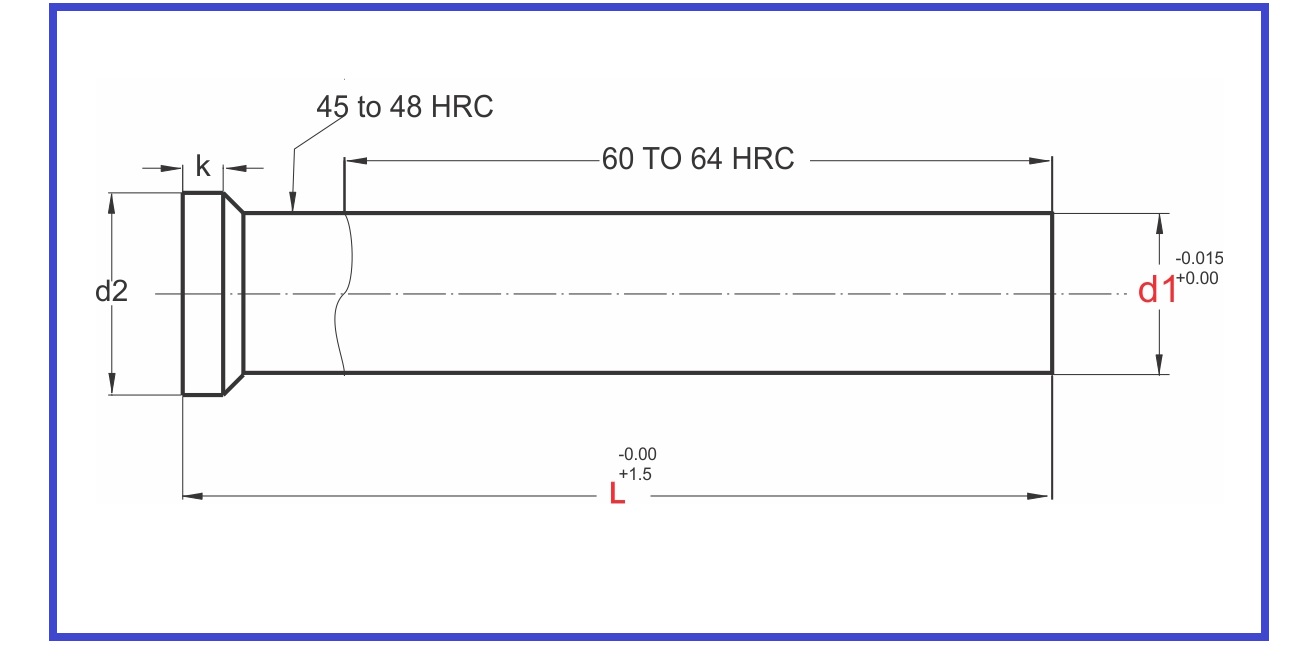

Piercing Punch Heavy Duty Type H

Technical Description

Punch Material :- High Speed Steel (HSS) Grade M2 / HcHCr Grade, D2 (for sizes above 12mm)
Tip Hardness :- 60 - 62 HRC
Dia (d1) Range :- 4 mm to 20 mm (Increment of 0.1)

Length (L) Range :- 70mm to 100 mm

Order Type :- Punch (Type) Dia (d1) X Length (L)
Example : - Punch (H) Dia 8 X 80
Availability - 7 Days (may vary as per material availability)
Note : These punches are to be used where sheet thickness are higher.
