Item Details

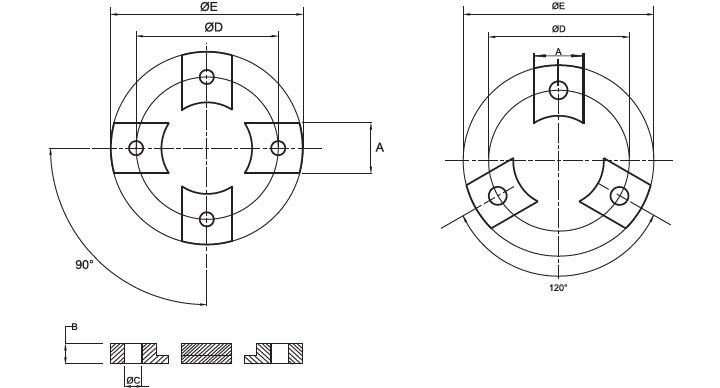

| Item code | CAD | Type in mm | A (mm) | B (mm) | Dia C (mm) | Dia D (mm) | E (mm) |
|---|---|---|---|---|---|---|---|
| Gas Spring Mounting 38-SPC | 38 SPC | 20 | 7 | 7 | 56.6 | 76.6 | |
| Gas Spring Mounting 45-SPC | 45 SPC | 25 | 7 | 9 | 70.7 | 95.8 | |
| Gas Spring Mounting 50-SPC | 50 SPC | 30 | 12 | 9 | 80 | 110 | |
| Gas Spring Mounting 63-SPC | 63 SPC | 30 | 12 | 11 | 92 | 122 | |
| Gas Spring Mounting 75-SPC | 75 SPC | 30 | 12 | 11 | 104 | 134 | |
| Gas Spring Mounting 95-SPC | 95 SPC | 40 | 12 | 13 | 130 | 170 | |
| Gas Spring Mounting 120-SPC | 120 SPC | 50 | 12 | 13 | 155 | 195 | |
| Gas Spring Mounting 150-SPC | 150 SPC | 50 | 12 | 17 | 195 | 220 |
