Wear Plate - PWP - CI

Technical Description

Plate Material:- Casting CI Grade FG260

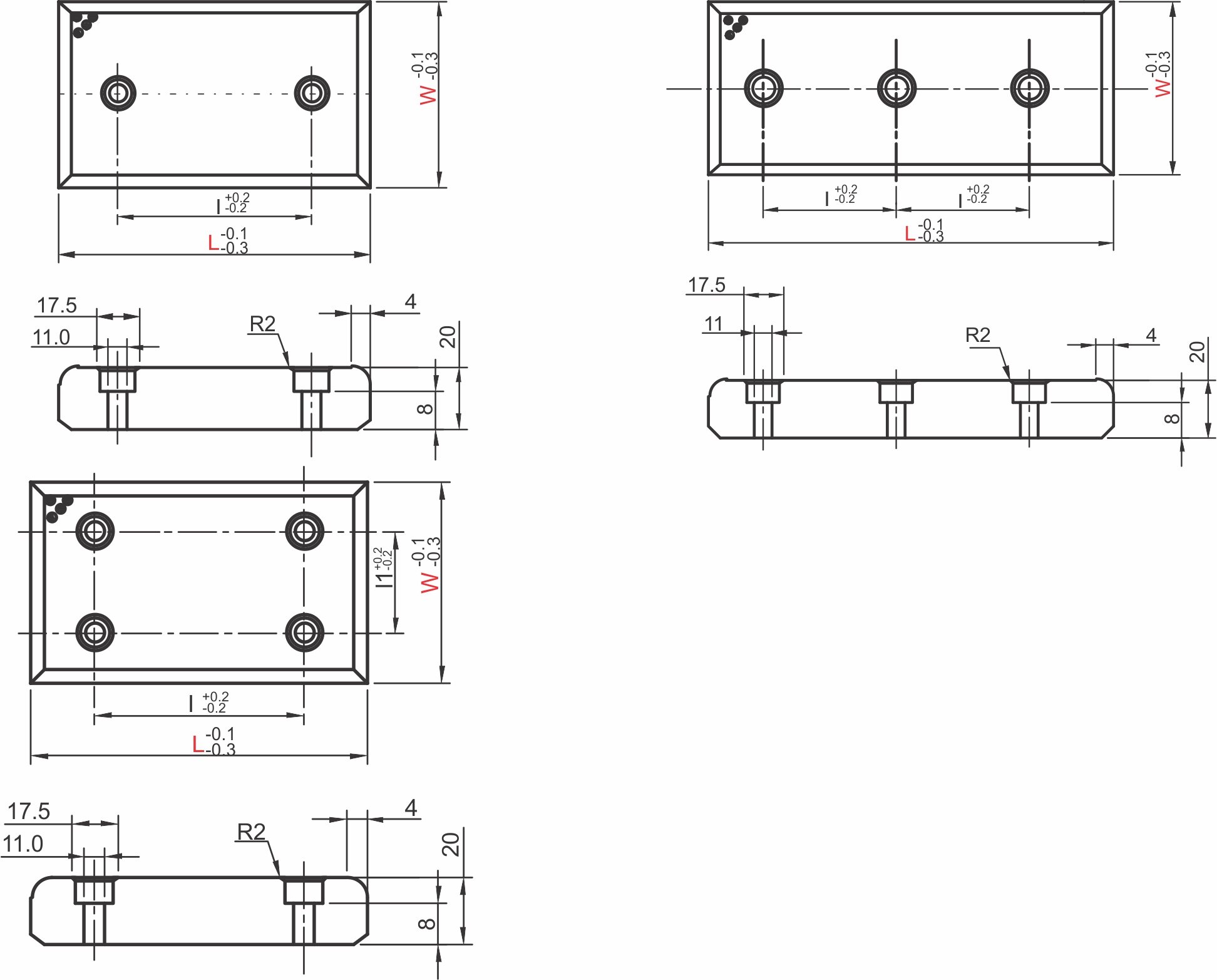

(2 Holes, 3 Holes and 4 Holes available)

Width (W)Range :- 100mm to 200mm
Length (L)Range :- 75mm to 300mm

Order Type : Code X W X L
Example : PWP-CI X 100 X 150
Availability – Ready
(*Note - This is tentative schedule, may vary as per material availability)

Item Details


Item code	CAD	W in mm	L in mm	l (mm)	l1 (mm)	T (mm)	Material
PWP-CI 28x75		28	75	45	-	20	Cast Iron
PWP-CI 28x100		28	100	50	-	20	Cast Iron
PWP-CI 28x125		28	125	75	-	20	Cast Iron
PWP-CI 28x150		28	150	100	-	20	Cast Iron
PWP-CI 28x200		28	200	150	-	20	Cast Iron
PWP-CI 38x75		38	75	45	-	20	Cast Iron
PWP-CI 38x100		38	100	50	-	20	Cast Iron
PWP-CI 38x125		38	125	75	-	20	Cast Iron
PWP-CI 38x150		38	150	100	-	20	Cast Iron
PWP-CI 38x200		38	200	150	-	20	Cast Iron
PWP-CI 48x75		48	75	45	-	20	Cast Iron
PWP-CI 48x100		48	100	50	-	20	Cast Iron
PWP-CI 48x125		48	125	75	-	20	Cast Iron
PWP-CI 48x150		48	150	100	-	20	Cast Iron
PWP-CI 48x200		48	200	150	-	20	Cast Iron
PWP-CI 58x75		58	75	45	-	20	Cast Iron
PWP-CI 58x100		58	100	50	-	20	Cast Iron
PWP-CI 58x150		58	150	100	-	20	Cast Iron
PWP-CI 75x75		75	75	25	-	20	Cast Iron
PWP-CI 75x100		75	100	50	-	20	Cast Iron
PWP-CI 75x125		75	125	75	-	20	Cast Iron
PWP-CI 75x150		75	150	100	-	20	Cast Iron
PWP-CI 75x200		75	200	150	-	20	Cast Iron
PWPZ-CI 100x100		100	100	50	-	20	Cast Iron
PWPZ-CI 100x125		100	125	75	-	20	Cast Iron
PWPZ-CI 100x150		100	150	100	-	20	Cast Iron
PWPZ-CI 100x200		100	200	150	-	20	Cast Iron
PWPZ-CI 100x250		100	250	200	-	20	Cast Iron
PWPZ-CI 125x125		125	125	75	-	20	Cast Iron
PWPZ-CI 125x150		125	150	100	-	20	Cast Iron
PWPZ-CI 125x200		125	200	150	-	20	Cast Iron
PWPZ-CI 125x250		125	250	200	-	20	Cast Iron
PWPZ-CI 150x150		150	150	100	-	20	Cast Iron
PWPZ-CI 150x200		150	200	150	-	20	Cast Iron
PWPZ-CI 150x250		150	250	200	-	20	Cast Iron
PWP-CI 100x100		100	100	200	50	20	Cast Iron
PWP-CI 100x125		100	125	75	50	20	Cast Iron
PWP-CI 100x150		100	150	100	50	20	Cast Iron
PWP-CI 100x200		100	200	150	50	20	Cast Iron
PWP-CI 100x250		100	250	200	50	20	Cast Iron
PWP-CI 125x125		125	125	75	50	20	Cast Iron
PWP-CI 125x150		125	150	100	50	20	Cast Iron
PWP-CI 125x200		125	200	150	50	20	Cast Iron
PWP-CI 125x250		125	250	200	50	20	Cast Iron
PWP-CI 150x150		150	150	100	100	20	Cast Iron
PWP-CI 150x200		150	200	150	100	20	Cast Iron
PWP-CI 150x250		150	250	200	100	20	Cast Iron
PWP-CI 150x300		150	300	250	100	20	Cast Iron
PWP-CI 200x200		200	200	150	150	20	Cast Iron
PWP-CI 200x250		200	250	200	150	20	Cast Iron
PWP-CI 200x300		200	300	250	150	20	Cast Iron
