Spool Retainer - PSRZ

Technical Description

Material :- En-8
Hardness :- 38-42HRC
Surface Treatment :- Blackodised

Dia (D) Range :- 20 mm to 44 mm
Length (L) Range :- 40mm to 130 mm

Order Type :- Code X D X L
Example :- PSRZ X 20 X 50
Availability – 7 Days
(*Note - This is tentative schedule, may vary as per material availability)

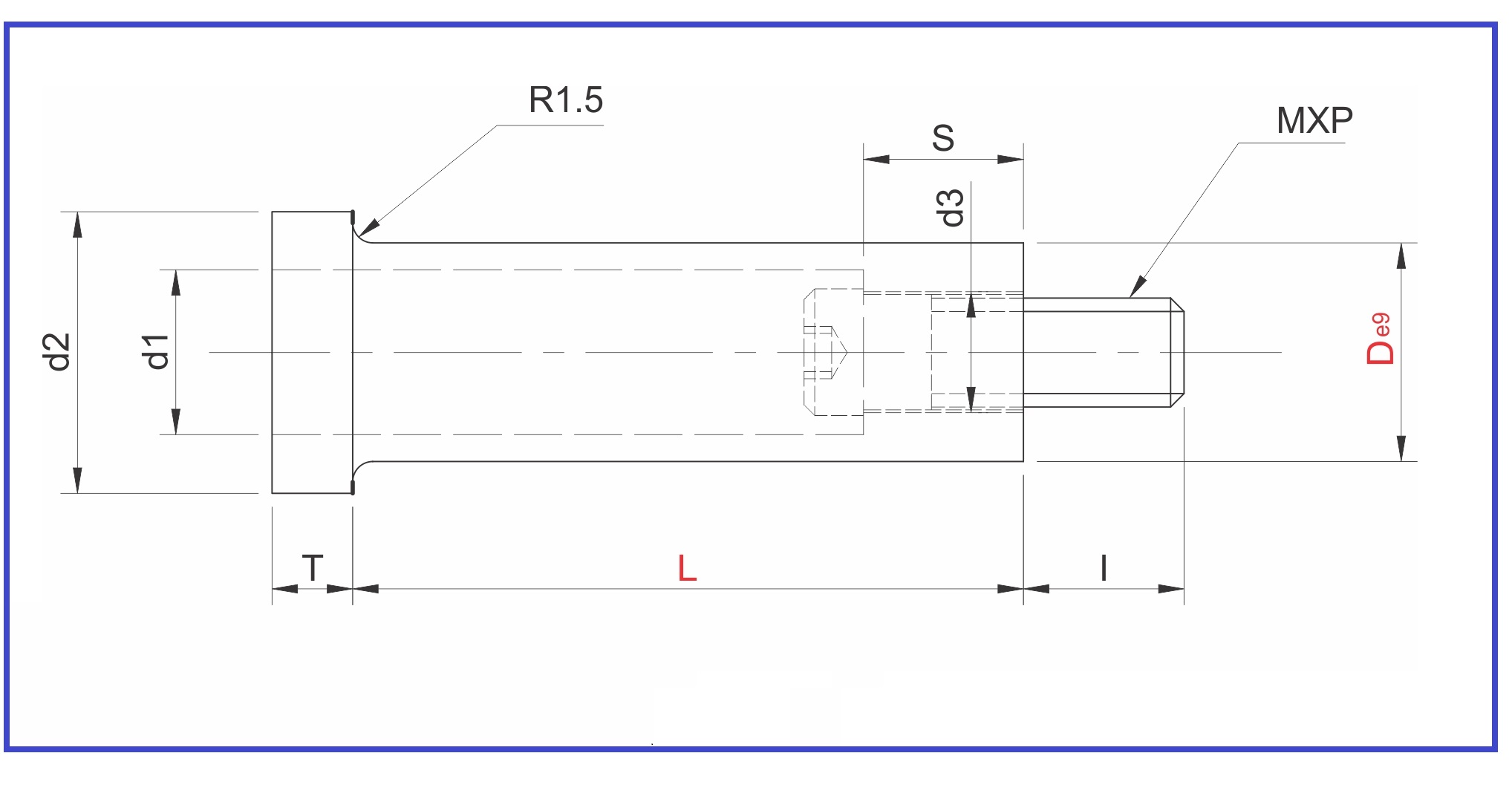

Item Details


Item code	CAD	D mm	L mm	d1 (mm)	h (mm)	l (mm)	MxP (mm)	d2 (mm)	T (mm)	s (mm)
PSRZ-20x40		20	40	15	-	15	8x1.25	26	6	20
PSRZ-20x50		20	50	15	-	15	8x1.25	26	6	20
PSRZ-20x60		20	60	15	-	15	8x1.25	26	6	20
PSRZ-20x70		20	70	15	-	15	8x1.25	26	6	20
PSRZ-20x80		20	80	15	-	15	8x1.25	26	6	20
PSRZ-20x90		20	90	15	-	15	8x1.25	26	6	20
