Medium Load Spring - Series P3

7 Reviews/Write A Review

Technical Description

Colour - Orange
Material - Spring Steel
Compression-
Long Life -25% of length
Medium Life - 30% of length
Average Life - 34% of length
Diameter Range - 20mm to 32mm
Length Range - 25mm to 200mm
Order Type- Code
Example - P3-32X50
Availability - Ready Stock
(*Note - This is tentative schedule, may vary as per material availability)

Brand : PAWAN

Item Details

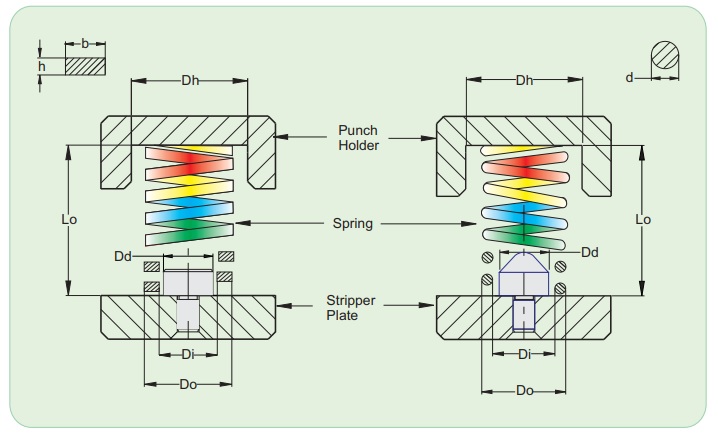

Item code CAD Dh in mm Dd in mm Lo in mm PC in Kg per mm MaXimum Life Pm (Kg)MaXimum Life Lm (mm)Average Life Pa (Kg)Average Life La (mm)
P3-20X25 20102517.1119.47.0149.38.8
P3-20X30 20103013.6113.88.4142.310.5
P3-20X35 20103511.3110.69.8138.312.3
P3-20X40 2010409.7108.111.2135.114.0
P3-20X50 2010506.996.614.0120.817.5
P3-20X55 2010556.498.615.4123.219.3
P3-20X60 2010605.897.816.8122.221.0
P3-20X65 2010655.397.218.2121.522.8
P3-20X70 2010705.1100.019.6125.024.5
P3-20X75 2010754.493.021.0116.326.3
P3-20X80 2010804.396.322.4120.428.0
P3-20X90 2010903.794.025.2117.531.5
P3-20X100 20101003.290.728.0113.435.0
P3-20X110 20101102.989.930.8112.438.5
P3-20X125 20101252.690.335.0112.943.8
P3-20X140 20101402.389.439.2111.749.0
P3-20X150 20101502.189.942.0112.452.5
P3-25X25 2512.52526.6186.07.0232.58.8
P3-25X30 2512.53020.0168.38.4210.310.5
P3-25X35 2512.53516.6163.19.8203.812.3
P3-25X40 2512.54014.0157.211.2196.614.0
P3-25X50 2512.55010.6147.714.0184.617.5
P3-25X55 2512.5559.4144.815.4181.019.3
P3-25X60 2512.5608.2137.416.8171.821.0
P3-25X65 2512.5657.7140.918.2176.122.8
P3-25X70 2512.5707.0138.019.6172.524.5
P3-25X75 2512.5756.6138.621.0173.326.3
P3-25X80 2512.5806.0134.422.4168.028.0
P3-25X90 2512.5905.4134.825.2168.531.5
P3-25X100 2512.51004.7132.428.0165.635.0
P3-25X125 2512.51253.9135.135.0168.943.8
P3-25X175 2512.51752.9142.149.0177.661.3
P3-32X50 32155017.0238.114.0297.717.5
P3-32X55 32155515.2233.615.4292.019.3
P3-32X60 32156013.2222.416.8278.021.0
P3-32X65 32156512.8232.818.2291.022.8
P3-32X70 32157011.5226.219.6282.724.5
P3-32X75 32157510.3215.721.0269.626.3
P3-32X80 3215809.3207.222.4259.028.0
P3-32X90 3215908.6217.725.2272.231.5
P3-32X100 32151007.6213.428.0266.735.0
P3-32X110 32151106.9212.530.8265.738.5
P3-32X125 32151256.0210.735.0263.443.8
P3-32X140 32151405.7223.439.2279.349.0
P3-32X150 32151504.9204.142.0255.252.5
P3-32X175 32151754.0196.049.0245.061.3
P3-32X200 32152003.5196.056.0245.070.0
