Guide Bush - PGBB

Technical Description

Bush Material :- 20 Mn Cr5/En 353
Bush Hardness :- 55-58 HRC.

Length (L)Range :- 9mm to 136mm

Order Type :- Code d1-d3-S2-L
Example :- PGBB 22-30-46-75
Availability – 7 Days
(*Note - This is tentative schedule, may vary as per material availability)

Item Details

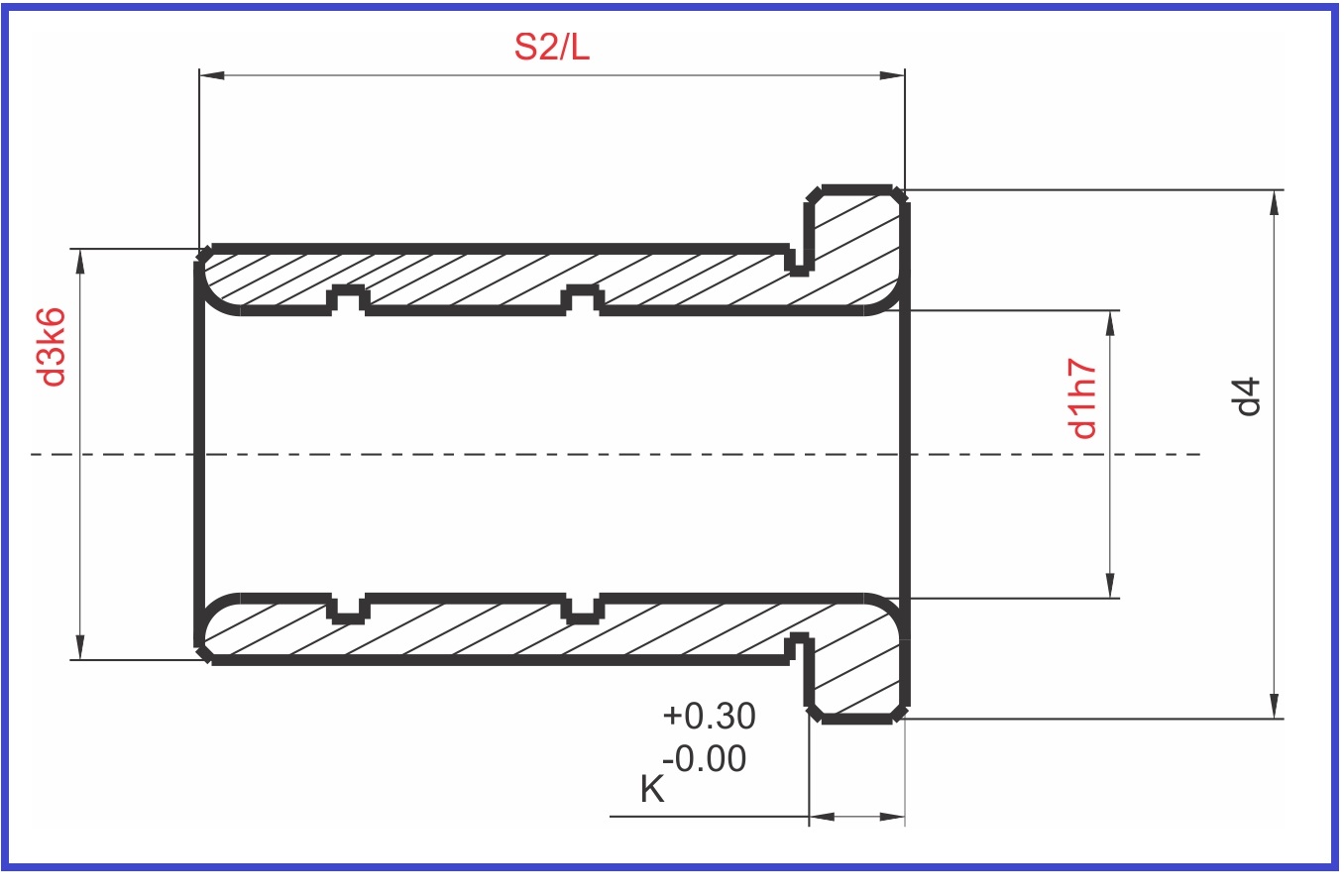

Item code	CAD	Dia d1 mm	S2 mm	L mm	d3 mm	d4 mm	k mm
PGBB - 9x14x9x9		9	9	9	14	16	3
PGBB - 9x14x12x12		9	12	12	14	16	3
PGBB - 9x14x17x17		9	17	17	14	16	3
PGBB - 9x14x22x22		9	22	22	14	16	3
PGBB - 9x14x27x27		9	27	27	14	16	3
PGBB - 9x14x36x36		9	36	36	14	16	3
PGBB - 9x14x46x46		9	46	46	14	16	3
PGBB - 12x18x17x17		12	17	17	18	23	6
PGBB - 12x18x22x22		12	22	22	18	23	6
PGBB - 12x18x27x27		12	27	27	18	23	6
PGBB - 12x18x36x36		12	36	36	18	23	6
PGBB - 12x18x46x46		12	46	46	18	23	6
PGBB - 12x18x56x56		12	56	56	18	23	6
PGBB - 14x20x12x12		14	12	12	20	25	6
PGBB - 14x20x17x17		14	17	17	20	25	6
PGBB - 14x20x22x22		14	22	22	20	25	6
PGBB - 14x20x27x27		14	27	27	20	25	6
PGBB - 14x20x36x36		14	36	36	20	25	6
PGBB - 14x20x46x46		14	46	46	20	25	6
PGBB - 14x20x56x56		14	56	56	20	25	6
PGBB - 16x22x17x17		16	17	17	22	27	6
PGBB - 16x22x22x22		16	22	22	22	27	6
PGBB - 16x22x27x27		16	27	27	22	27	6
PGBB - 16x22x36x36		16	36	36	22	27	6
PGBB - 16x22x46x46		16	46	46	22	27	6
PGBB - 16x22x56x56		16	56	56	22	27	6
PGBB - 18x26x17x17		18	17	17	26	31	6
PGBB - 18x26x22x22		18	22	22	26	31	6
PGBB - 18x26x27x27		18	27	27	26	31	6
PGBB - 18x26x36x36		18	36	36	26	31	6
PGBB - 18x26x46x46		18	46	46	26	31	6
PGBB - 18x26x56x56		18	56	56	26	31	6
PGBB - 18x26x66x66		18	66	66	26	31	6
PGBB - 18x26x76x76		18	76	76	26	31	6
PGBB - 22x30x17x17		22	17	17	30	35	6
PGBB - 22x30x22x22		22	22	22	30	35	6
PGBB - 22x30x27x27		22	27	27	30	35	6
PGBB - 22x30x36x36		22	36	36	30	35	6
PGBB - 22x30x46x46		22	46	46	30	35	6
PGBB - 22x30x56x56		22	56	56	30	35	6
PGBB - 22x30x66x66		22	66	66	30	35	6
PGBB - 22x30x76x76		22	76	76	30	35	6
PGBB - 22x30x86x86		22	86	86	30	35	6
PGBB - 22x30x96x96		22	96	96	30	35	6
PGBB - 30x42x27x27		30	27	27	42	47	6
PGBB - 30x42x36x36		30	36	36	42	47	6
PGBB - 30x42x46x46		30	46	46	42	47	6
PGBB - 30x42x56x56		30	56	56	42	47	6
PGBB - 30x42x66x66		30	66	66	42	47	6
PGBB - 30x42x76x76		30	76	76	42	47	6
PGBB - 30x42x86x86		30	86	86	42	47	6
PGBB - 30x42x96x96		30	96	96	42	47	6
PGBB - 30x42x116x116		30	116	116	42	47	6
PGBB - 40x54x46x46		40	46	46	54	60	10
PGBB - 40x54x56x56		40	56	56	54	60	10
PGBB - 40x54x66x66		40	66	66	54	60	10
PGBB - 40x54x76x76		40	76	76	54	60	10
PGBB - 40x54x86x86		40	86	86	54	60	10
PGBB - 40x54x96x96		40	96	96	54	60	10
PGBB - 42x54x116x116		40	116	16	54	60	10
PGBB - 42x54x136x136		40	136	136	54	60	10
PGBB - 50x66x76x76		50	76	76	66	72	10
PGBB - 50x66x96x96		50	96	96	66	72	10
PGBB - 50x66x116x116		50	116	116	66	72	10
PGBB - 50x66x136x136		50	136	136	66	72	10
PGBB - 60x80x96x96		60	96	96	80	86	20
PGBB - 60x80x116x116		60	116	116	80	86	20
PGBB - 60x80x136x136		60	136	136	80	86	20
PGBB-9x14x46x56		9	56	46	14	16	3
PGBB-9x14x46x66		9	66	46	14	16	3
PGBB - 14x20x56x66		14	66	56	20	23	6
PGBB - 14x20x56x76		14	76	56	20	23	6
PGBB - 14x20x56x86		14	86	56	20	23	6
PGBB-14x20x56x96		14	96	56	20	23	6
PGBB-18x26x76x86		18	86	76	26	31	6
PGBB-18x26x76x96		18	96	76	26	31	6
PGBB-18x26x76x116		18	116	76	26	31	6
PGBB-22x30x96x116		22	116	96	30	35	6
PGBB-22x30x96x136		22	136	96	30	35	6
PGBB-30x42x116x136		30	136	116	42	47	6
PGBB-30x42x116x156		30	156	116	42	47	6
PGBB-40x54x136x156		40	156	136	54	60	10
PGBB-40x54x136x196		40	196	136	54	60	10
PGBB-40x54x136x246		40	246	136	54	60	10
PGBB-50x66x136x156		50	156	136	66	72	10
PGBB-50x66x136x196		50	196	136	66	72	10
PGBB-60x80x136x156		60	156	136	80	86	20
PGBB-60x80x136x196		60	196	136	80	86	20
PGBB-60x80x136x246		60	246	136	80	86	20
