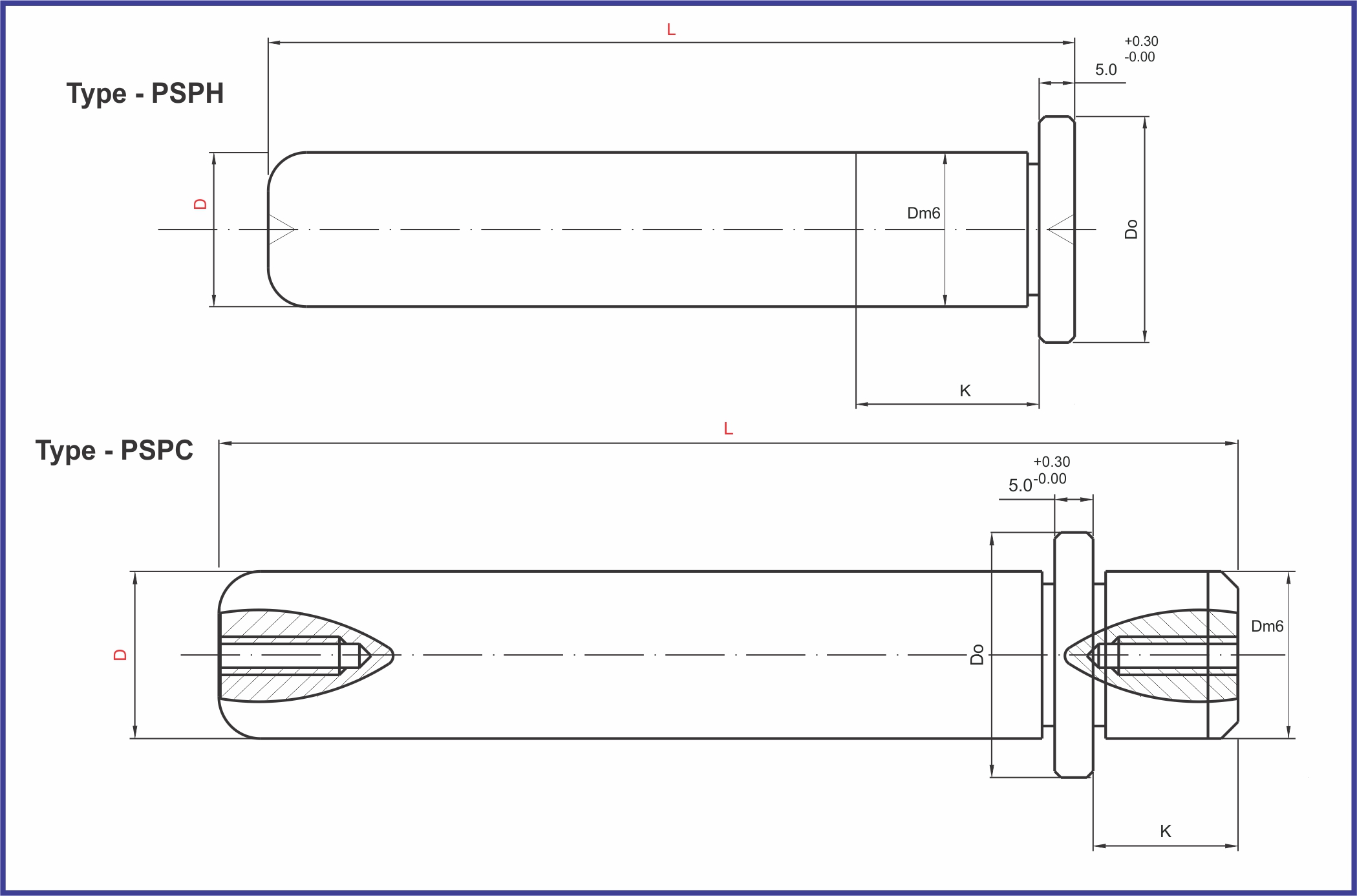

Stripper Guide Pin - PSPH

Technical Description

Pin Material :- En 353
Pin Hardness :- 53-55 HRC.

Dia (D)Range :- 8mm to 25mm
Length (L)Range :- 50mm to 120mm

Order Type :- Code X Dia D X Length L
Example :- PSPH X 16 X 80
Availability – 7 Days
(*Note - This is tentative schedule, may vary as per material availability)

Item Details


Item code	CAD	D in mm	L in mm	Do (mm)	k (mm)
PSPH - 8x50		50	11	8
PSPH - 8x60		60	11	8
PSPH - 10x50		50	13	13
PSPH - 10x60		60	13	13
PSPH - 10x80		80	13	13
PSPH - 16x50		50	19	18
PSPH - 16x60		60	19	18
PSPH - 16x80		80	19	18
PSPH - 16x100		100	19	18
PSPH - 16x120		120	19	18
PSPH - 20x60		60	23	22
PSPH - 20x80		80	23	22
PSPH - 20x100		100	23	22
PSPH - 20x120		120	23	22
PSPH - 25x80		80	28	28
PSPH - 25x100		100	28	28
PSPH - 25x120		120	28	28
