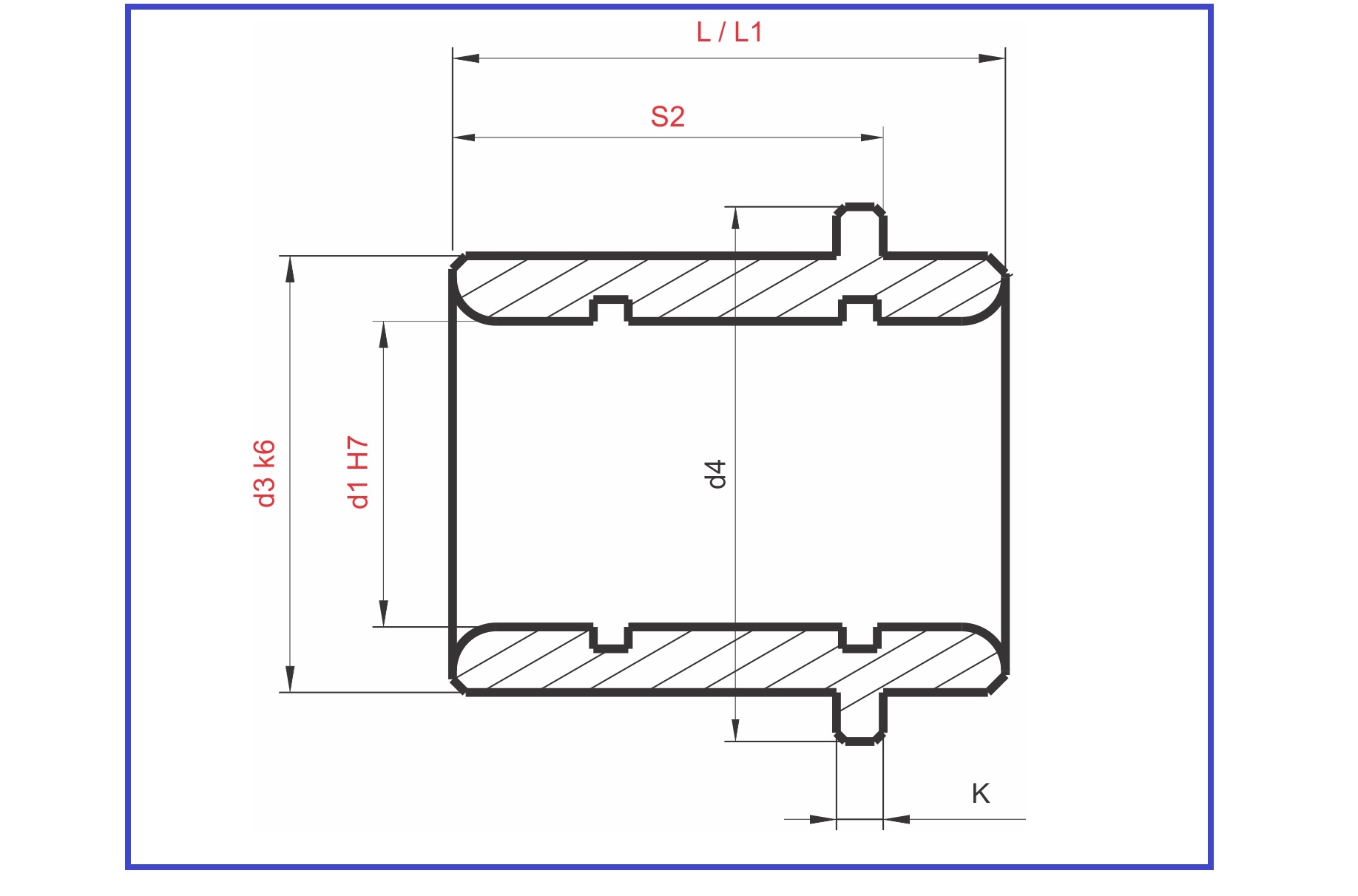

Guide Bush - PGBA

Technical Description

Bush Material :- 20 Mn Cr5/En 353
Bush Hardness :- 55-58 HRC.

Length (L)Range :- 15mm to 258mm

Order Type :- Code d1-d3-S2-L
Example :- PGBA 22-30-46-75
Availability – 7 Days
(*Note - This is tentative schedule, may vary as per material availability)

Item Details


Item code	CAD	Dia d1 mm	L mm	L1 mm	f mm	K mm	d3 mm	d4 mm
PGBA - 9x14x12x15		9	46	15	3	3	14	16
PGBA - 9x14x17x20		9	46	20	3	3	14	16
PGBA - 9x14x22x25		9	46	25	3	3	14	16
PGBA - 9x14x27x30		9	46	30	3	3	14	16
PGBA - 9x14x36x39		9	46	39	3	3	14	16
PGBA - 9x14x46x49		9	46	49	3	3	14	16
PGBA - 9x14x56x59		9	46	59	3	3	14	16
PGBA - 9x14x66x69		9	46	69	3	3	14	16
PGBA - 14x20x17x26		14	56	26	9	6	20	25
PGBA - 14x20x22x31		14	56	31	9	6	20	25
PGBA - 14x20x27x36		14	56	36	9	6	20	25
PGBA - 14x20x36x45		14	56	45	9	6	20	25
PGBA - 14x20x46x55		14	56	55	9	6	20	25
PGBA - 14x20x56x65		14	56	65	9	6	20	25
PGBA - 14x20x66x75		14	56	75	9	6	20	25
PGBA - 14x20x76x85		14	56	85	9	6	20	25
PGBA - 14x20x86x95		14	56	95	9	6	20	25
PGBA - 14x20x96x105		14	56	105	9	6	20	25
PGBA - 14x20x116x125		14	56	125	9	6	20	25
PGBA - 18x26x17x26		18	76	26	9	6	26	31
PGBA - 18x26x22x31		18	76	31	9	6	26	31
PGBA - 18x26x27x36		18	76	36	9	6	26	31
PGBA - 18x26x36x45		18	76	45	9	6	26	31
PGBA - 18x26x46x55		18	76	55	9	6	26	31
PGBA - 18x26x56x65		18	76	65	9	6	26	31
PGBA - 18x26x66x75		18	76	75	9	6	26	31
PGBA - 18x26x76x85		18	76	85	9	6	26	31
PGBA - 18x26x86x95		18	76	95	9	6	26	31
PGBA - 18x26x96x105		18	76	105	9	6	26	31
PGBA - 18x26x116x125		18	76	125	9	6	26	31
PGBA - 18x26x136x145		18	76	145	9	6	26	31
PGBA - 22x30x17x26		22	96	26	9	6	30	35
PGBA - 22x30x22x31		22	96	31	9	6	30	35
PGBA - 22x30x27x36		22	96	36	9	6	30	35
PGBA - 22x30x36x45		22	96	45	9	6	30	35
PGBA - 22x30x46x55		22	96	55	9	6	30	35
PGBA - 22x30x56x65		22	96	65	9	6	30	35
PGBA - 22x30x66x75		22	96	75	9	6	30	35
PGBA - 22x30x76x86		22	96	85	9	6	30	35
PGBA - 22x30x86x95		22	96	95	9	6	30	35
PGBA - 22x30x96x105		22	96	105	9	6	30	35
PGBA - 22x30x116x125		22	96	125	9	6	30	35
PGBA - 22x30x136x146		22	96	146	9	6	30	35
PGBA - 22x30x156x165		22	96	165	9	6	30	35
PGBA - 30x42x27x36		30	116	36	9	6	42	47
PGBA - 30x42x36x45		30	116	45	9	6	42	47
PGBA - 30x42x46x55		30	116	55	9	6	42	47
PGBA - 30x42x56x65		30	116	65	9	6	42	47
PGBA - 30x42x66x75		30	116	75	9	6	42	47
PGBA - 30x42x76x85		30	116	85	9	6	42	47
PGBA - 30x42x86x95		30	116	95	9	6	42	47
PGBA - 30x42x96x105		30	116	105	9	6	42	47
PGBA - 30x42x116x125		30	116	125	9	6	42	47
PGBA - 30x42x136x146		30	116	146	9	6	42	47
PGBA - 30x42x156x165		30	116	165	9	6	42	47
PGBA - 30x42x196x205		30	116	205	9	6	42	47
PGBA - 40x54x46x58		40	136	58	12	10	54	60
PGBA - 40x54x56x68		40	136	68	12	10	54	60
PGBA - 40x54x66x78		40	136	78	12	10	54	60
PGBA - 40x54x76x88		40	136	88	12	10	54	60
PGBA - 40x54x86x98		40	136	98	12	10	54	60
PGBA - 40x54x96x108		40	136	108	12	10	54	60
PGBA - 40x54x116x128		40	136	128	12	10	54	60
PGBA - 40x54x136x148		40	136	148	12	10	54	60
PGBA - 40x54x156x168		40	136	168	12	10	54	60
PGBA - 40x54x196x208		40	136	208	12	10	54	60
PGBA - 40x54x246x258		40	136	258	12	10	54	60
