Stripper Guide Pin - PSPN

Technical Description

Pin Material :- 20 MnCr5 / En353
Pin Hardness :- 55-58 HRC.

Dia (D)Range :- 8mm to 25mm
Length (L)Range :- 40mm to 140mm

Order Type :- Code X Dia D X Length L
Example :- PSPN X 20 X 100
Availability – 7 Days
(*Note - This is tentative schedule, may vary as per material availability)

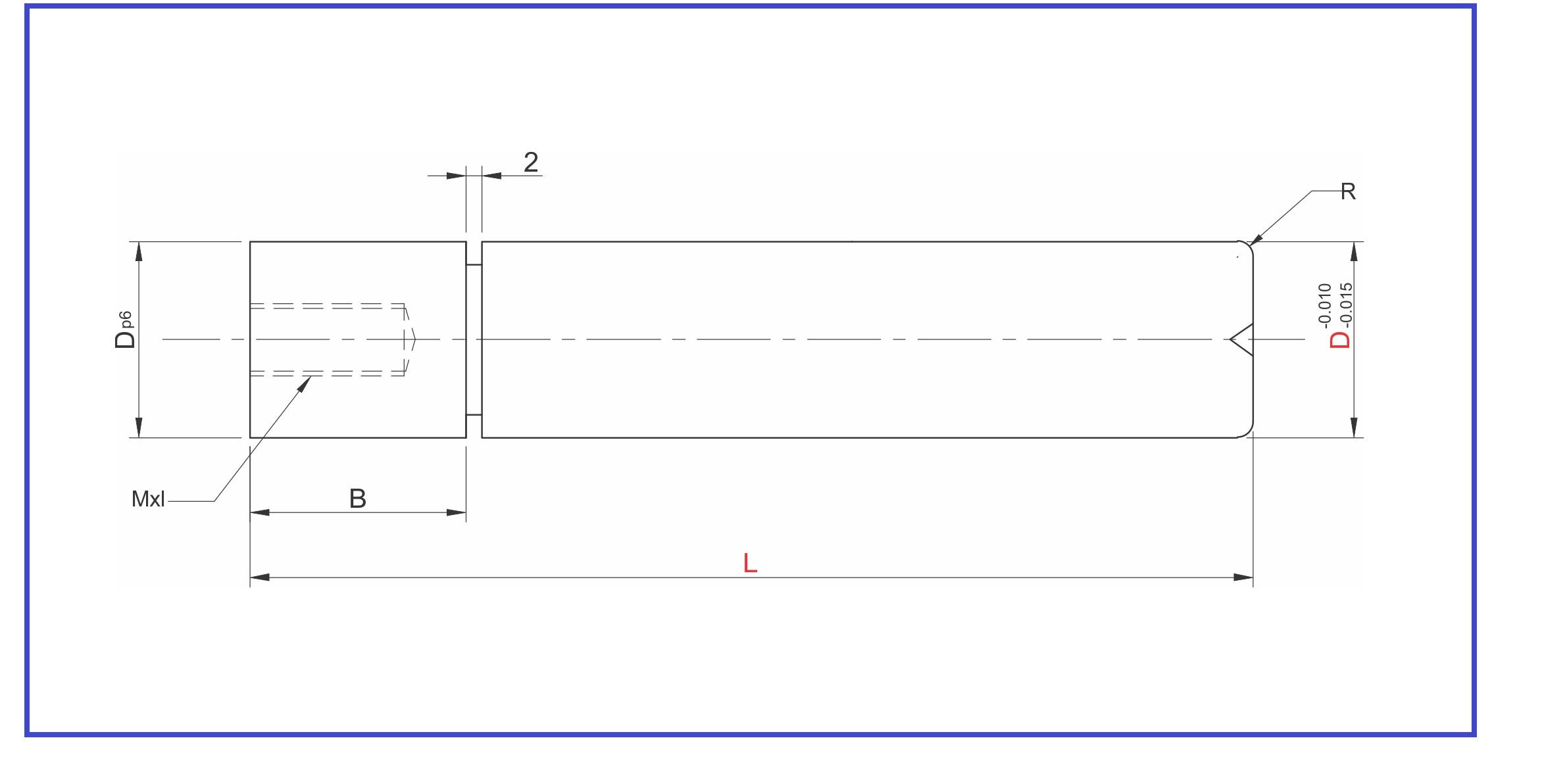

Item Details


Item code	CAD	D in mm	L in mm	M x I (mm)	B (mm)	R (mm)
PSPN - 8x40		40	M5x12 P0.8	10	1
PSPN - 8x50		50	M5x12 P0.8	10	1
PSPN - 8x60		60	M5x12 P0.8	10	1
PSPN - 8x70		70	M5x12 P0.8	10	1
PSPN - 8x80		80	M5x12 P0.8	10	1
PSPN - 10x40		40	M5x12 P0.8	13	1
PSPN - 10x50		50	M5x12 P0.8	13	1
PSPN - 10x60		60	M5x12 P0.8	13	1
PSPN - 10x70		70	M5x12 P0.8	13	1
PSPN - 10x80		80	M5x12 P0.8	13	1
PSPN - 10x90		90	M5x12 P0.8	13	1
PSPN - 10x100		100	M5x12 P0.8	13	1
PSPN - 13x40		40	M6x15 P1	16	1.5
PSPN - 13x50		50	M6x15 P1	16	1.5
PSPN - 13x60		60	M6x15 P1	16	1.5
PSPN - 13x70		70	M6x15 P1	16	1.5
PSPN - 13x80		80	M6x15 P1	16	1.5
PSPN - 13x90		90	M6x15 P1	16	1.5
PSPN - 13x100		100	M6x15 P1	16	1.5
PSPN - 13x110		110	M6x15 P1	16	1.5
PSPN - 13x120		120	M6x15 P1	16	1.5
PSPN - 16x50		50	M6x15 P1	20	1.5
PSPN - 16x60		60	M6x15 P1	20	1.5
PSPN - 16x70		70	M6x15 P1	20	1.5
PSPN - 16x80		80	M6x15 P1	20	1.5
PSPN - 16x90		90	M6x15 P1	20	1.5
PSPN - 16x100		100	M6x15 P1	20	1.5
PSPN - 16x110		110	M6x15 P1	20	1.5
PSPN - 16x120		120	M6x15 P1	20	1.5
PSPN - 20x60		60	M8x20 P1.25	25	2
PSPN - 20x70		70	M8x20 P1.25	25	2
PSPN - 20x80		80	M8x20 P1.25	25	2
PSPN - 20x90		90	M8x20 P1.25	25	2
PSPN - 20x100		100	M8x20 P1.25	25	2
PSPN - 20x110		110	M8x20 P1.25	25	2
PSPN - 20x120		120	M8x20 P1.25	25	2
PSPN - 20x130		130	M8x20 P1.25	25	2
PSPN - 20x140		140	M8x20 P1.25	25	2
PSPN - 25x70		70	M8x20 P1.25	28	2
PSPN - 25x80		80	M8x20 P1.25	28	2
PSPN - 25x90		90	M8x20 P1.25	28	2
PSPN - 25x100		100	M8x20 P1.25	28	2
PSPN - 25x110		110	M8x20 P1.25	28	2
PSPN - 25x120		120	M8x20 P1.25	28	2
PSPN - 25x130		130	M8x20 P1.25	28	2
PSPN - 25x140		140	M8x20 P1.25	28	2
