Oilless Bush (C.I .Casting) - PBOB

Technical Description

Bush Material :- Phosphorus Bronze (PB) / Cast Iron (CI) Grade FG260 Embedded with solid lubricant

Dia (D) Range :- 30mm to 100mm
Length (L) Range :- 50mm to 150mm

Order Type :- Code X dia(D) X Material
Example :- PBOB X 50 X CI
Availability – 7 Days
(*Note - This is tentative schedule, may vary as per material availability)

Item Details

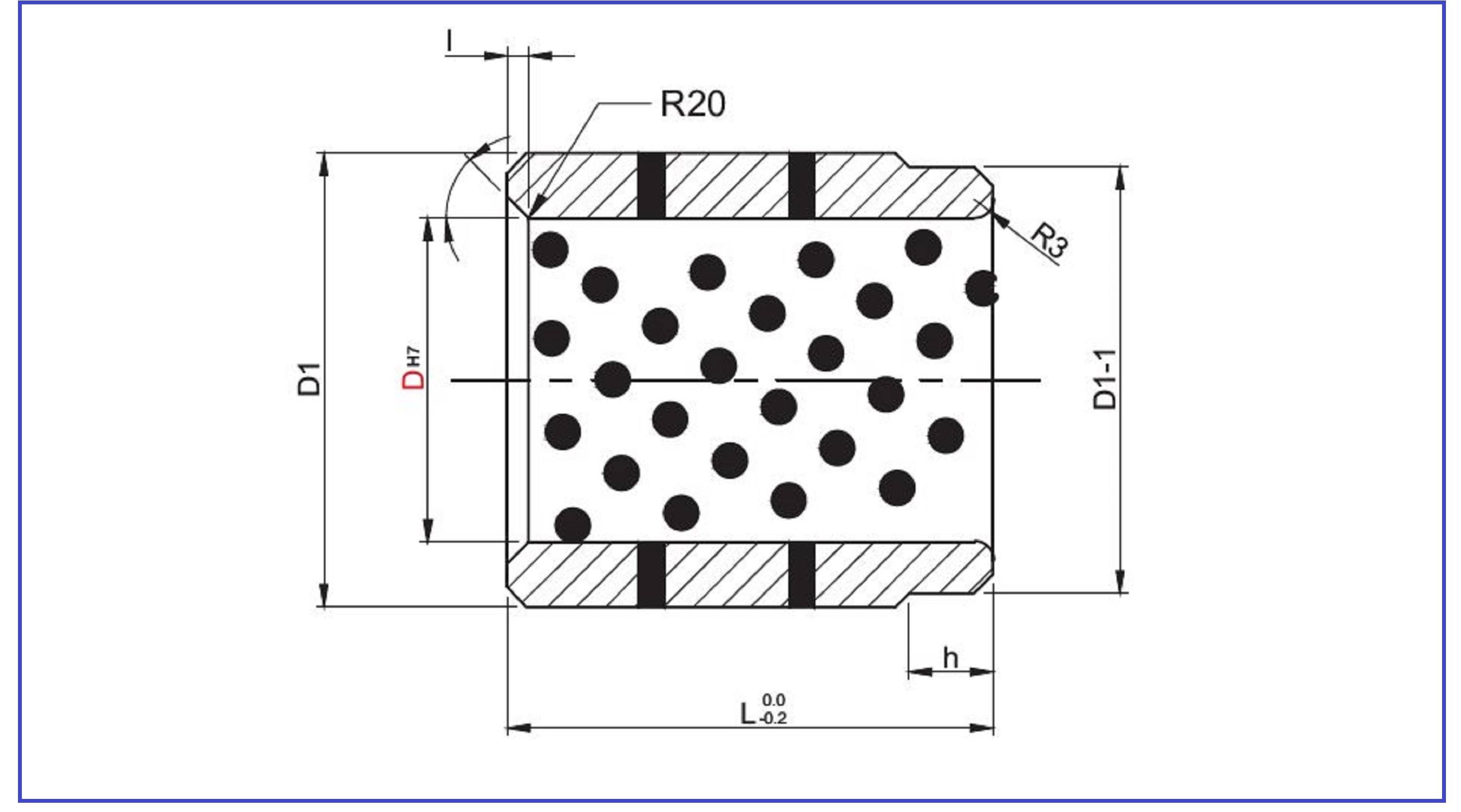

Item code	CAD	D in mm	L in mm	D1 mm	h mm	I mm
PBOB - 30xCI		30	50	50	10	5
PBOB - 40xCI		40	60	60	10	5
PBOB - 50xCI		50	75	70	15	10
PBOB - 60xCI		60	90	80	20	10
PBOB - 80xCI		80	120	100	25	10
PBOB - 100xCI		100	150	120	25	10
