Centre Piller Die Set - PMSC/PMSCB

Technical Description

Die Set Plate Material:- MS
Pillar & Bush Material:- En353
BallCage Material:- Brass / Aluminium

Pillar & Bush Hardness:- 58 - 62 HRC

Order Type :- Code - D/L
Example : - PMSCB 100 X 100 -125 (With Ballcage)
Availability – 7 Days(Tentative schedule, may vary as per material availability)
Note - Our standard day light is 100mm. Day light to any other specification can be provided. Die Set as per Customer Drawing can also be manufactured.

Item Details

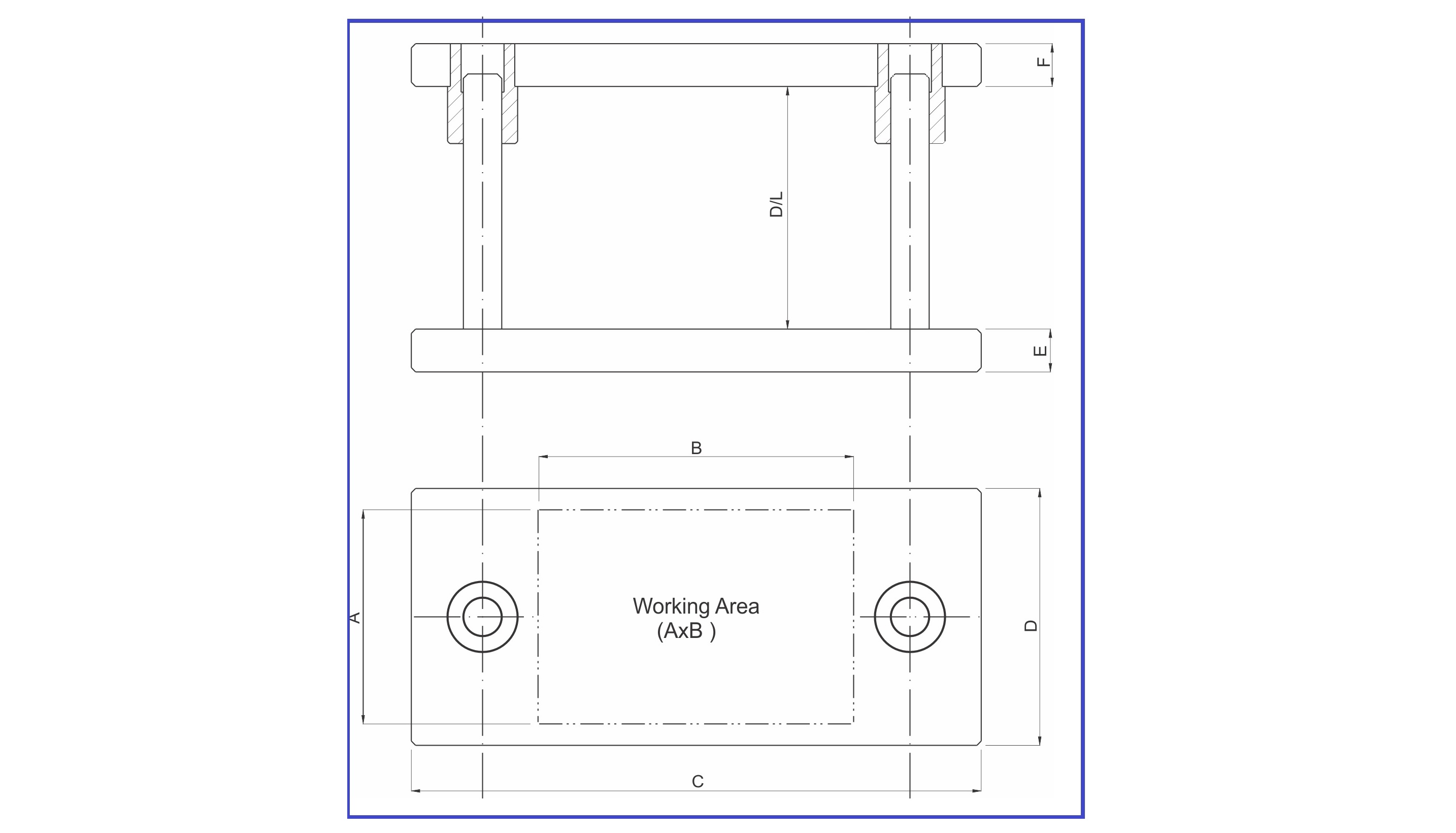

Item code	CAD	W in mm	A in mm	B in mm	DL in mm	C (mm)	D (mm)	E (mm)	F (mm)	CD	Do
PMSC 100X100		Plain Sliding	100	100	100	225	110	32	32	164	24/25
PMSCBB 100X100		Ballcage	100	100	100	240	110	32	32	172	24/25
PMSC 125X125		Plain Sliding	125	125	100	255	135	32	32	194	24/25
PMSCBB 125X125		Ballcage	125	125	100	270	135	32	32	202	24/25
PMSC 150X150		Plain Sliding	150	150	100	290	160	32	32	222.5	28/29
PMSCBB 150X150		Ballcage	150	150	100	305	160	32	32	232	28/29
PMSC 175X175		Plain Sliding	175	175	100	315	185	32	32	247	28/29
PMSCBB 175X175		Ballcage	175	175	100	330	185	32	32	257	28/29
PMSC 200X200		Plain Sliding	200	200	100	350	210	40	40	277.5	34/35
PMSCBB 200X200		Ballcage	200	200	100	365	210	40	40	287	34/35
PMSC 250X250		Plain Sliding	250	250	100	400	260	40	40	327.5	34/35
PMSCBB 250X250		Ballcage	250	250	100	415	260	40	40	337	34/35
PMSC 300X300		Plain Sliding	300	300	100	450	310	40	40	372.5	40/42
