Gas Spring Mounting - STPC

7 Reviews/Write A Review

Item Details

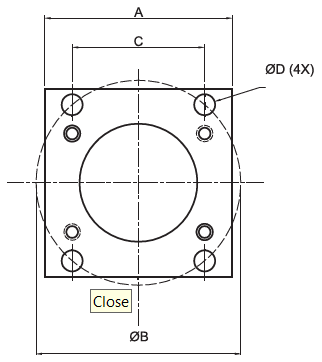

Item code	CAD	Type in mm	A (mm)	Dia B (mm)	C (mm)	Dia D (mm)	E (mm)	F (mm)
Gas Spring Mounting 32-STPC		32 STPC	45	49.5	35	7	9	15
Gas Spring Mounting 38-STPC		38 STPC	52	56.5	40	7	9	15
Gas Spring Mounting 45-STPC		45 STPC	64	70.7	50	9	13	21
Gas Spring Mounting 50-STPC		50 STPC	70	80	56.5	9	13	21
Gas Spring Mounting 63-STPC		63 STPC	90	104	73.5	11	16	24
Gas Spring Mounting 75-STPC		75 STPC	90	104	73.5	11	16	26
Gas Spring Mounting 95-STPC		95 STPC	110	130	92	13.5	18	30
Gas Spring Mounting 120-STPC		120 STPC	130	155	109.5	13.5	21	33
Gas Spring Mounting 150-STPC		150 STPC	162	195	138	17.5	27	38
Gas Spring Mounting 195-STPC		195 STPC	210	240.4	170	17.5	27	44
