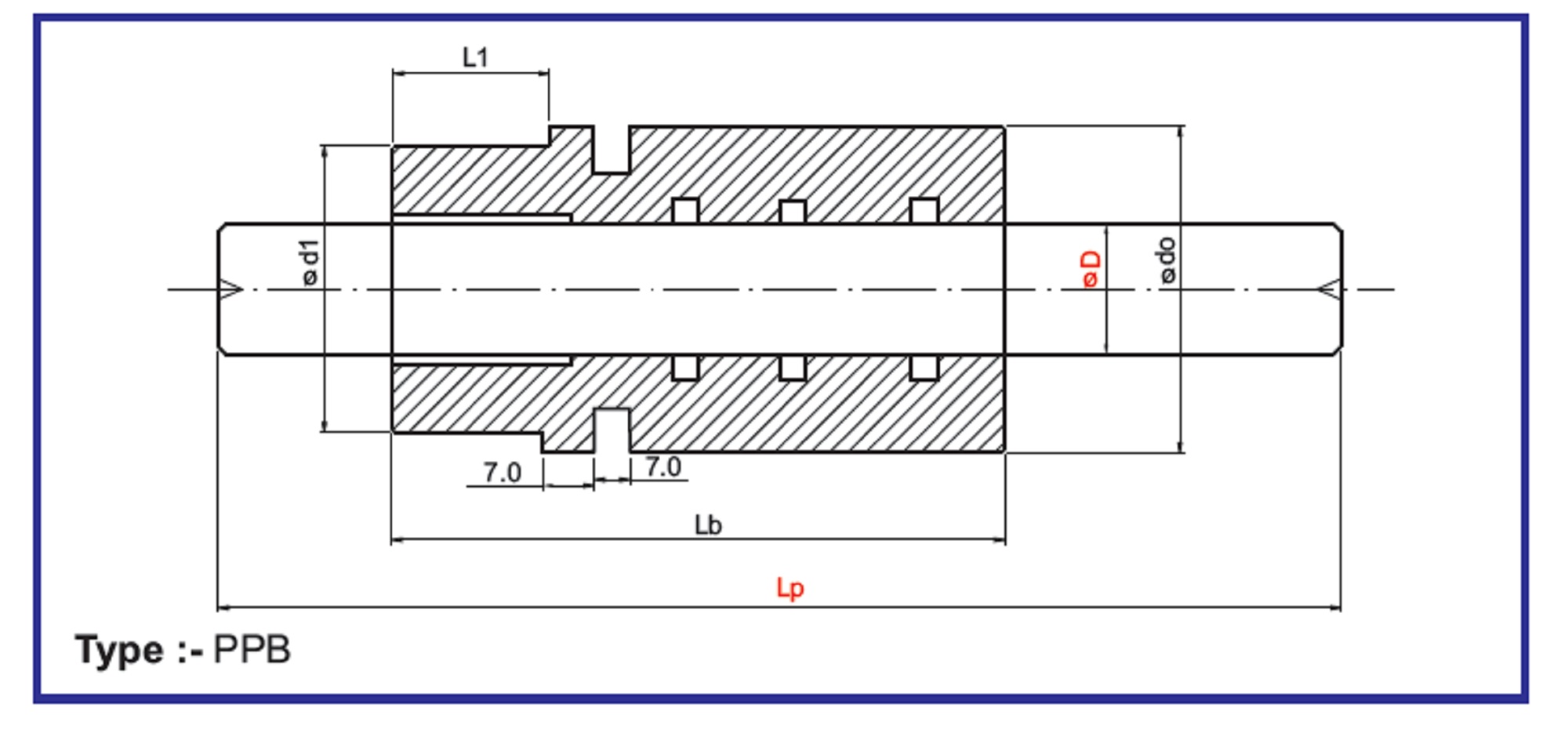

Sliding Piller Bush - PPB

Technical Description

Material :- En353
Hardness :- 55-58 HRC.

Piller Dia (D)Range :- 20mm to 42mm
Piller Length (Lp)Range :- 150-300mm to 200-350mm (Increment of 25mm)

Order Type :- Type - Dia (D) X Length (Lp)
Example : - PPB - 25 X 200
Availability - 3/4 days
(*Note - This is tentative schedule, may vary as per material availability)

Item Details


Item code	CAD	D in mm	Lp in mm	d1 (mm)	Lb (mm)	L1 (mm)	do (mm)
PPB 20X150		150	33.5	73	22.5	38
PPB 20X180		180	33.5	73	22.5	38
PPB 20X200		200	33.5	73	22.5	38
PPB 20X225		225	33.5	73	22.5	38
PPB 20X250		250	33.5	73	22.5	38
PPB 20X275		275	33.5	73	22.5	38
PPB 20X300		300	33.5	73	22.5	38
PPB 21X150		150	33.5	73	22.5	38
PPB 21X180		180	33.5	73	22.5	38
PPB 21X200		200	33.5	73	22.5	38
PPB 21X225		225	33.5	73	22.5	38
PPB 21X250		250	33.5	73	22.5	38
PPB 21X275		275	33.5	73	22.5	38
PPB 21X300		300	33.5	73	22.5	38
PPB 24X150		150	37	82	27.5	43
PPB 24X160		160	37	82	27.5	43
PPB 24X180		180	37	82	27.5	43
PPB 24X200		200	37	82	27.5	43
PPB 24X225		225	37	82	27.5	43
PPB 24X250		250	37	82	27.5	43
PPB 24X275		275	37	82	27.5	43
PPB 24X300		300	37	82	27.5	43
PPB 25X150		150	37	82	27.5	43
PPB 25X160		160	37	82	27.5	43
PPB 25X180		180	37	82	27.5	43
PPB 25X200		200	37	82	27.5	43
PPB 25X220		220	37	82	27.5	43
PPB 25X225		225	37	82	27.5	43
PPB 25X250		250	37	82	27.5	43
PPB 25X275		275	37	82	27.5	43
PPB 25X300		300	37	82	27.5	43
PPB 28X180		180	43.5	92	27.5	48
PPB 28X200		200	43.5	92	27.5	48
PPB 28X225		225	43.5	92	27.5	48
PPB 28X250		250	43.5	92	27.5	48
PPB 28X275		275	43.5	92	27.5	48
PPB 28X300		300	43.5	92	27.5	48
PPB 29X180		180	43.5	92	27.5	48
PPB 29X200		200	43.5	92	27.5	48
PPB 29X225		225	43.5	92	27.5	48
PPB 29X250		250	43.5	92	27.5	48
PPB 29X275		275	43.5	92	27.5	48
PPB 29X300		300	43.5	92	27.5	48
PPB 30X180		180	48.5	100	32	53
PPB 30X200		200	48.5	100	32	53
PPB 30X225		225	48.5	100	32	53
PPB 30X250		250	48.5	100	32	53
PPB 30X275		275	48.5	100	32	53
PPB 30X300		300	48.5	100	32	53
PPB 32X180		180	48.5	100	32	53
PPB 32X200		200	48.5	100	32	53
PPB 32X225		225	48.5	100	32	53
PPB 32X250		250	48.5	100	32	53
PPB 32X275		275	48.5	100	32	53
PPB 32X300		300	48.5	100	32	53
PPB 34X200		200	48.5	109	37	53
PPB 34X225		225	48.5	109	37	53
PPB 34X250		250	48.5	109	37	53
PPB 34X275		275	48.5	109	37	53
PPB 34X300		300	48.5	109	37	53
PPB 35X200		200	48.5	109	37	53
PPB 35X225		225	48.5	109	37	53
PPB 35X250		250	48.5	109	37	53
PPB 35X275		275	48.5	109	37	53
PPB 35X300		300	48.5	109	37	53
PPB 40X200		200	58	113	37	63
PPB 40X225		225	58	113	37	63
PPB 40X250		250	58	113	37	63
PPB 40X275		275	58	113	37	63
PPB 40X300		300	58	113	37	63
PPB 42X200		200	58	113	37	63
PPB 42X225		225	58	113	37	63
PPB 42X250		250	58	113	37	63
PPB 42X275		275	58	113	37	63
PPB 42X300		300	58	113	37	63
