Parting Lock - PPL

Technical Description

Material :- Nylon

Dia (D) Range:- 10 mm to 25 mm
Length (L) Range :- 18 mm to 30 mm

Order Type :- Code x D
Example :- PPL X 13
Availability – 15 Days
(*Note - This is tentative schedule, may vary as per material availability)

Item Details

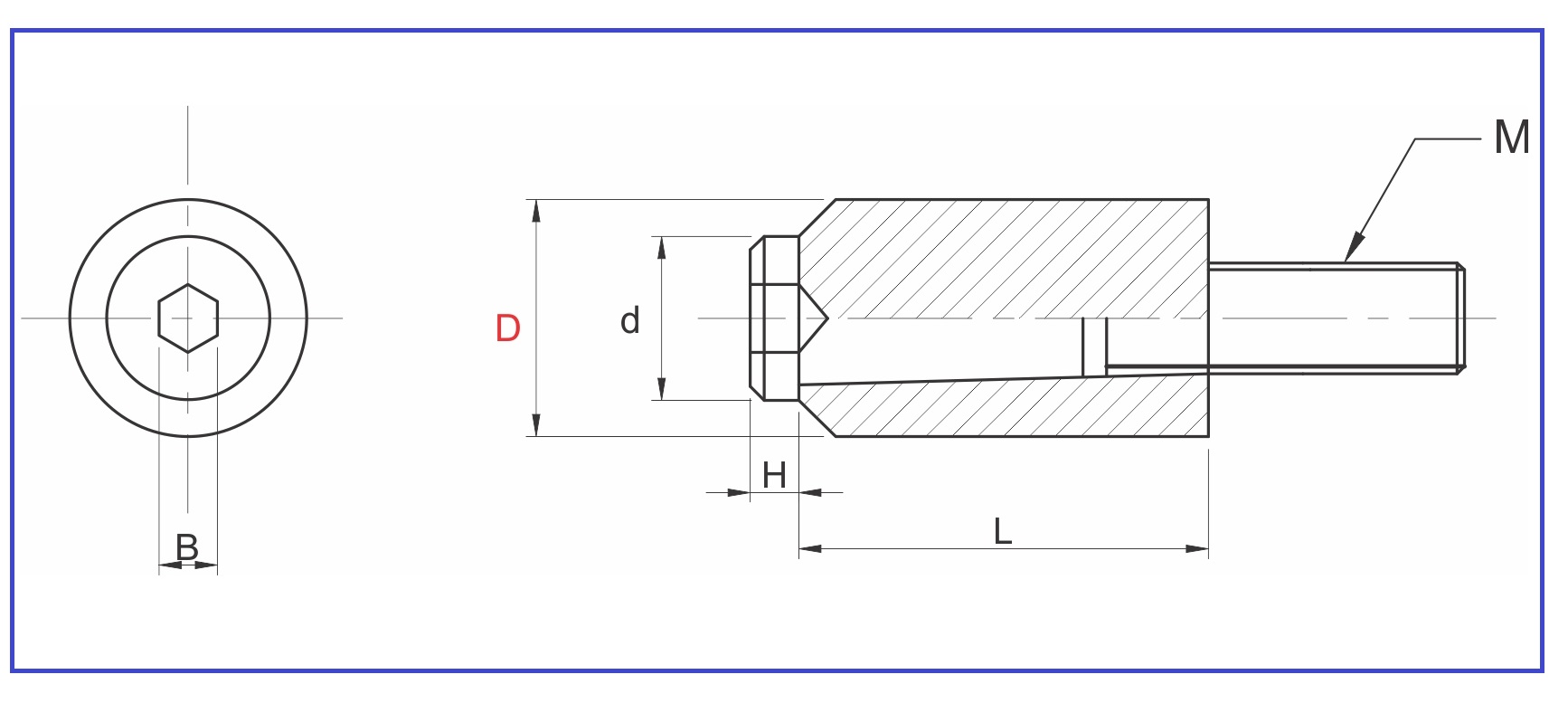

Item code	CAD	Dia D mm	L (mm)	Dia d (mm)	Dia H (mm)	M (mm)	B (mm)
PPL M 10		10	18	8.5	3	M5	4
PPL M 12		12	20	11	3.5	M6	5
PPL M 13		13	20	11	3.5	M6	5
PPL M 16		16	25	14	4	M8	6
PPL M 20		20	30	16	5.5	M10	8
