Technical Description
Material :- Tool Steel
Dia (A) Range :- 8 mm to 25 mm
Body Length (C) Range :- 11 mm to 26 mm
Order Type :- Code
Example :- PPEA-A03
Availability – 7 Days
(*Note - This is tentative schedule, may vary as per material availability)

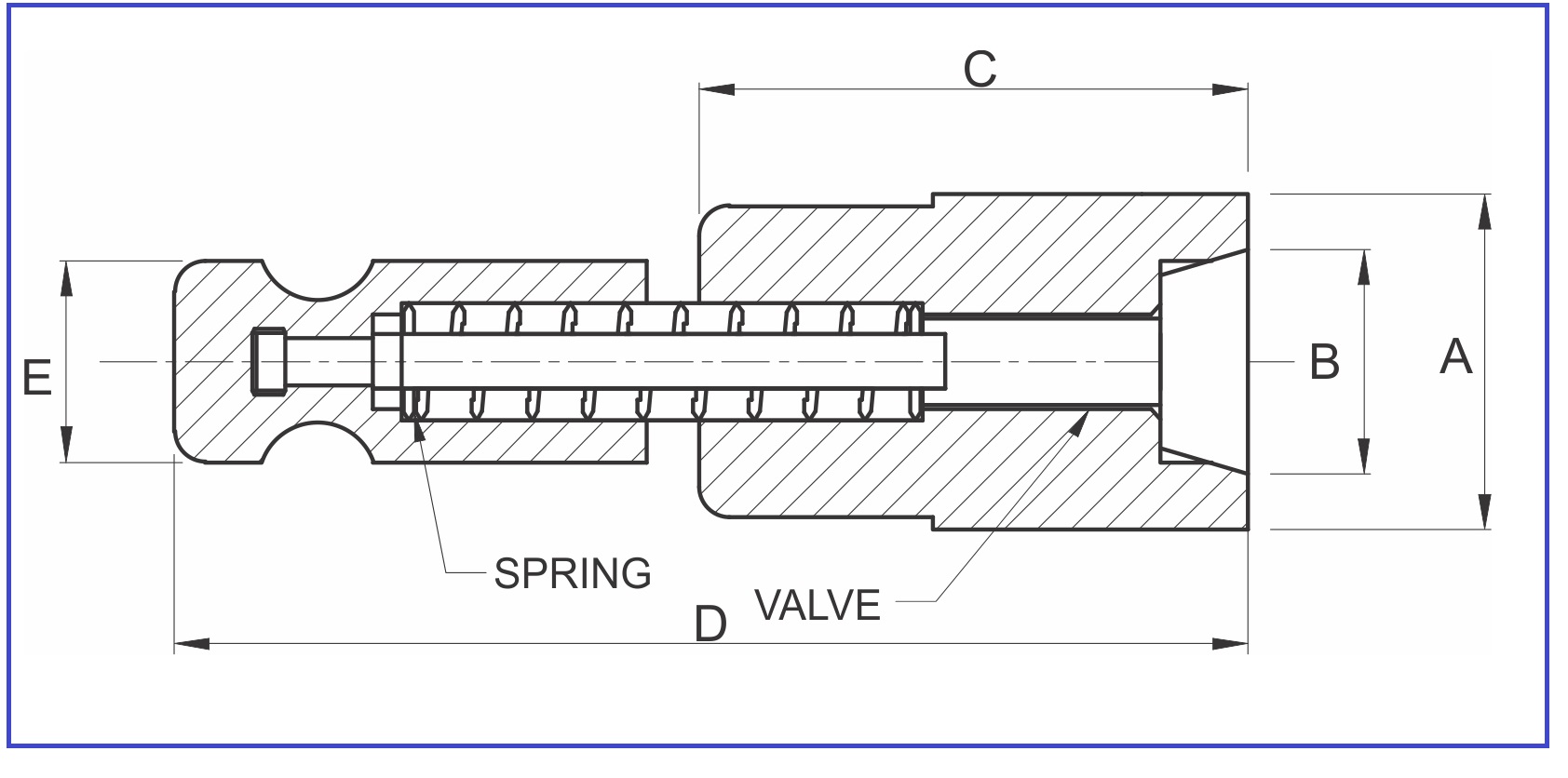

Item code | CAD | Code (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
---|---|---|---|---|---|---|---|
PPEA-A01 08x24 | PPEA-A01 08x24 | 8 | 6.6 | 11 | 24 | 6 | |
PPEA-A02 10x24 | PPEA-A02 10x24 | 10 | 7.5 | 11 | 24 | 6 | |
PPEA-A03 12x34 | PPEA-A03 12x34 | 12 | 9.7 | 18 | 34 | 8 | |
PPEA-A04 16x38 | PPEA-A04 16x38 | 16 | 13 | 20 | 38 | 8 | |
PPEA-A05 18x46 | PPEA-A05 18x46 | 18 | 14.9 | 22 | 46 | 12 | |
PPEA-A06 20x50 | PPEA-A06 20x50 | 20 | 16 | 26 | 50 | 12 |
