Air Ejector Type B- PPEA-B
Technical Description
Material :- Tool Steel
Dia (A) Range :- 4.5 mm to 25 mm
Height (H) Range :- 12 mm to 45 mm
Order Type :- Code
Example :- PPEA-B04
Availability – 7 Days
(*Note - This is tentative schedule, may vary as per material availability)
.jpg){kind=logo}
Item Details

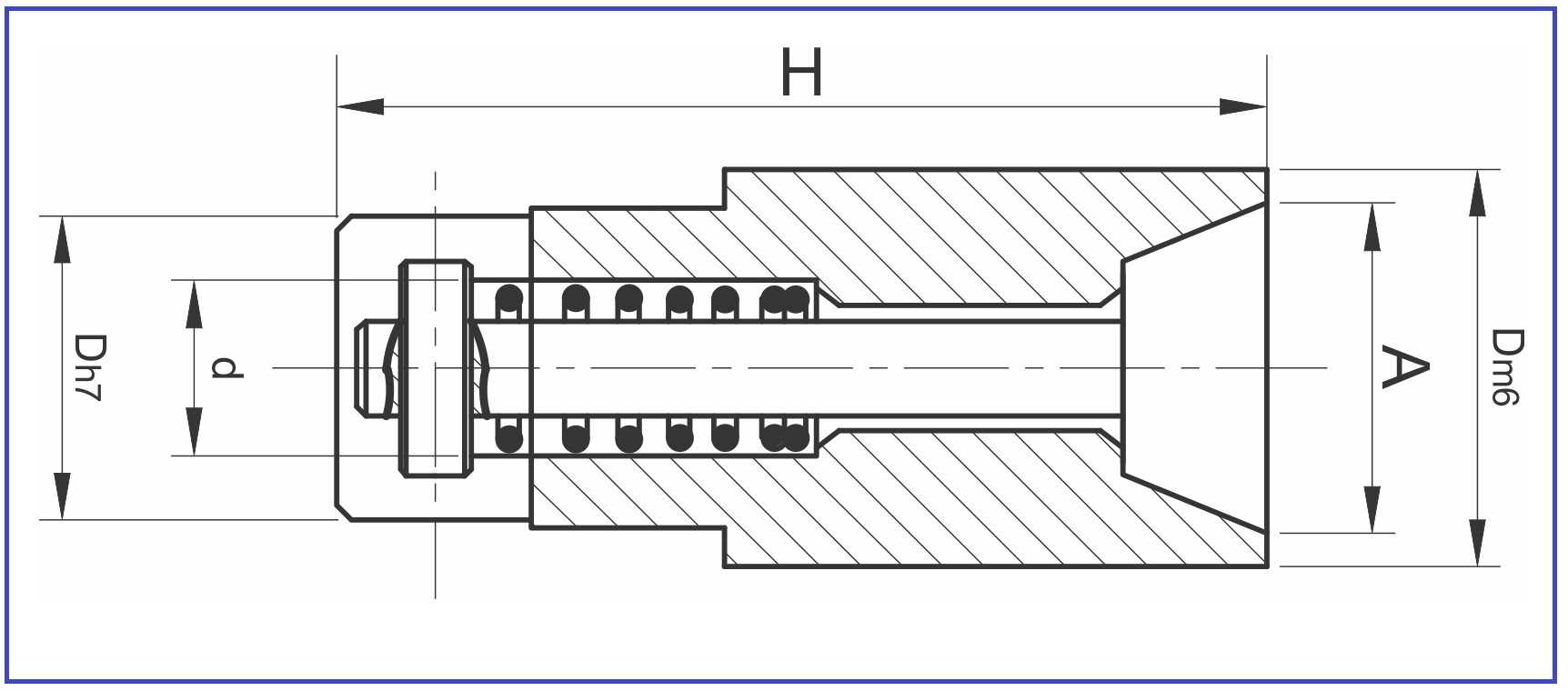

| Item code | CAD | Code (mm) | D (mm) | H (mm) | d (mm) | A (mm) |
|---|---|---|---|---|---|---|
| PPEA-B01 06x12 | PPEA B01 06x12 | 6 | 12 | 4.2 | 4.5 | |
| PPEA-B02 08x15 | PPEA B02 08x15 | 8 | 15 | 4.5 | 6 | |
| PPEA-B03 10x20 | PPEA B03 10x20 | 10 | 20 | 7 | 7.5 | |
| PPEA-B04 12x25 | PPEA B04 12x25 | 12 | 25 | 7.7 | 9 | |
| PPEA-B05 16x30 | PPEA B05 16x30 | 16 | 30 | 10.3 | 12 | |
| PPEA-B07 20x35 | PPEA B07 20x35 | 20 | 35 | 12.9 | 15 | |
| PPEA-B08 25x45 | PPEA B08 25x45 | 25 | 45 | 14.9 | 20 |
