Taper Interlock - PPTI

Technical Description

Material :- Tool Steel
Hardness :- 56-60 HRC.

Dia (D)Range :- 13mm to 42mm
Length (L)Range :- 30mm to 80mm

Order Type :- Code X Dia (D) X Length (L)
Example :- PPTI X 25 X 50
Availability – 15 Days
(*Note - This is tentative schedule, may vary as per material availability)

Item Details

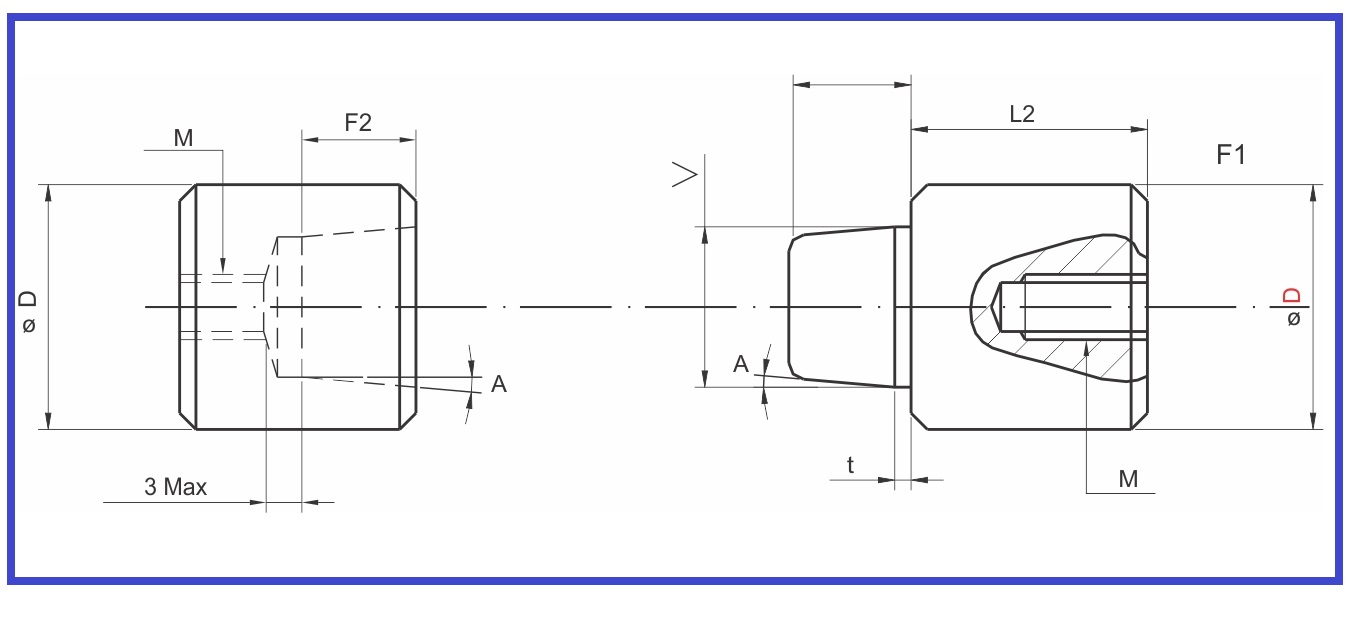

Item code	CAD	Code mm	D mm	A (Deg)	V (mm)	L (mm)	L1 (mm)	L2 (mm)	F1 (mm)	F2 (mm)	F3 (mm)	M (mm)
PPTI M 13		PPTI M 13	13	5°	8.5	30	14	14	6	5	10	M4
PPTI M 16		16	5°	10	30	14	14	6	5	10	M5
PPTI M 20		20	5°	13	40	19	19	9	8	12	M6
PPTI M 25		25	5°	16	50	24	24	12	11	16	M8
PPTI M 30		30	5°	20	60	29	29	15	14	20	M10
PPTI M 32		32	5°	20	60	29	29	15	14	20	M10
PPTI M 35		35	5°	24	70	34	34	18	17	24	M12
