Spring Plunger (Ball Type) - PSP-B

7 Reviews/Write A Review

Technical Description

Ball Material :- Alloy Steel
Body Material :- En9
Spring Material :-En47

Ball Hardness :- 60-62 HRC

Outer Dia (D) Range :- M4 to M16
Length (L) Range :- 9mm to 24mm

Order Type : Code
Example : PSP-B M8
Availability – Ready
(*Note - This is tentative schedule, may vary as per material availability)

Brand : PAWAN

Item Details

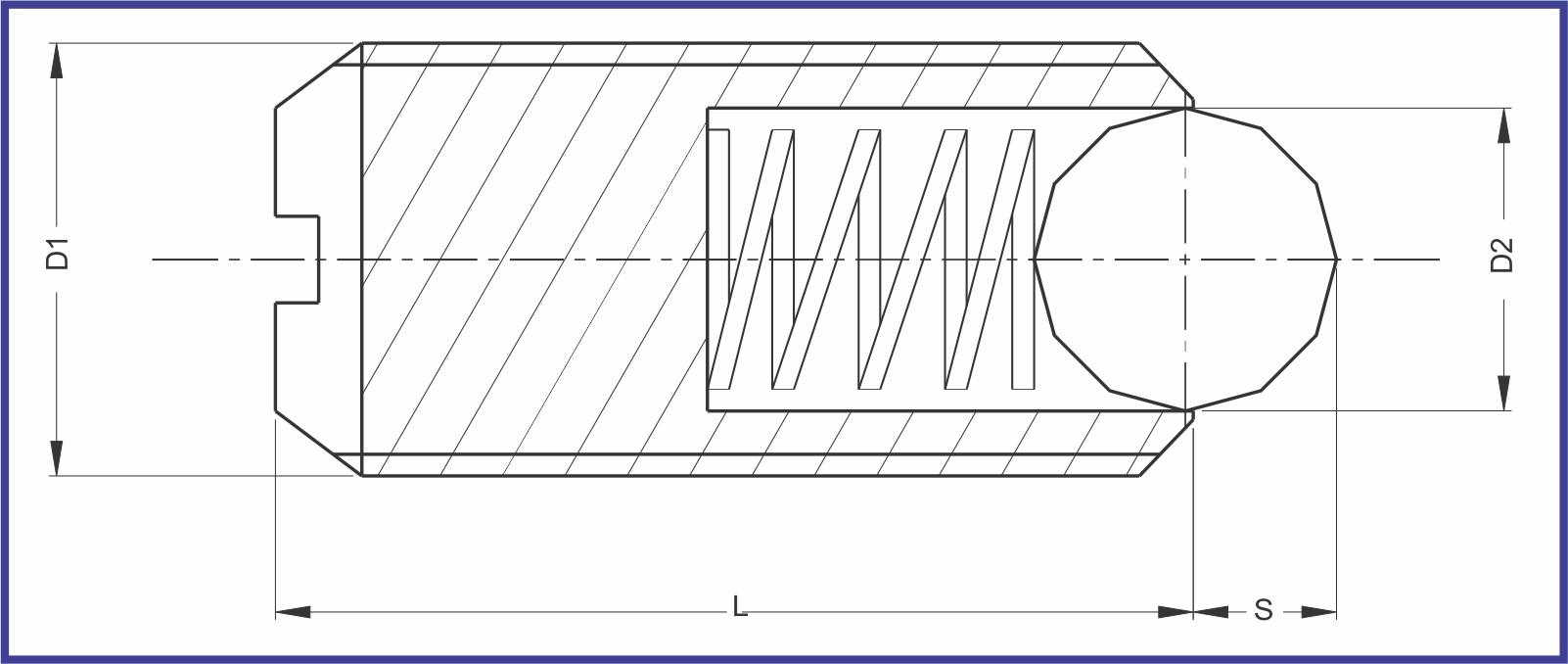

Item code CAD D1 in mm L (mm)S (mm)D2 (mm)F1 (mm)F2 (mm)
PSP-B M 4 M490.82.50.6121.22
PSP-B M 5 M5120.930.7141.32
PSP-B M 6 M61413.50.9181.53
PSP-B M 8 M8161.552.043.57
PSP-B M 10 M1019262.554.59
PSP-B M 12 M12222.583.576.12
PSP-B M 16 M16243.5106.3311.22
