Gas Spring Mounting - BSP

7 Reviews/Write A Review

Item Details

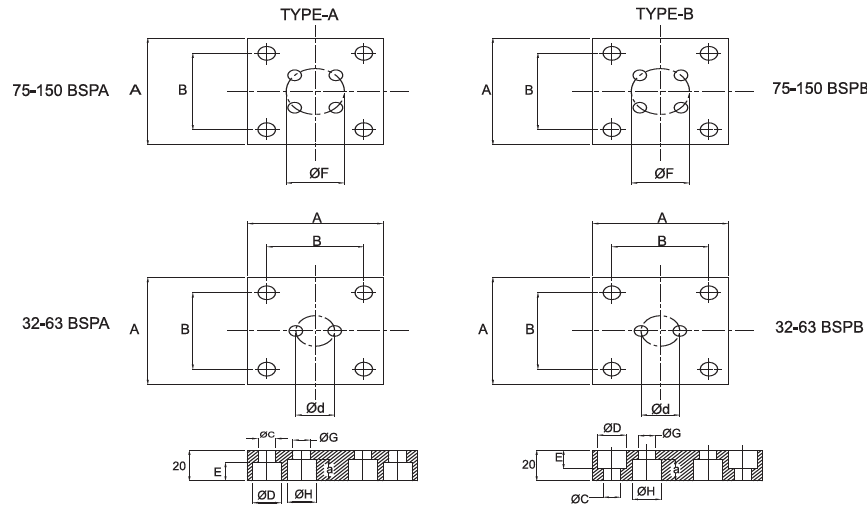

Item code	CAD	Type in mm	A (mm)	B (mm)	Dia C (mm)	Dia D (mm)	E (mm)	d (mm)	F (mm)	Dia G (mm)	Dia H (mm)	Dia a (mm)
45-BSPA		45 BSPA	70	50	9	15	12	20	-	9	15	12
45-BSPB		45 BSPB	70	50	9	15	12	20	-	9	15	12
50-BSPA		50 BSPA	75	56.5	9	15	12	20	-	9	15	12
50-BSPB		50 BSPB	75	56.5	9	15	12	20	-	9	15	12
50-BSP (A/B)-S2		50 BSP (A/B) S2	75	56.5	9	15	12	31.7	-	9	15	12
63-BSPA		63 BSPA	100	73.5	11	18	12	20	-	9	15	12
63-BSPB		63 BSPB	100	73.5	11	18	12	20	-	9	15	12
75-BSPA		75 BSPA	100	73.5	11	18	14	-	40	9	15	12
75-BSPB		75 BSPB	100	73.5	11	18	14	-	40	9	15	12
95-BSPA		95 BSPA	120	92	13.5	20	13	-	60	9	15	12
95-BSPB		95 BSPB	120	92	13.5	20	13	-	60	9	15	12
120-BSPA		120 BSPA	140	109.5	13.5	20	13	-	80	11	18	15
120-BSPB		120 BSPB	140	109.5	13.5	20	13	-	80	11	18	15
150-BSPA		150 BSPA	190	138	17.5	26	17	-	100	11	18	15
150-BSPB		150 BSPB	190	138	17.5	26	17	-	100	11	18	15
195-BSPA		195 BSPA	210	170	17.5	26	17	-	120	13.5	20	15
195-BSPB		195 BSPB	210	170	17.5	26	17	-	120	13.5	20	15
