Light Load Spring - Series P4

Technical Description

Colour - Pink
Material - Spring Steel
Compression-
Long Life -32% of length
Medium Life - 36% of length
Average Life - 40% of length
Diameter Range - 20mm to 32mm
Length Range - 25mm to 200mm
Order Type- Code
Example - P4-35X50
Availability - Ready Stock
(*Note - This is tentative schedule, may vary as per material availability)

Item Details

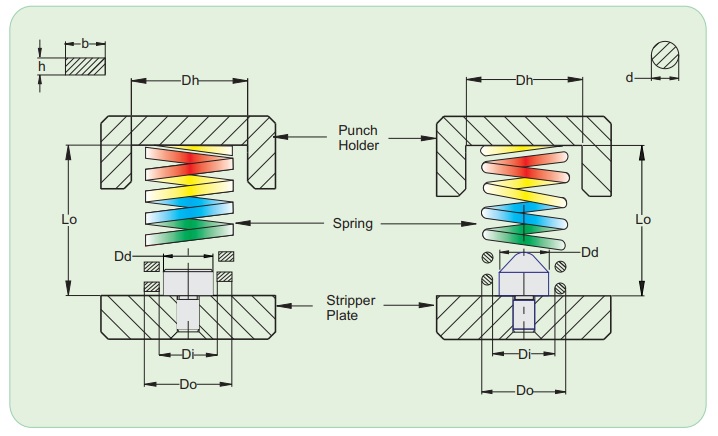

Item code	CAD	Dh in mm	Dd in mm	Lo in mm	PC in Kg per mm	MaXimum Life Pm (Kg)	MaXimum Life Lm (mm)	Average Life Pa (Kg)	Average Life La (mm)
P4-20X25		20	10	25	5.0	40.0	8.0	50.0	10.0
P4-20X30		20	10	30	4.7	45.1	9.6	56.4	12.0
P4-20X35		20	10	35	4.5	50.4	11.2	63.0	14.0
P4-20X40		20	10	40	4.1	52.5	12.8	65.6	16.0
P4-20X50		20	10	50	3.7	59.2	16.0	74.0	20.0
P4-20X55		20	10	55	3.4	60.2	17.6	75.2	22.0
P4-20X60		20	10	60	3.1	59.9	19.2	74.9	24.0
P4-20X65		20	10	65	2.8	58.7	20.8	73.3	26.0
P4-20X70		20	10	70	2.7	60.3	22.4	75.3	28.0
P4-20X75		20	10	75	2.5	59.0	24.0	73.8	30.0
P4-20X80		20	10	80	2.3	58.9	25.6	73.6	32.0
P4-20X90		20	10	90	2.0	57.6	28.8	72.0	36.0
P4-20X100		20	10	100	1.8	58.6	32.0	73.2	40.0
P4-20X110		20	10	110	1.6	56.3	35.2	70.4	44.0
P4-20X125		20	10	125	1.4	57.2	40.0	71.5	50.0
P4-20X140		20	10	140	1.3	58.2	44.8	56.0	56.0
P4-20X150		20	10	150	1.2	55.7	48.0	69.6	60.0
P4-25X25		25	12.5	25	12.0	96.0	8.0	120.0	10.0
P4-25X30		25	12.5	30	10.0	96.0	9.6	120.0	12.0
P4-25X35		25	12.5	35	8.0	89.6	11.2	112.0	14.0
P4-25X40		25	12.5	40	7.1	90.9	12.8	113.6	16.0
P4-25X50		25	12.5	50	5.9	94.4	16.0	118.0	20.0
P4-25X55		25	12.5	55	4.4	77.3	17.6	96.6	22.0
P4-25X60		25	12.5	60	4.1	78.0	19.2	97.4	24.0
P4-25X65		25	12.5	65	3.8	78.0	20.8	97.5	26.0
P4-25X70		25	12.5	70	3.4	75.7	22.4	94.6	28.0
P4-25X75		25	12.5	75	3.1	75.4	24.0	94.2	30.0
P4-25X80		25	12.5	80	2.9	74.8	25.6	93.4	32.0
P4-25X90		25	12.5	90	2.5	73.2	28.8	91.4	36.0
P4-25X100		25	12.5	100	2.3	74.2	32.0	92.8	40.0
P4-32X50		32	15	50	8.4	133.8	16.0	167.2	20.0
P4-32X55		32	15	55	7.8	137.3	17.6	171.6	22.0
P4-32X60		32	15	60	6.1	116.4	19.2	145.4	24.0
P4-32X65		32	15	65	6.2	129.2	20.8	161.5	26.0
P4-32X70		32	15	70	5.2	116.5	22.4	145.6	28.0
P4-32X75		32	15	75	5.3	126.0	24.0	157.5	30.0
P4-32X80		32	15	80	4.6	117.2	25.6	146.6	32.0
P4-32X90		32	15	90	3.9	112.3	28.8	140.4	36.0
P4-32X100		32	15	100	3.6	114.2	32.0	142.8	40.0
P4-32X110		32	15	110	3.2	112.6	35.2	140.8	44.0
P4-32X125		32	15	125	3.0	120.0	40.0	150.0	50.0
P4-32X140		32	15	140	2.8	123.2	44.8	154.0	56.0
P4-32X150		32	15	150	2.5	120.0	48.0	150.0	60.0
P4-32X175		32	15	175	2.3	126.0	56.0	157.5	70.0
P4-32X200		32	15	200	2.0	128.0	64.0	160.0	80.0
