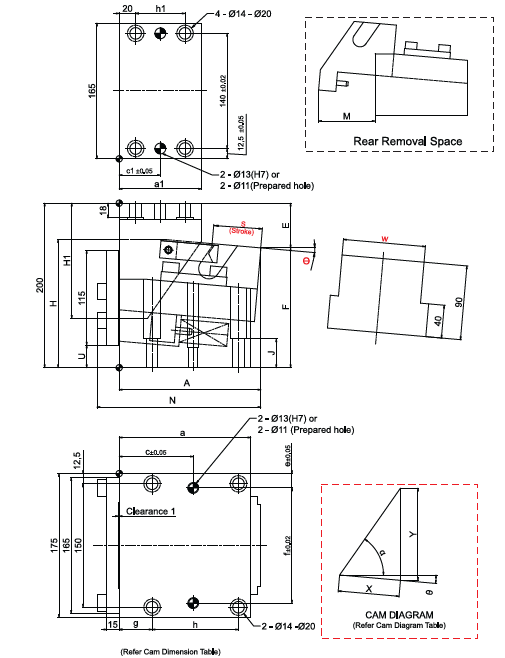

Die Mounted Cam Units PCU-CS1 - 100-(05-20)-Stroke

7 Reviews/Write A Review

Item Details


Item code	CAD	W mm	Z	S mm	WF Kg	WFM Kg	SL Kg	SL1 Kg	SLM Kg	wt Kg	A mm	E mm	F mm	H mm	H1 mm	J mm	N mm	U mm	a mm	a1 mm	c mm	c mm	e mm	f mm	g mm	h mm	h1 mm	x mm
PCU-CS1 - 100-05-45		100	05	45	39.2 (4.0)	78.5 (8.0)	263 (26.8)	1015 (103.5)	1109 (113.1)	33	172.22	54.72	145.28	155.6	140	35	199.22	27.5	160	100	50	50	17.5	140	40	105	60	98
PCU-CS1 - 100-05-70		100	05	70	39.2 (4.0)	78.5 (8.0)	194 (19.8)	1065 (108.6)	1132 (115.5)	38	207.08	52.77	147.23	161.1	160	40	234.08	30	190	120	60	60	12.5	150	45	130	80	90
PCU-CS1 - 100-10-45		100	10	45	39.2 (4.0)	78.5 (8.0)	263 (26.8)	1015 (103.5)	1109 (113.1)	33	178.12	65.02	134.98	156.8	140	35	205.12	30	160	100	50	50	17.5	140	40	105	60	103
PCU-CS1 - 100-10-70		100	10	70	39.2 (4.0)	78.5 (8.0)	194 (19.8)	1065 (108.6)	1132 (115.5)	38	212.59	66.1	133.9	161.6	160	40	239.59	30	190	120	60	60	12.5	150	45	130	80	95
PCU-CS1 - 100-15-45		100	15	45	39.2 (4.0)	78.5 (8.0)	263 (26.8)	1015 (103.5)	1109 (113.1)	33	182.67	70.77	129.23	160	125	40	209.67	32.5	160	100	55	55	17.5	140	40	105	70	106
PCU-CS1 - 100-15-70		100	15	70	39.2 (4.0)	78.5 (8.0)	194 (19.8)	1065 (108.6)	1132 (115.5)	38	216.48	69.83	130.17	171.5	130	40	243.48	35	190	130	65	65	12.5	150	45	130	90	98
PCU-CS1 - 100-20-45		100	20	45	39.2 (4.0)	78.5 (8.0)	263 (26.8)	1015 (103.5)	1109 (113.1)	32	185.83	81.86	118.14	161.2	120	40	212.83	35	160	100	55	55	17.5	140	40	105	70	109
PCU-CS1 - 100-20-70		100	20	70	39.2 (4.0)	78.5 (8.0)	194 (19.8)	1065 (108.6)	1132 (115.5)	39	218.72	78.83	121.17	179.5	130	40	245.72	45	190	130	65	65	12.5	150	45	130	90	98
