Mould Latch - PPLC-A
Technical Description
Material :- Tool Steel
Product Range :- PPLC-A01, A02 & A03 (Please refer catalogue)
Order Type :- Code
Example :- PPLC-A02
Availability – 15 Days
(*Note - This is tentative schedule, may vary as per material availability)
.jpg){kind=logo}

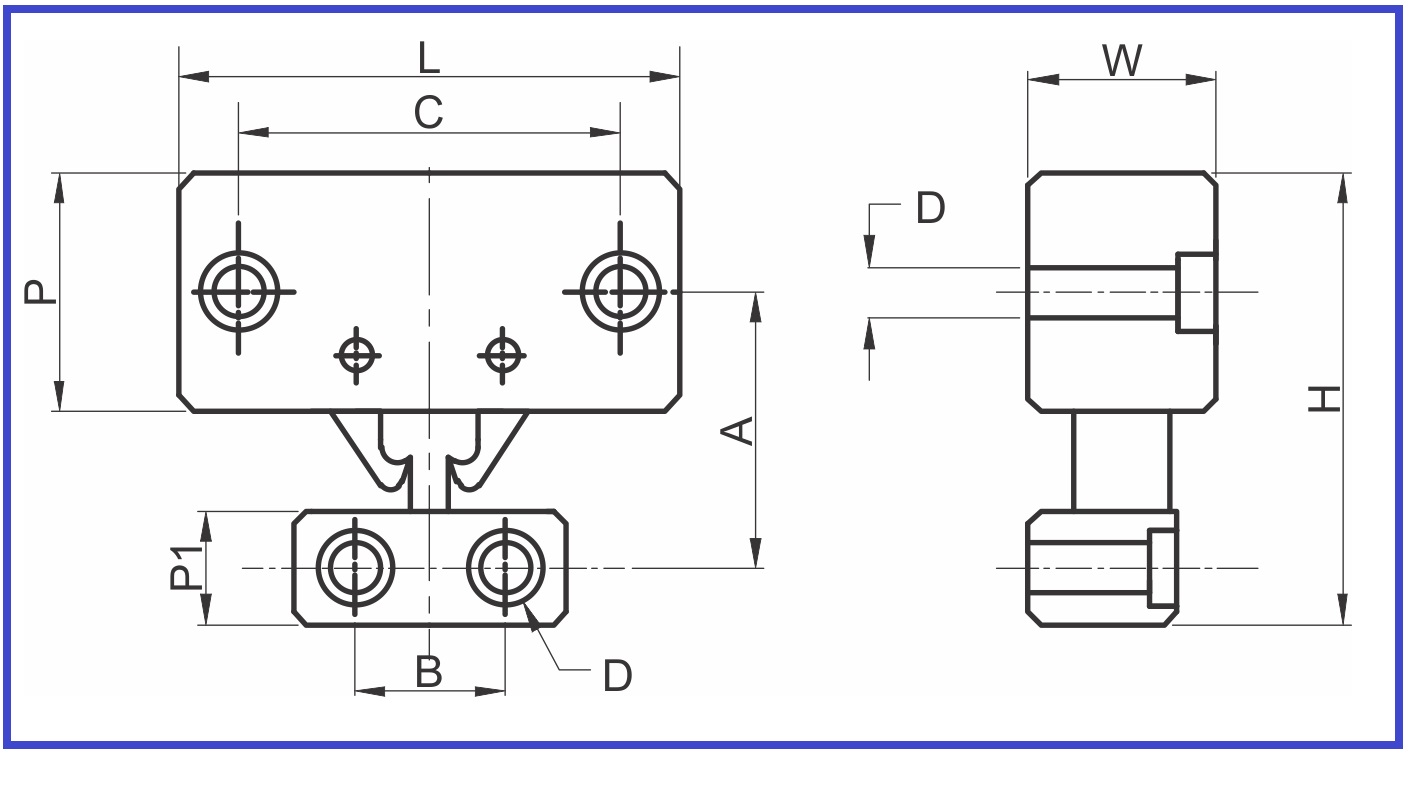

Item Details
| Item code | CAD | Code (mm) | Type (mm) | A (mm) | B (mm) | C (mm) | D (mm) | L (mm) | W (mm) | H (mm) | P (mm) | P1 (mm) | Force (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PPLC-A01 | PPLC-A01 | Light Duty | 27.5 | 16 | 42 | M6 | 55 | 22 | 44 | 25 | 13 | 45 | |
| PPLC-A02 | PPLC-A02 | 40 | 20 | 61 | M8 | 80 | 28 | 70 | 38 | 18 | 110 | ||
| PPLC-A03 | PPLC-A03 | Heavy Duty | 60 | 30 | 95 | M12 | 120 | 48 | 106 | 57 | 27 | 225 |
