Heavy Load - RRE

Technical Description

Colour - Green
Material - Spring Steel

Diameter Range (D) - 10mm to 16mm
Length Range (L)- 25mm to 305mm

Order Type- Code
Example – RRE 16X25
Availability - Ready Stock
(*Note - This is tentative schedule, may vary as per material availability)

Item Details

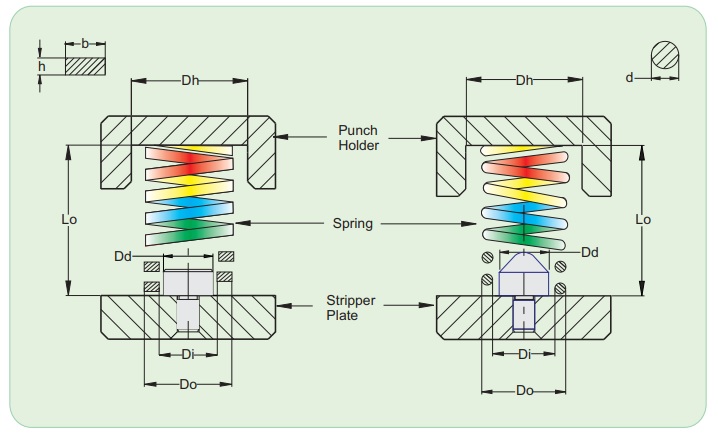

Item code	CAD	Dh in mm	Dd in mm	Lo in mm	PC in Kg per mm	MaXimum Life Pm Kg	MaXimum Life Lm mm	Average Life Pa Kg	Average Life La mm
RRE-10x25		10	5	25	2.1	10.6	5.0	15.8	7.5
RRE-10x32		10	5	32	1.6	10.7	6.4	15.7	9.6
RRE-10x38		10	5	38	1.3	10.1	7.6	15.2	11.4
RRE-10x44		10	5	44	1.1	9.8	8.8	14.7	13.2
RRE-10x51		10	5	51	1.0	10.0	10.2	15.0	15.3
RRE-10x64		10	5	64	0.8	10.1	12.8	15.2	19.2
RRE-10x76		10	5	76	0.6	9.7	15.2	14.6	22.8
RRE-10x305		10	5	305	0.2	9.2	61.0	13.7	91.5
RRE-13x25		13	6.3	25	3.8	19.2	5.0	28.7	7.5
RRE-13x32		13	6.3	32	3.0	18.9	6.4	28.3	9.6
RRE-13x38		13	6.3	38	2.4	18.2	7.6	27.4	11.4
RRE-13x44		13	6.3	44	2.0	17.6	8.8	26.4	13.2
RRE-13x51		13	6.3	51	1.8	18.0	10.2	26.9	15.3
RRE-13x64		13	6.3	64	1.4	17.7	12.8	26.5	19.2
RRE-13x76		13	6.3	76	1.1	17.3	15.2	26.0	22.8
RRE-13x89		13	6.3	89	1.0	17.3	17.8	25.9	26.7
RRE-13x305		13	6.3	305	0.3	17.1	61.0	25.6	91.5
RRE-16x25		16	8	25	8.3	41.6	5.0	62.4	7.5
RRE-16x32		16	8	32	6.3	40.0	6.4	60.0	9.6
RRE-16x38		16	8	38	5.1	38.7	7.6	58.0	11.4
RRE-16x44		16	8	44	4.2	36.6	8.8	54.9	13.2
RRE-16x51		16	8	51	3.6	37.0	10.2	55.5	15.3
RRE-16x64		16	8	64	2.8	36.4	12.8	54.5	19.2
RRE-16x76		16	8	76	2.3	35.4	15.2	53.1	22.8
RRE-16x89		16	8	89	2.0	35.6	17.8	53.4	26.7
RRE-16x102		16	8	102	1.7	35.3	20.4	52.9	30.6
RRE-16x305		16	8	305	0.6	33.6	61.0	50.3	91.5
