Product Details

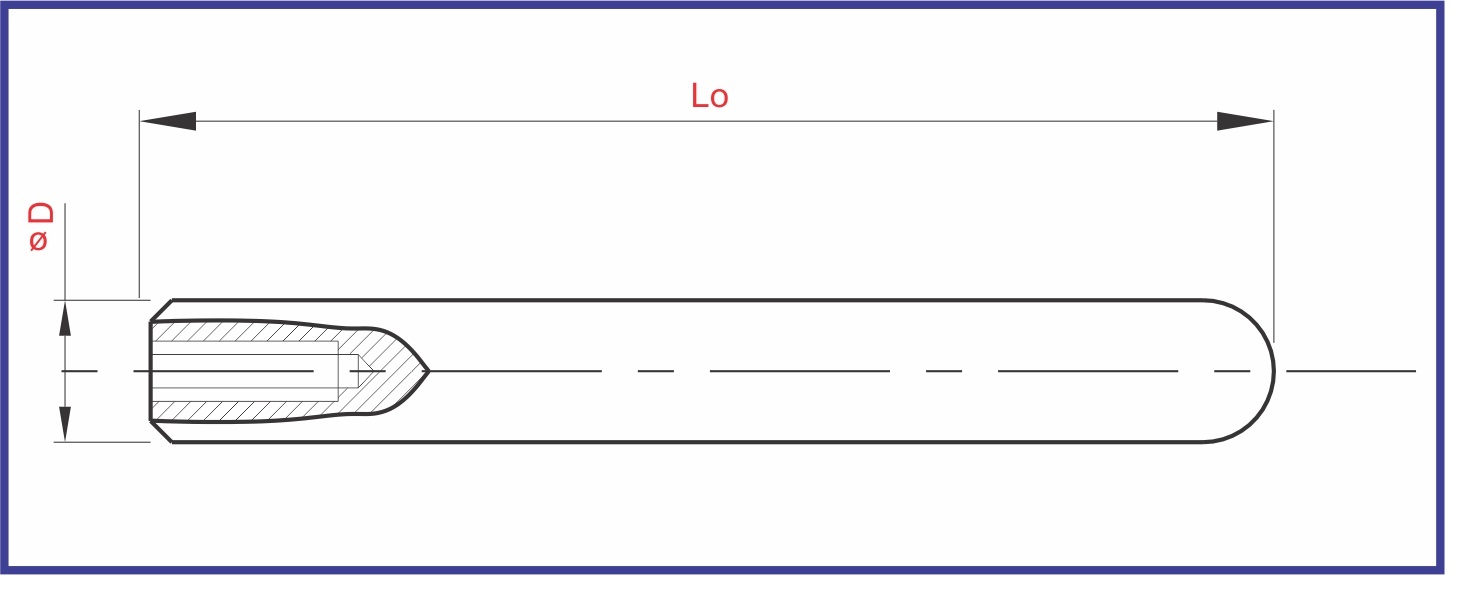

Dowel Pin Plain/Threaded (PDPP/PDPT)

Technical Description

Material :- Case Hardened Alloy Steel
Hardness :- 58-62 HRC

Dia (D) Range:- 3 mm to 20 mm
Length (L) Range :- 8 mm to 100 mm

Order Type :- Dowel (Type) - Dia (D) X Length (Lo)
Example : - Dowel (Threaded / Plain) 10 X 50

Availability :- 7 Days
(*Note - This is tentative schedule, may vary as per material availability)

Product of: Pawan
Pawan Logo
Add to cart CAD File Item Code TypeD in mmLo in mmM mmTL mm
PDPP 3X8Plain38--
PDPP 3X10Plain310--
PDPP 3X12Plain312--
PDPP 3X16Plain316--
PDPP 3X20Plain320--
PDPP 3X25Plain325--
PDPP 3X30Plain330--
PDPP 3X35Plain335--
PDPP 3X40Plain340--
PDPP 3X45Plain345--
PDPP 4X10Plain410--
PDPP 4X12Plain412--
PDPP 4X16Plain416--
PDPP 4X20Plain420--
PDPP 4X25Plain425--
PDPP 4X30Plain430--
PDPP 4X35Plain435--
PDPP 4X40Plain440--
PDPP 4X45Plain445--
PDPP 4X50Plain450--
PDPP 4X55Plain455--
PDPP 5X12Plain512--
PDPP 5X16Plain516--
PDPP 5X20Plain520--
PDPP 5X25Plain525--
PDPP 5X30Plain530--
PDPP 5X35Plain535--
PDPP 5X40Plain540--
PDPP 5X45Plain545--
PDPP 5X50Plain550--
PDPP 5X55Plain555--
PDPP 5X60Plain560--
PDPP 5X65Plain565--
PDPP 5X70Plain570--
PDPP 5X75Plain575--
PDPP 6X16Plain616--
PDPP 6X20Plain620--
PDPP 6X25Plain625--
PDPP 6X30Plain630--
PDPP 6X35Plain635--
PDPP 6X40Plain640--
PDPP 6X45Plain645--
PDPP 6X50Plain650--
PDPP 6X55Plain655--
PDPP 6X60Plain660--
PDPP 6X65Plain665--
PDPP 6X70Plain670--
PDPP 6X75Plain675--
PDPP 6X80Plain680--
PDPP 6X90Plain690--
PDPP 6X100Plain6100--
PDPP 6X110Plain6110--
PDPP 6X120Plain6120--
PDPP 6X130Plain6130--
PDPP 6X150Plain6150--
PDPP 8X16Plain816--
PDPP 8X20Plain820--
PDPP 8X25Plain825--
PDPP 8X30Plain830--
PDPP 8X35Plain835--
PDPP 8X40Plain840--
PDPP 8X45Plain845--
PDPP 8X50Plain850--
PDPP 8X55Plain855--
PDPP 8X60Plain860--
PDPP 8X65Plain865--
PDPP 8X70Plain870--
PDPP 8X75Plain875--
PDPP 8X80Plain880--
PDPP 8X90Plain890--
PDPP 8X100Plain8100--
PDPP 8X110Plain8110--
PDPP 8X120Plain8120--
PDPP 8X130Plain8130--
PDPP 8X150Plain8150--
PDPP 10X20Plain1020--
PDPP 10X25Plain1025--
PDPP 10X30Plain1030--
PDPP 10X35Plain1035--
PDPP 10X40Plain1040--
PDPP 10X45Plain1045--
PDPP 10X50Plain1050--
PDPP 10X55Plain1055--
PDPP 10X60Plain1060--
PDPP 10X65Plain1065--
PDPP 10X70Plain1070--
PDPP 10X75Plain1075--
PDPP 10X80Plain1080--
PDPP 10X90Plain1090--
PDPP 10X100Plain10100--
PDPP 10X110Plain10110--
PDPP 10X120Plain10120--
PDPP 10X130Plain10130--
PDPP 10X150Plain10150--
PDPP 12X25Plain1225--
PDPP 12X30Plain1230--
PDPP 12X35Plain1235--
PDPP 12X40Plain1240--
PDPP 12X45Plain1245--
PDPP 12X50Plain1250--
PDPP 12X55Plain1255--
PDPP 12X60Plain1260--
PDPP 12X65Plain1265--
PDPP 12X70Plain1270--
PDPP 12X75Plain1275--
PDPP 12X80Plain1280--
PDPP 12X90Plain1290--
PDPP 12X100Plain12100--
PDPP 12X110Plain12110--
PDPP 12X120Plain12120--
PDPP 12X130Plain12130--
PDPP 12X150Plain12150--
PDPP 16X30Plain1630--
PDPP 16X35Plain1635--
PDPP 16X40Plain1640--
PDPP 16X45Plain1645--
PDPP 16X50Plain1650--
PDPP 16X55Plain1655--
PDPP 16X60Plain1660--
PDPP 16X65Plain1665--
PDPP 16X70Plain1670--
PDPP 16X75Plain1675--
PDPP 16X80Plain1680--
PDPP 16X90Plain1690--
PDPP 16X100Plain16100--
PDPP 16X110Plain16110--
PDPP 16X120Plain16120--
PDPP 16X130Plain16130--
PDPP 16X150Plain16150--
PDPP 20X40Plain2040--
PDPP 20X45Plain2045--
PDPP 20X50Plain2050--
PDPP 20X55Plain2055--
PDPP 20X60Plain2060--
PDPP 20X65Plain2065--
PDPP 20X70Plain2070--
PDPP 20X75Plain2075--
PDPP 20X80Plain2080--
PDPP 20X90Plain2090--
PDPP 20X100Plain20100--
PDPP 20X110Plain20110--
PDPP 20X120Plain20120--
PDPP 20X130Plain20130--
PDPP 20X150Plain20150--
PDPT 6X16Threaded 616M48 To 10 mm
PDPT 6X20Threaded 620M48 To 10 mm
PDPT 6X25Threaded 625M48 To 10 mm
PDPT 6X30Threaded 630M48 To 10 mm
PDPT 6X35Threaded 635M48 To 10 mm
PDPT 6X40Threaded 640M48 To 10 mm
PDPT 6X45Threaded 645M48 To 10 mm
PDPT 6X50Threaded 650M48 To 10 mm
PDPT 6X55Threaded 655M48 To 10 mm
PDPT 6X60Threaded 660M48 To 10 mm
PDPT 6X65Threaded 665M48 To 10 mm
PDPT 6X70Threaded 670M48 To 10 mm
PDPT 6X75Threaded 675M48 To 10 mm
PDPT 6X80Threaded 680M48 To 10 mm
PDPT 6X90Threaded 690M48 To 10 mm
PDPT 6X100Threaded 6100M48 To 10 mm
PDPT 6X110Threaded 6110M48 To 10 mm
PDPT 6X120Threaded 6120M48 To 10 mm
PDPT 6X130Threaded 6130M48 To 10 mm
PDPT 6X150Threaded 6150M48 To 10 mm
PDPT 8X16Threaded 816M58 To 10 mm
PDPT 8X20Threaded 820M58 To 10 mm
PDPT 8X25Threaded 825M58 To 10 mm
PDPT 8X30Threaded 830M58 To 10 mm
PDPT 8X35Threaded 835M58 To 10 mm
PDPT 8X40Threaded 840M58 To 10 mm
PDPT 8X45Threaded 845M58 To 10 mm
PDPT 8X50Threaded 850M58 To 10 mm
PDPT 8X55Threaded 855M58 To 10 mm
PDPT 8X60Threaded 860M58 To 10 mm
PDPT 8X65Threaded 865M58 To 10 mm
PDPT 8X70Threaded 870M58 To 10 mm
PDPT 8X75Threaded 875M58 To 10 mm
PDPT 8X80Threaded 880M58 To 10 mm
PDPT 8X90Threaded 890M58 To 10 mm
PDPT 8X100Threaded 8100M58 To 10 mm
PDPT 8X110Threaded 8110M58 To 10 mm
PDPT 8X120Threaded 8120M58 To 10 mm
PDPT 8X130Threaded 8130M58 To 10 mm
PDPT 8X150Threaded 8150M58 To 10 mm
PDPT 10X20Threaded 1020M68 To 10 mm
PDPT 10X25Threaded 1025M68 To 10 mm
PDPT 10X30Threaded 1030M68 To 10 mm
PDPT 10X35Threaded 1035M68 To 10 mm
PDPT 10X40Threaded 1040M68 To 10 mm
PDPT 10X45Threaded 1045M68 To 10 mm
PDPT 10X50Threaded 1050M68 To 10 mm
PDPT 10X55Threaded 1055M68 To 10 mm
PDPT 10X60Threaded 1060M68 To 10 mm
PDPT 10X65Threaded 1065M68 To 10 mm
PDPT 10X70Threaded 1070M68 To 10 mm
PDPT 10X75Threaded 1075M68 To 10 mm
PDPT 10X80Threaded 1080M68 To 10 mm
PDPT 10X90Threaded 1090M68 To 10 mm
PDPT 10X100Threaded 10100M68 To 10 mm
PDPT 10X110Threaded 10110M68 To 10 mm
PDPT 10X120Threaded 10120M68 To 10 mm
PDPT 10X130Threaded 10130M68 To 10 mm
PDPT 10X150Threaded 10150M68 To 10 mm
PDPT 12X25Threaded 1225M68 To 10 mm
PDPT 12X30Threaded 1230M68 To 10 mm
PDPT 12X35Threaded 1235M68 To 10 mm
PDPT 12X40Threaded 1240M68 To 10 mm
PDPT 12X45Threaded 1245M68 To 10 mm
PDPT 12X50Threaded 1250M68 To 10 mm
PDPT 12X55Threaded 1255M68 To 10 mm
PDPT 12X60Threaded 1260M68 To 10 mm
PDPT 12X65Threaded 1265M68 To 10 mm
PDPT 12X70Threaded 1270M68 To 10 mm
PDPT 12X75Threaded 1275M68 To 10 mm
PDPT 12X80Threaded 1280M68 To 10 mm
PDPT 12X90Threaded 1290M68 To 10 mm
PDPT 12X100Threaded 12100M68 To 10 mm
PDPT 12X110Threaded 12110M68 To 10 mm
PDPT 12X120Threaded 12120M68 To 10 mm
PDPT 12X130Threaded 12130M68 To 10 mm
PDPT 12X150Threaded 12150M68 To 10 mm
PDPT 16X30Threaded 1630M88 To 10 mm
PDPT 16X35Threaded 1635M88 To 10 mm
PDPT 16X40Threaded 1640M88 To 10 mm
PDPT 16X45Threaded 1645M88 To 10 mm
PDPT 16X50Threaded 1650M88 To 10 mm
PDPT 16X55Threaded 1655M88 To 10 mm
PDPT 16X60Threaded 1660M88 To 10 mm
PDPT 16X65Threaded 1665M88 To 10 mm
PDPT 16X70Threaded 1670M88 To 10 mm
PDPT 16X75Threaded 1675M88 To 10 mm
PDPT 16X80Threaded 1680M88 To 10 mm
PDPT 16X90Threaded 1690M88 To 10 mm
PDPT 16X100Threaded 16100M88 To 10 mm
PDPT 16X110Threaded 16110M88 To 10 mm
PDPT 16X120Threaded 16120M88 To 10 mm
PDPT 16X125Threaded 16125M88 To 10 mm
PDPT 16X130Threaded 16130M88 To 10 mm
PDPT 16X150Threaded 16150M88 To 10 mm
PDPT 20X40Threaded 2040M88 To 10 mm
PDPT 20X45Threaded 2045M88 To 10 mm
PDPT 20X50Threaded 2050M88 To 10 mm
PDPT 20X55Threaded 2055M88 To 10 mm
PDPT 20X60Threaded 2060M88 To 10 mm
PDPT 20X65Threaded 2065M88 To 10 mm
PDPT 20X70Threaded 2070M88 To 10 mm
PDPT 20X75Threaded 2075M88 To 10 mm
PDPT 20X80Threaded 2080M88 To 10 mm
PDPT 20X90Threaded 2090M88 To 10 mm
PDPT 20X100Threaded 20100M88 To 10 mm
PDPT 20X110Threaded 20110M88 To 10 mm
PDPT 20X120Threaded 20120M88 To 10 mm
PDPT 20X130Threaded 20130M88 To 10 mm
PDPT 20X150Threaded 20150M88 To 10 mm
PDPT 20X200Threaded 20200M88 To 10 mm
